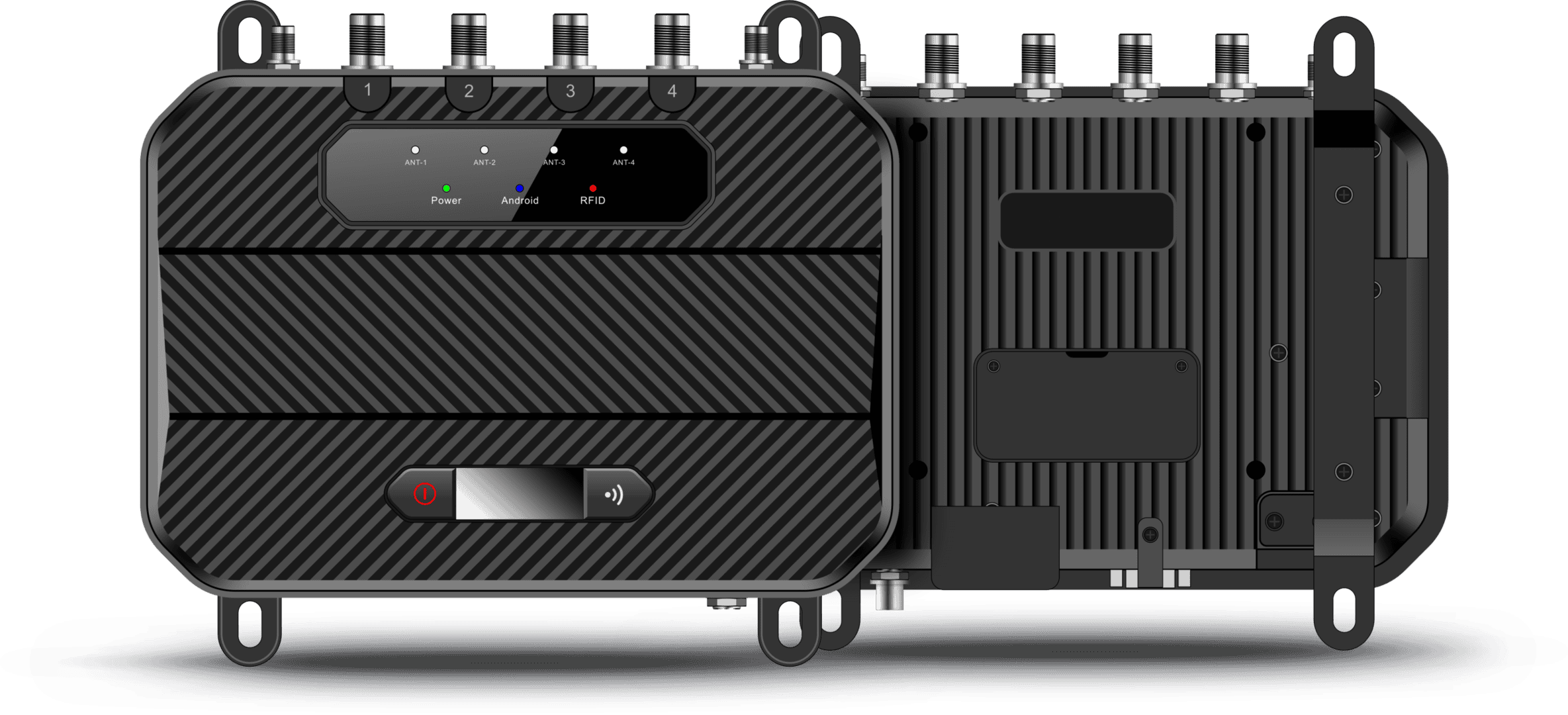

Excellent RFID Capability with Suitable Android OS & Various Interface
Features
Android 13
Flexible Deployment
Diverse Interface and Power Options
Durable Aluminum Alloy Body
Functions
Self-Developed Module Based on Impinj E Series chips
1300+ tags/sec Read Rate
Impinj Gen2X for Enhanced UHF Performance
SPECIFICATIONS

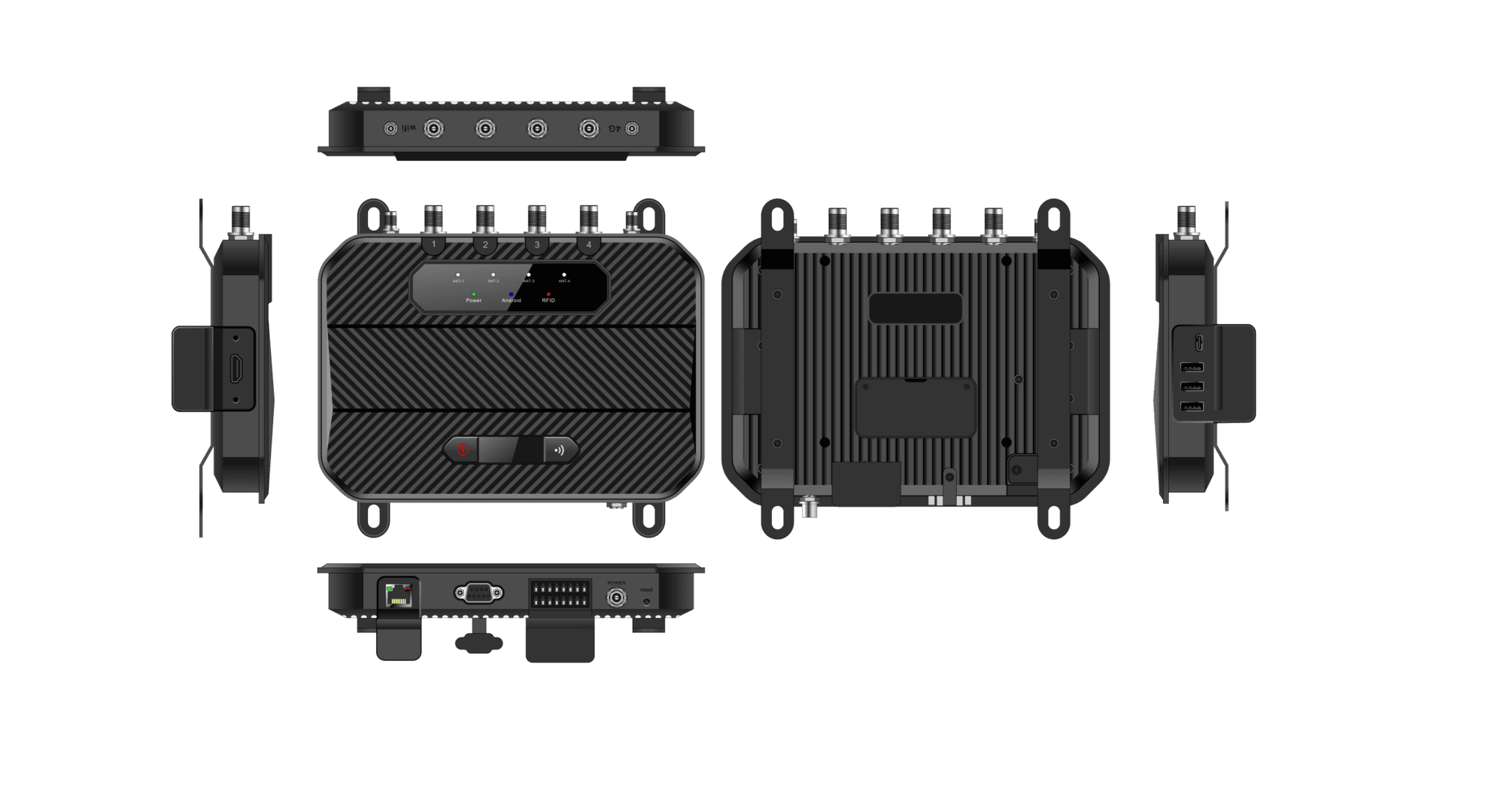

Physical Characteristics
Dimensions
214 (L) x 148 (W) x 30 (H) mm
Weight
1000g / 35.27 oz. (without antenna)
Power
DC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W)
Material
Aluminium alloy
Expansion Slot
1 slot for Nano SIM card, 1 slot for TF card
Input Voltage
DC 10V – 24V
Standby Current
< 30mA
Comm Interface
1*RS-232 , 1*RJ45, 3*USB2.0 Type A, 1*Type C, USB Host
GPIO
4 Input Optical-couplings, 4 Output Optical-couplings, isolation
Baud Rate
115200 bps
Cooling Mode
Air cooling
Work Current
1300mA +/-5% @ DC 12V Input
Display Interface
HDMI Type A, support 720P
Communication
Ethernet interface
10/100 Base-T Ethernet (RJ45)
WLAN
- Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dualband, IPV4,IPV6;
- Fast roaming: PMKID caching, 802.11r, OKC;
- Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,1 16,120,124,128,132,136,140,149,153,157,161,165),
- Depends on local regulations;
- Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAPMSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
WWAN (Europe, Asia)
- 2G: GSM/EDGE (MHz): 850/900/1800/1900
- 3G: WCDMA: B1/B2/B4/B5/B8
- 4G: TDD-LTE: B38/B40/B41
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28
WWAN (America)
- 4G: TDD-LTE: B41
FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B17/B25/
B26/B66/B71
Bluetooth
5.1
Developing Environment
Operating System
Android 13
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0 GHz
RAM+ROM
3GB + 32GB
User Environment
Operating Temp.
-25 °C to 55 °C
Storage Temp.
-40 °C to 85 °C
Humidity
5% – 95%
UHF RFID
Engine
Based on Impinj E Series chips
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Antenna
Supporting a variety of antennas, such as 6dBic, 9dBic
Output Power
1W (30dBm, support +5~+30dBm adjustable, POE/DC power)
2W Optional (33dBm, support +10~+33dBm adjustable, POE+/DC power, for Latin America, etc.)
Output Power Precision
+/- 1dB
Output Power Flatness
+/- 0.2dB
Receive Sensitivity
< -84dBm
RSSI
Supported
Ambient Temp Monitor
Supported
Fastest Read Rate
1300+ tags/sec
Antenna Detector
Supported
Antenna Port
4 channel 50Ω TNC port
