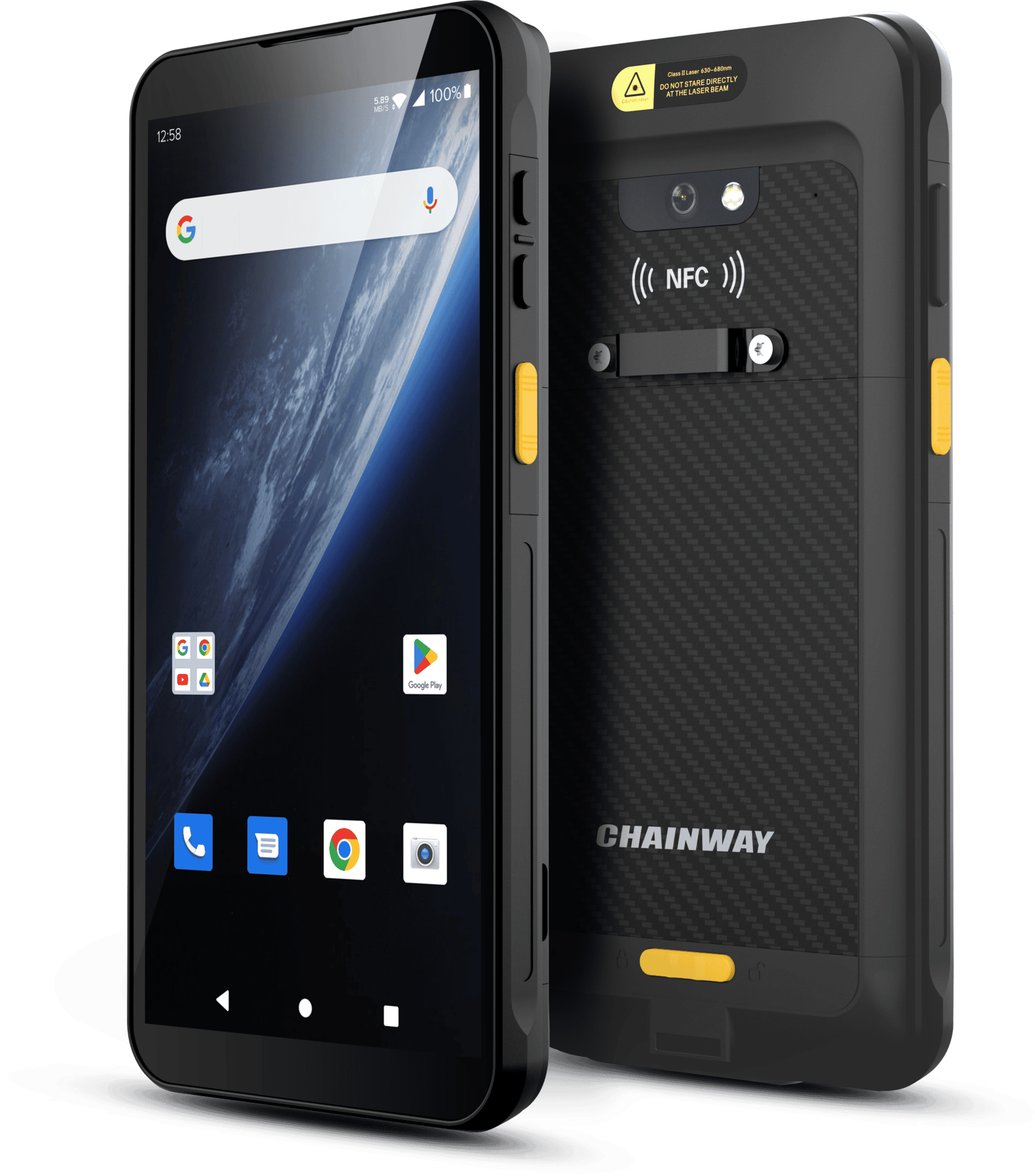

Performa Unggulan, Nilai Jangka Panjang
Fitur
High-Performance Octa-Core 2.4 GHz (4nm Technology)
Android 14 (Upgradable to Android 18+)
Wi-Fi 6E with 2x2 MIMO and Fast Roaming
5000mAh Removable Smart Battery with Hot-Swap
UFS (Universal Flash Storage)
5G WWAN, Global Frequency Bands
6-inch Display, 1440 x 720
IP67 & 1.5m / 5ft. Drop
Fungsi
Multiple Scan Engine Options Including Long Range
16MP Rear Camera with HD Front and Rear Imaging
Supports NFC
Optional RFID Capabilities
SPESIFIKASI
Fitur

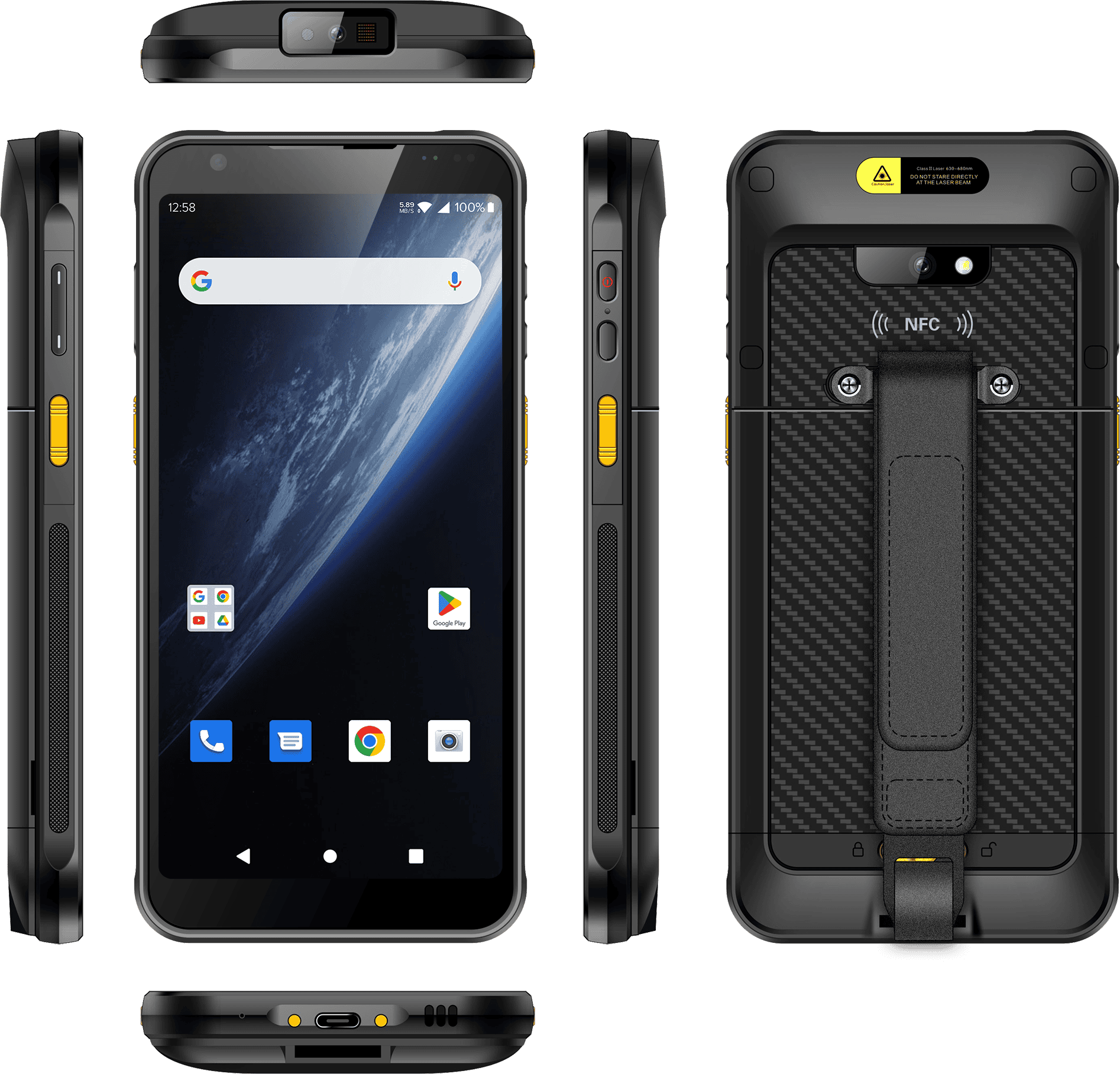

Dimensions
161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61 in.
Weight
297g / 10.48oz. (device with battery)
Display
6-inch high definition display (18:9), 1440 x 720
Battery
5000mAh removable main battery, support QC3.0 and RTC; Support Battery Management System; Hot swap battery backup
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator, vibrator
Interfaces
USB Type-C, USB 3.1, OTG
Card slot
1 for SIM card, 1 for SIM or TF card, Supports eSIM (optional)
Audio
2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver
Keypad
Power key, 2 scan keys, volume (+/-) keys, 1 multifunctional key
Sensors
G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope
Komunikasi
WLAN
- Wireless Standard: 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G tri-band, IPv4, IPv6; 2*2 MIMO antennas
- Fast Roaming: PMKID caching, 802.11r, OKC
- Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations
- Security and Encryption: WEP, WPA/WPA2-PSK (TKIP and AES), WAPI-PSK, EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc.
WWAN (Europe, Asia)
- 2G: GSM / EDGE / GPRS (850/900/1800)
- 3G: WCDMA (B1/B5/B8)
- 4G: FDD-LTE (B1/B3/B5/B7/B8/B20/B28A/B28B), TDD-LTE (B34/B38/B39/B40/B41)
- 5G: N1/N3/N5/N7/N8/N20/ N28/N38/N40/N41/N77/N78/N79
WWAN (America)
- 2G: GSM/EDGE/GPRS (850/1900)
- 3G: WCDMA (B2/B4/B5)
- 4G: FDD-LTE B2/B4/B5/B7/B12/B13/B25/B26/B28, TDD-LTE B38/B41
- 5G: N2/N3/N5/N7/N12/N13/N25/N26/ N28/N38/N41/N77/N78
Bluetooth
Bluetooth 5.2
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Lingkungan Pengembangan
Operating System
Android 14
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performa
CPU
Qualcomm Octa-core, 2.4GHz
RAM+ROM
UFS: 4GB + 64GB / 8GB + 256GB (optional)
Expansion
Supports up to 256GB TF card
(Supports Extreme Micro SD Card 512GB)
Lingkungan Pengguna
Operating Temp.
-4°F to 122°F / -20°C to +50°C
Storage Temp.
-40°F to 158°F / -40°C to +70°C
Humidity
5% RH – 95% RH non condensing
Drop Specification
- Multiple 1.5m / 4.92ft. drops to the concrete across the operating temperature range
- MIL-STD-810H (SGS Test): Multiple 1.5 m/4.92 ft. drops to concrete across the operating temperature range
Tumble Specification
1000 x 0.5m / 1.64ft. falls at room temperature
Sealing
IP67 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge Communication
Pemindaian Barcode
2D Scanner
Zebra: SE4710; SE55; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note
* This function is optional
RFID
RFID
Built-in UHF, integrated into the chipset platform
UHF RFID
Note
*For detailed specification, please check MC51 UHF datasheet
Kamera
Front Camera
5MP
Rear Camera
16MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Aksesori Opsional
Accessories
USB Cable, Adapter, Charging Cradle, Rugged Rubber Boot, etc.
*See details in accessory guide
*See details in accessory guide
DUKUNGAN & UNDUHAN
Dokumen & Panduan
Aksesoris

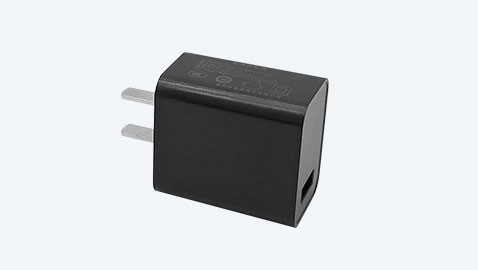

Adapter-CN
PWR-18W-CN

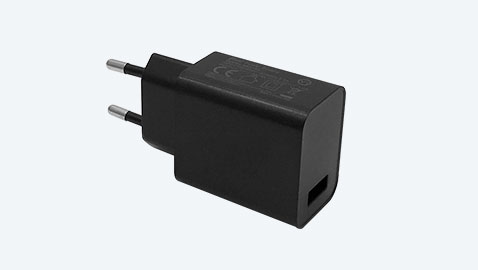

Adapter-EU
PWR-18W-EU

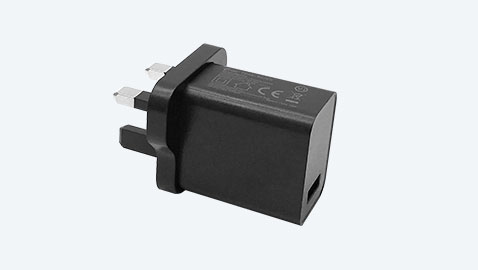

Adapter-UK
PWR-18W-UK
Adapter-US
PWR-18W-US

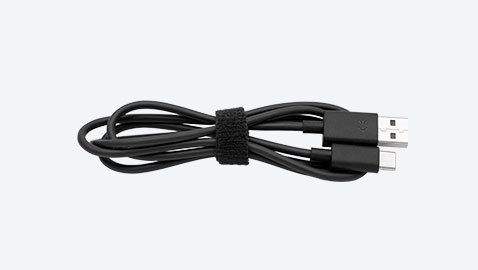

USB Cable
DC-BK-TypeC

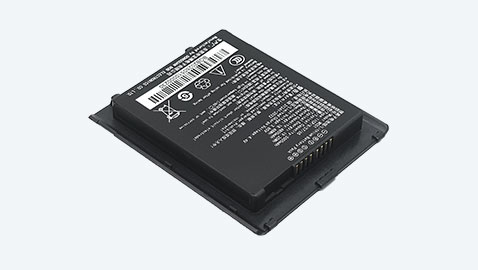

Battery
BTRY-C51-50MA

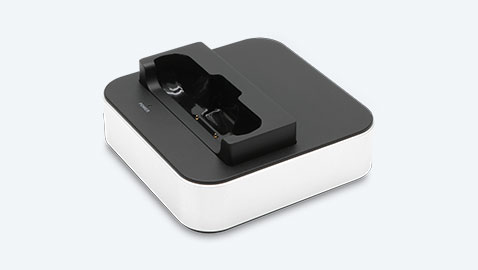

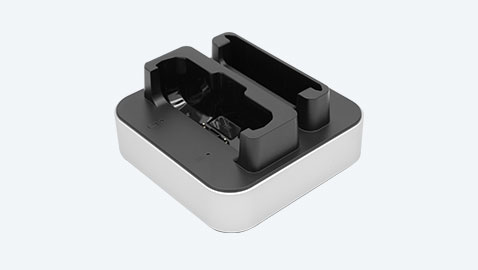

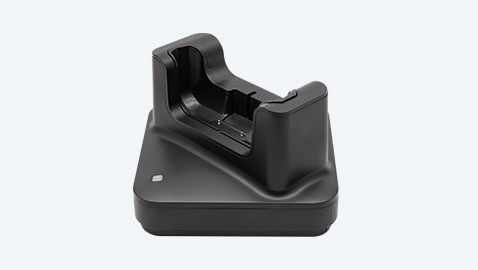

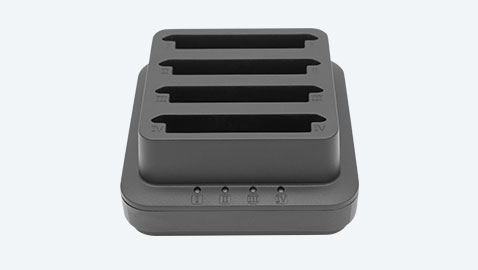

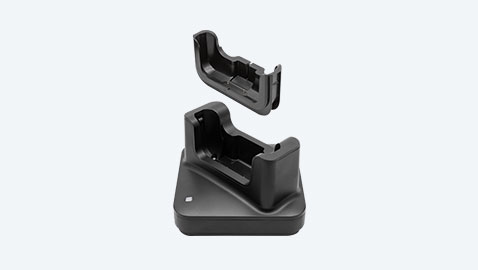

Charging Cradle (Optional)
CRD-C50-RBC
Charging Cradle (Optional)
CRD-C50-SCC
Charging Cradle (Optional)
CRD-C51-DBC
Charging Cradle (Optional)
CRD-C51-MBC

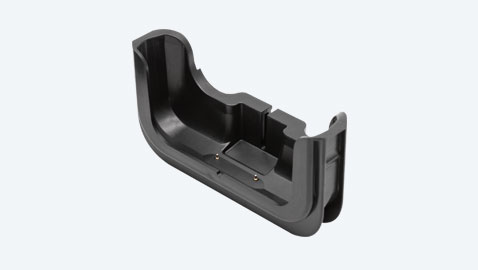

Insert for Cradle (Optional)
CRD-C50-INS
Charging Cradle (Optional)
CRD-C50-DP

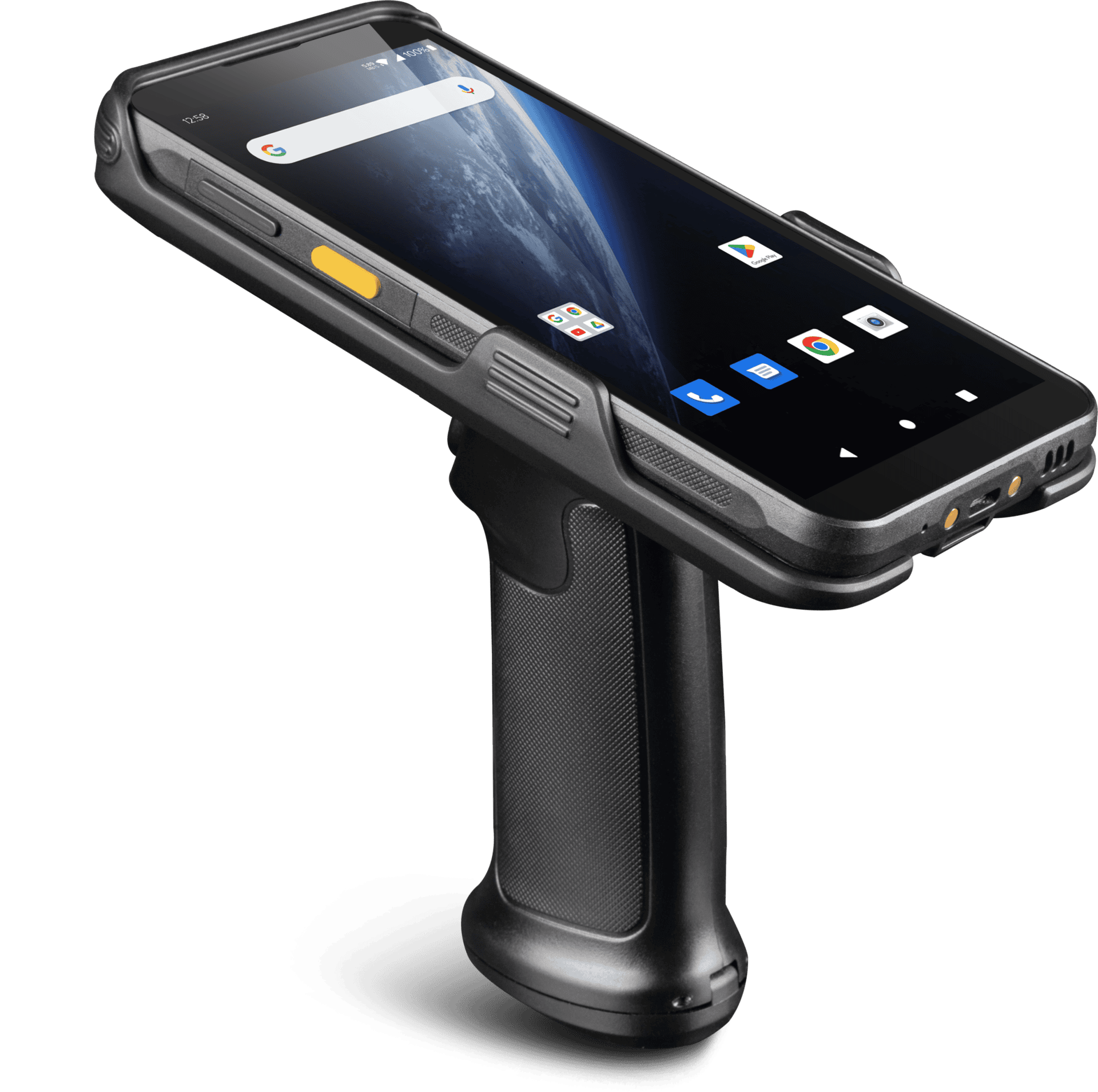

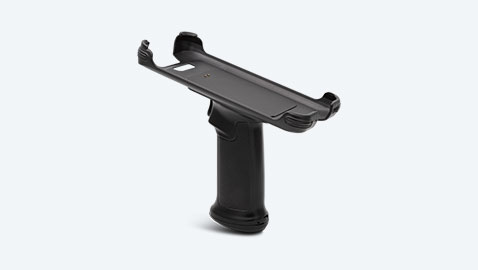

Pistol Grip (Optional)
RB-C50-PS

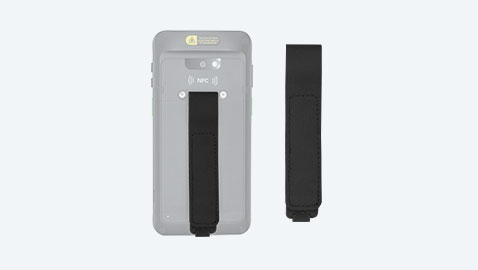

Hand Strap (Optional)
RB-C51-HS

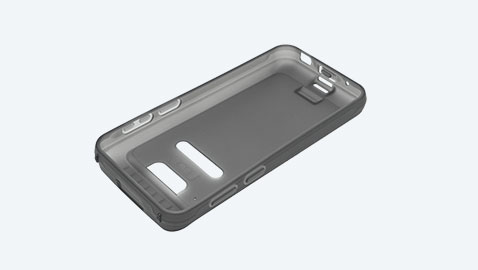

Rugged Rubber Boot (Optional)
RB-C50-RR

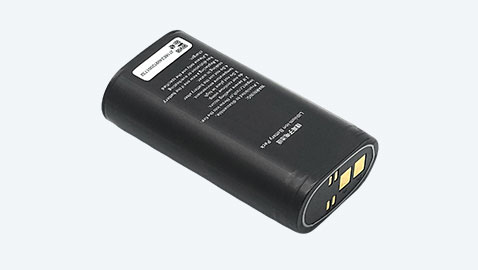

Pistol Battery (Optional)
BYT-C50-PB

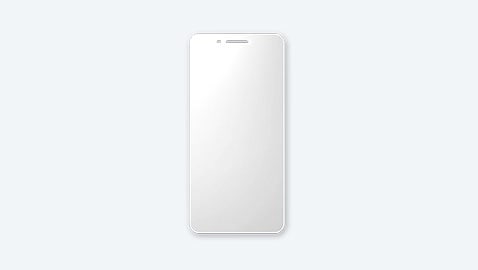

Screen Protector (Optional)
SP-C50

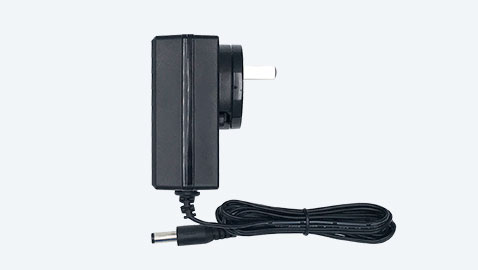

DC Adapter-CN (Optional)
DCPWR-12V2A-CN

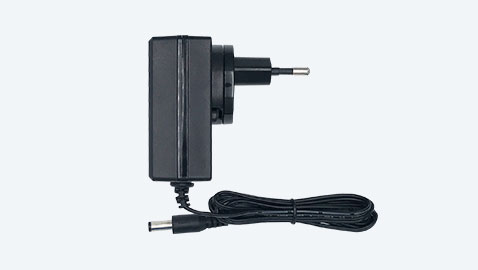

DC Adapter-EU (Optional)
DCPWR-12V2A-EU

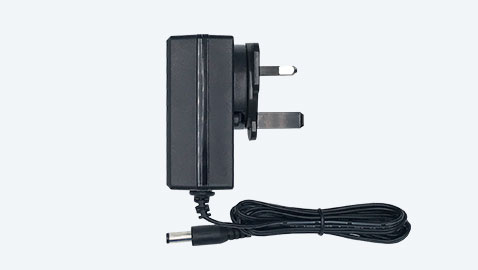

DC Adapter-UK (Optional)
DCPWR-12V2A-UK

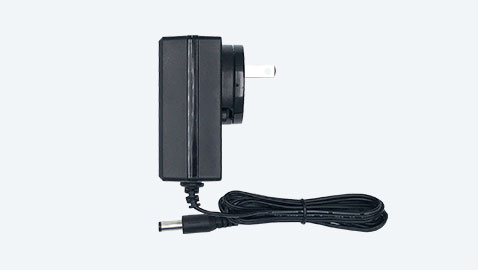

DC Adapter-US (Optional)
DCPWR-12V2A-US
