Spesifikasi Lebih Canggih. Performa Maksimal. Daya Tahan Sepanjang Hari. Pengalaman Lebih Praktis.
Fitur
High Performance Octa-core 2.2GHz

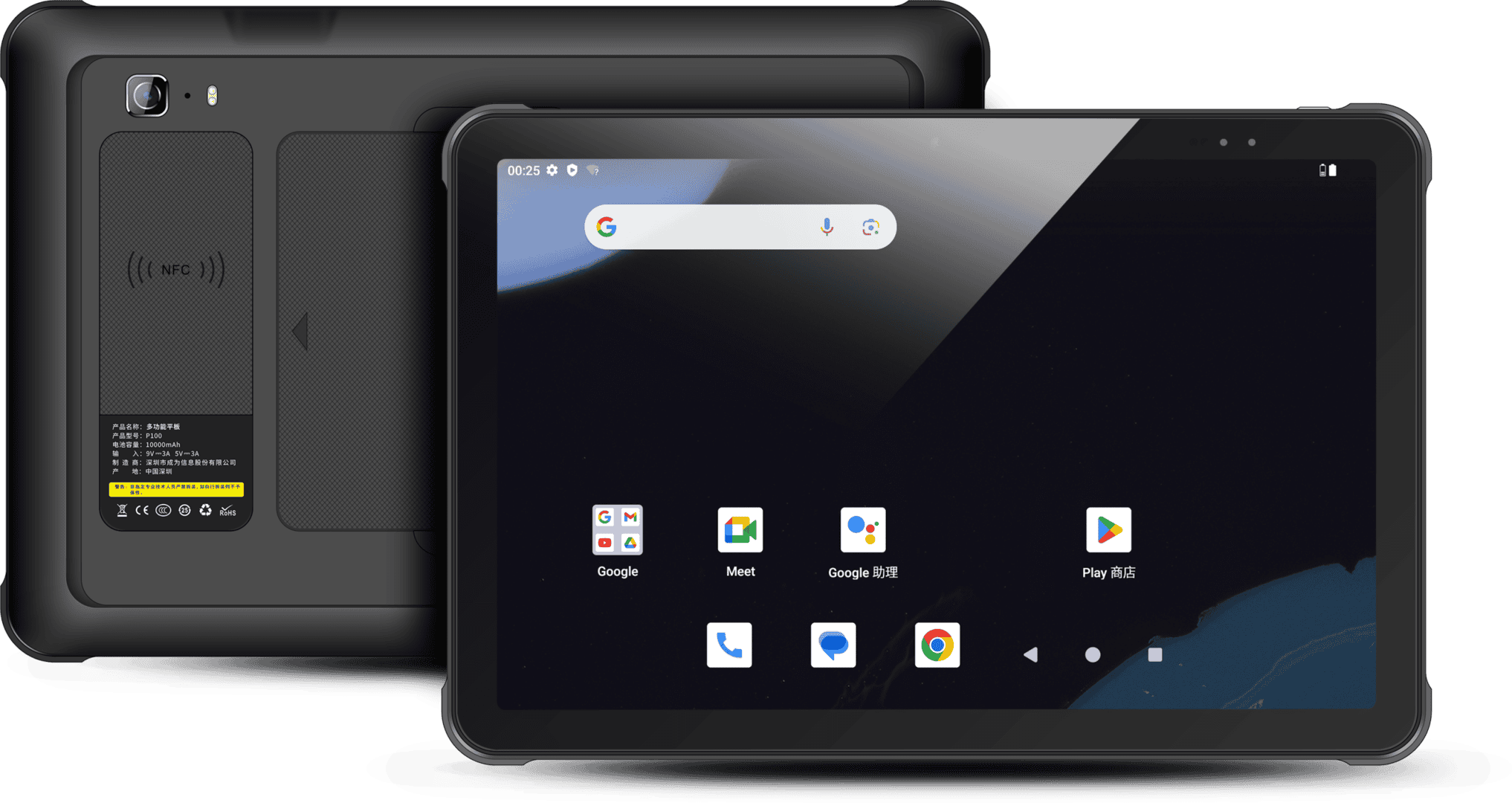

10.95-inch HD Display (1920x1200)
Android 14
10,000mAh Removable Battery with Embedded Smart Chip, Supporting Fast Charging and Hot-swapping
IP67 & 1.2m / 4ft Drop Resistance
Fungsi
Long-range Barcode Scanning
13MP Rear Camera
NFC, PSAM, and More
SPESIFIKASI
Karakteristik Fisik
Dimensions
263.5 x 175.0 x 13.5 mm / 10.37 x 6.89 x 0.53 in. (for standard version)
Weight
802g / 28.29 oz. (for standard version)

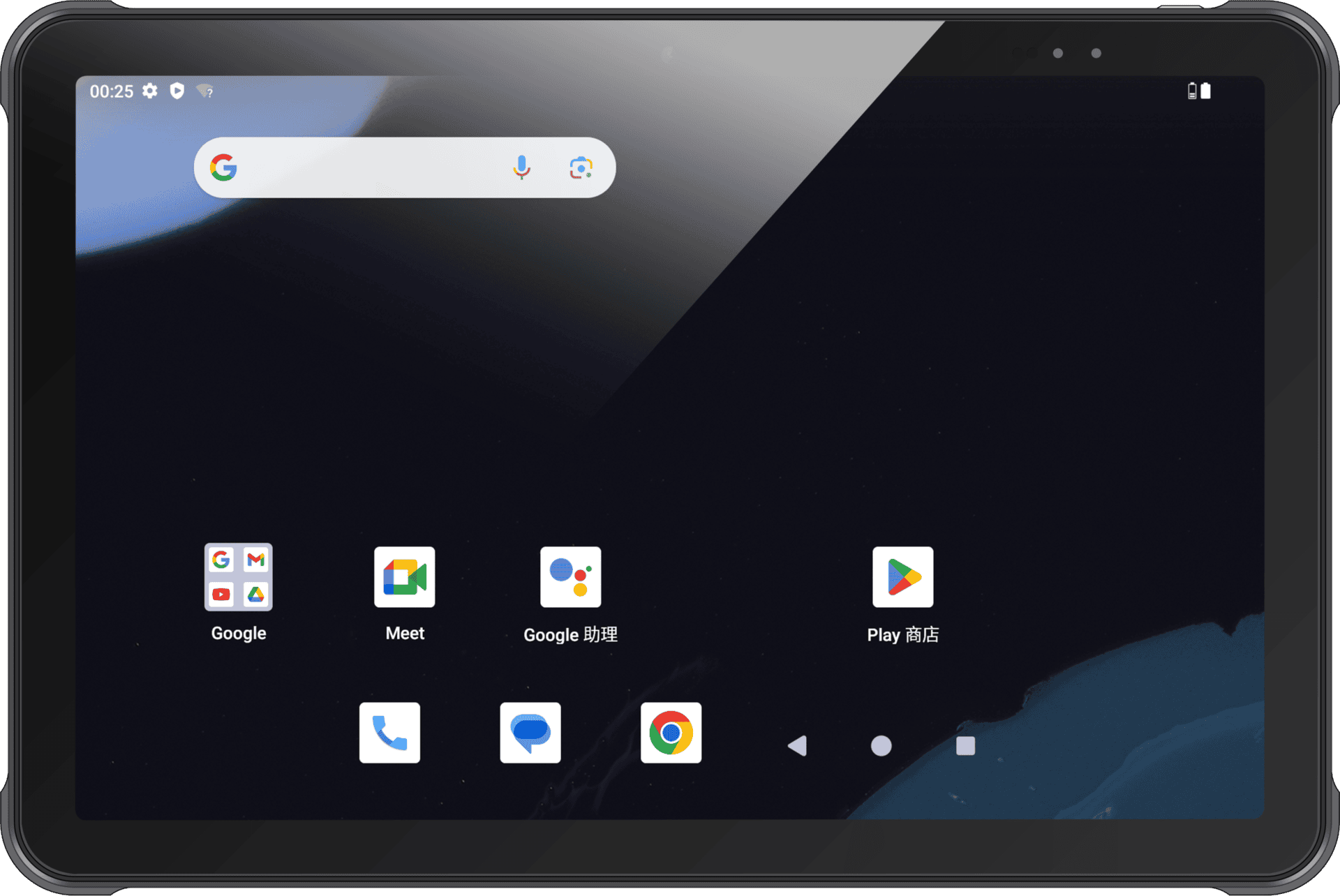

Display
10.95″, IPS, 1920×1200
Touch Panel
Corning Glass, multi-touch panel, gloves and wet hands supported
Power
10000mAh removable main battery with meter, support fast charge
Notification
Sound, LED indicator, vibration
Expansion Slot
1 slot for Nano SlM card, 1 slot for Nano1 slot for Nano SlM card, 1 slot for Nano SlM /TF card; 1 PSAM card (optional); eSIM compatibleSlM /TF card; 1 PSAM card (optional); eSIM compatible
Interfaces
USB 3.0 Type-C, OTG, support USB Type-C Digital Earphone
Audio
2 microphone, 2 speakers
Keypad

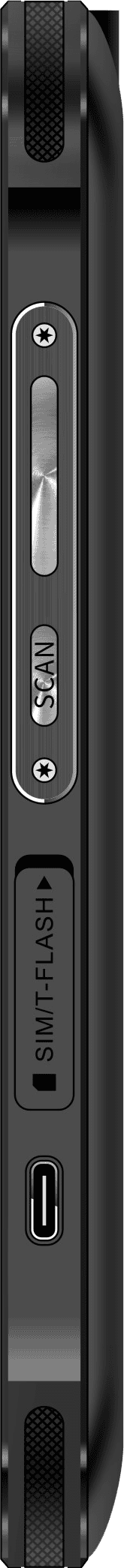

1 scan key, 1 power key, 1 volume keys (+/-), 2 virtual keys
Sensors
G_sensor, light sensor, proximity sensor, gyroscope, geomagnetic sensor
Komunikasi
WLAN
Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band;
Supports fast roaming; Wi-Fi 6E (optional)
WWAN
2G: GSM:B2/B3/B5/B8
3G: WCDMA:B1/B2/B4/B5/B8
4G: TDD LTE: B34/B38/B39/B40/B41 190M
FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/
B18/B20/B28ab
Bluetooth
Bluetooth V5.2, support Bluetooth headset
Vo-LTE
Support Vo-LTE HD video voice call Galileo
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo
Lingkungan Pengembangan
Operating System
Android 14
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performa
CPU
Octa-core 2.2 GHz
RAM+ROM
4GB + 64GB / 8GB + 256GB (optional)
Expansion
Supports up to 512 GB Micro SD card
Lingkungan Pengguna
Operating Temp.
-4°F to 122°F / -20°C to 50°C
Storage Temp.
-40°F to 158°F / -40°C to 70°C
Humidity
5% RH-95% RH (non condensing)
Drop Specification
MIL-STD-810H (SGS Test): Multiple 1.2 m / 3.94 ft. drops to concrete across the operating temperature range
Sealing
IP67 per lEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge
Pemindaian Barcode
Scan engine
Zebra SE4100, SE55; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Codell, interleaved 2 of 5, Discrete 2 of 5, chinese 2 of 5, Codabar, Msl, Rss,etc.
2D Symbologies
PDF417, MicroPDF417, composite, RsS, TLC-39Datamatrix, QR code, Micro QR code, Aztec, Maxicode;Postal Codes: Us PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KlX), etc.
Note
* This function is optional

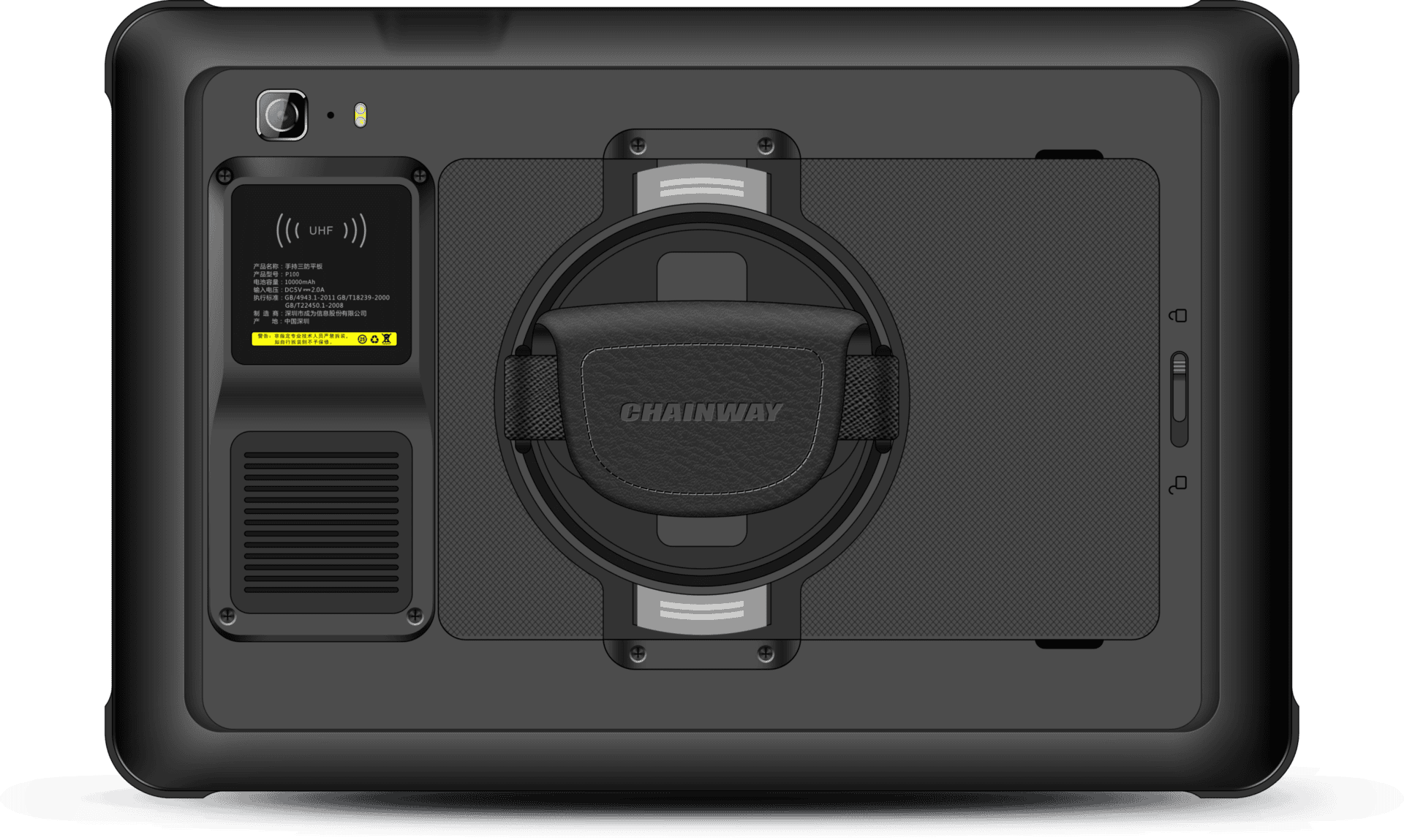

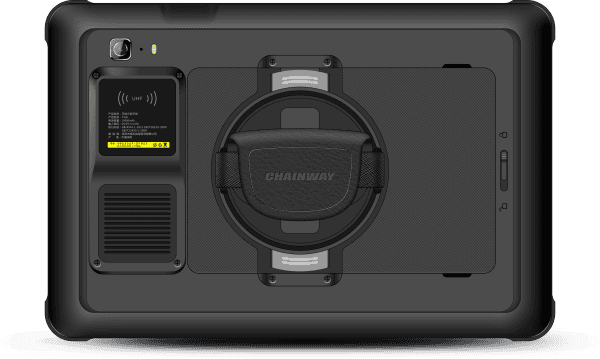

UHF RFID
Engine
Based on Impinj E Series chips
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz ( custom-design for frequency band )
Impinj Gen2X
Supported
Protocol
EPC global Class 1 Gen 2/ISO18000-63 RFID
Antenna
Circularly polarized antenna
Power
0.5W
Read Range
3m (with Impinj M750 tag)
Note
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
Note2
* UHF version does not support pistol NFC
Camera
Front Camera
5 MP
Rear Camera
13 MP Autofocus with flash

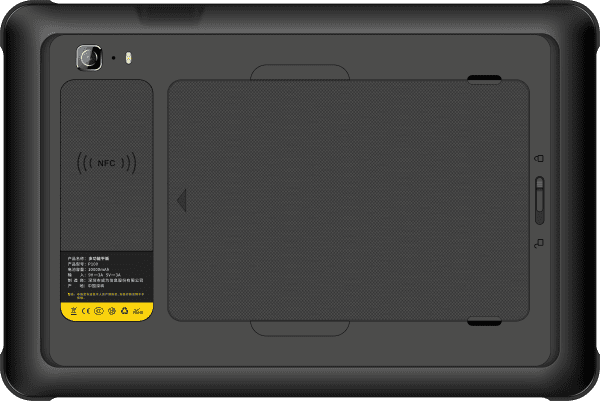

NFC
Frequency
13.56 MHz
Protocol
IS014443A/B, IS015693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (s50, s70), CPU card, NFC tags, etc.
Range
2-4 cm
Camera
Slots
1 PSAM card slot
Protocol
IS07816
Note
* This function is optional
Aksesori Opsional
Accessories
Wrist strap, shoulder strap, protective case, charging dock, etc.
Note
* See details in Accessory Guide
DUKUNGAN & UNDUHAN
Dokumen & Panduan
Accessories
Adapter-CN
PWR-C63-5V2A-CN
Adapter-EU
PWR-C63-5V2A-EU
Adapter-UK
PWR-C63-5V2A-UK
Adapter-US
PWR-C63-5V2A-US
QC-Adapter-CN
PWR-18W-CN
QC-Adapter-EU
PWR-18W-EU
QC-Adapter-UK
PWR-18W-UK
QC-Adapter-US
PWR-18W-US
USB Cable
DC-BK-TypeC
Battery
BTRY-C63-67MA

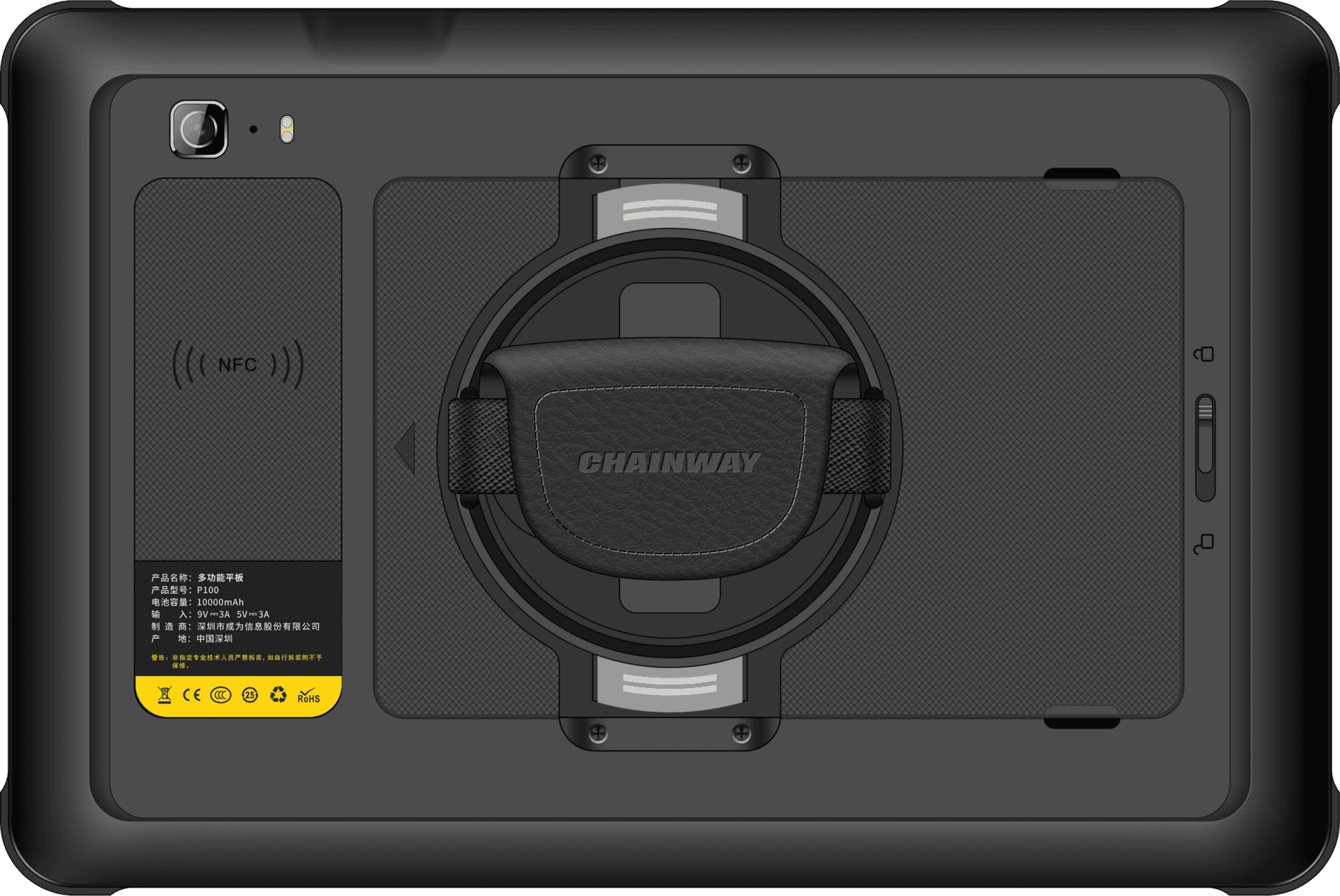

Hand Strap
RB-C63-HS
Cold Storage Battery
BTRY-C63C-56MA
Charging Cradles (Optional)
CRD-C63-PBC
Single Charging Cradle (Optional)
CRD-C63-RBC
Pistol Grip (Optional)
RB-C63-PS
Pistol Battery (Optional)
BTY-C63-PB
Pistol Wrist Strap (Optional)
RB-C63-PHS
Screen Protector (Optional)
SP-C63
Rugged Rubber Boot (Optional)
RB-C63-RRP
DC Adapter-CN (Optional)
DCPWR-12V2A-CN
DC Adapter-UK (Optional)
DCPWR-12V2A-UK
DC Adapter-EU (Optional)
DCPWR-12V2A-EU
DC Adapter-US (Optional)
DCPWR-12V2A-US
4-slots Charging Cradle Set (Optional)
CRD-MCB
