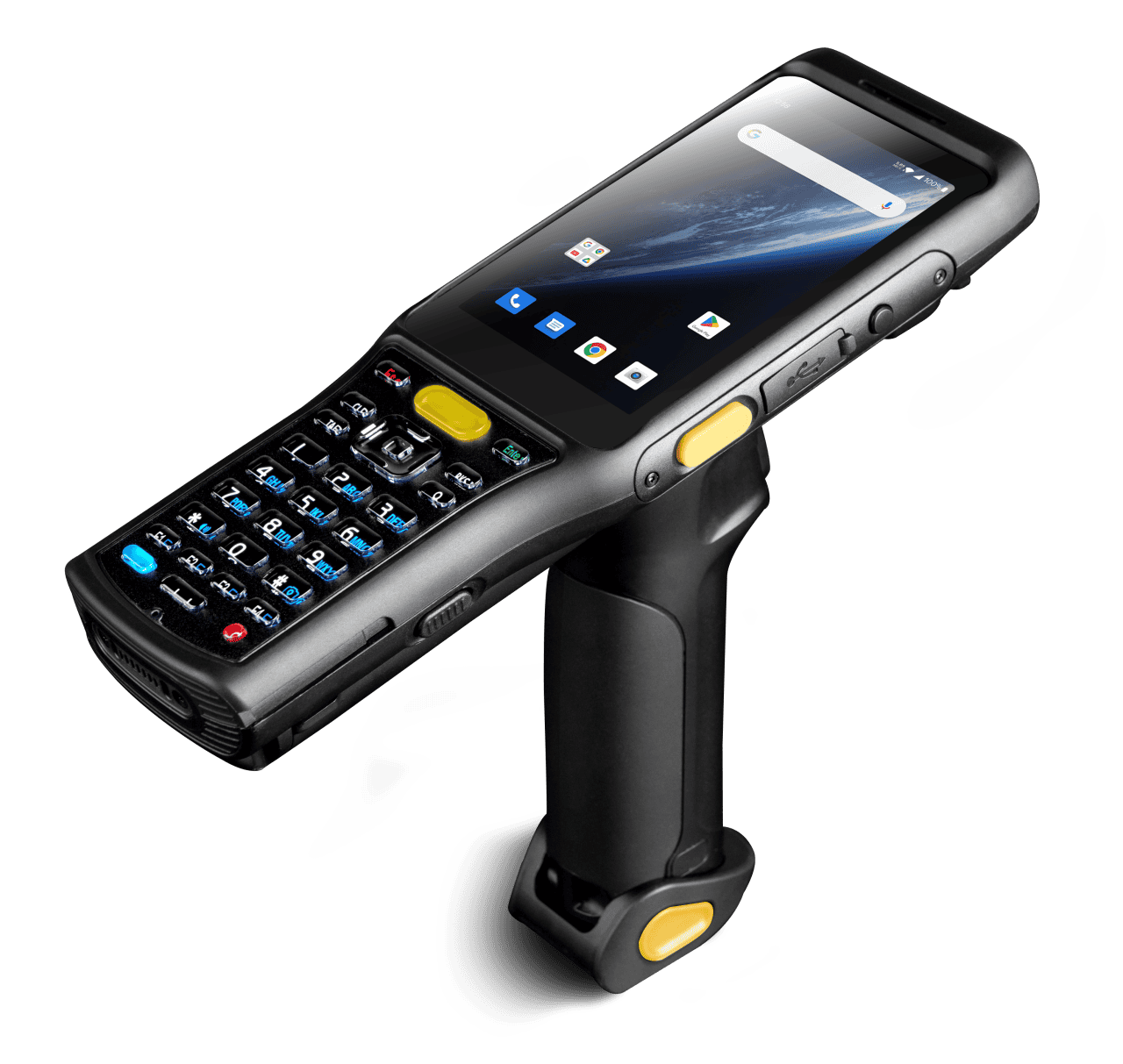

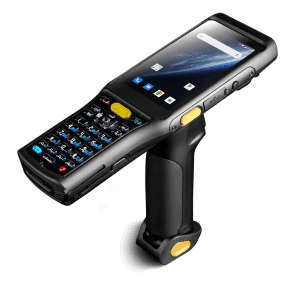

C63

Mobile Barcode Device (Android 13)

Perangkat Barkode Industrial dengan tombol keypad dan jangkauan hingga 10 meter

Chainway C63 dirancang untuk operasional dengan kebutuhan input data yang tinggi. Dilengkapi dengan layar 4” tersedia pilihan keypad 27/37/47 tombol untuk fleksibilitas penggunaan sesuai workflow. Dilengkapi opsi long-range scanner untuk membaca barcode dari jarak dekat hingga jarak jauh dengan berbagai posisi “Multi-Angle”, serta dual battery dengan hot-swap untuk memastikan perangkat tetap aktif tanpa downtime.

Tangguh dan andal, C63 siap mendukung operasional yang berjalan nonstop. Chainway C63 juga memiliki varian perangkat yang mendukung operasional “cold storage/frozen” dan opsi memori hingga 6Gb.

The Flagship Keypad Handheld For Next-Level Industrial Data Capture.

Features

Octa-Core 2.0GHz, UFS

Wi-Fi 6 Ready with Fast Roaming

Pop-Out Battery Design for Faster, Simpler Power Replacement

27/37/47 Key Options

6700mAh Main + 5000mAh Handle Battery (Optional), Hot-Swap Support

IP67 & 1.5m / 4.92ft. Drop

Functions

Multiple Scan Engine Options, Including Extended-Range Scanning

Cold Storage Version Available

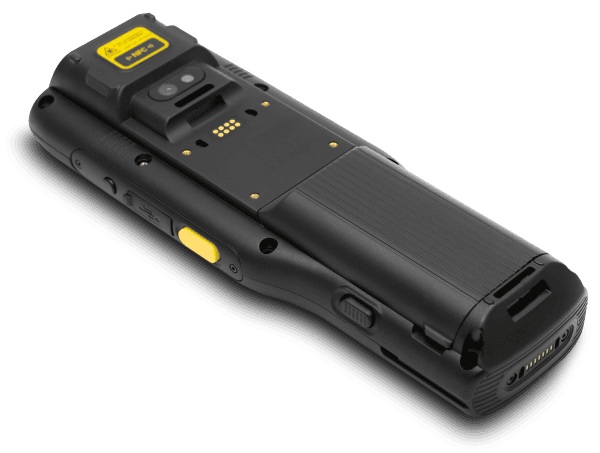

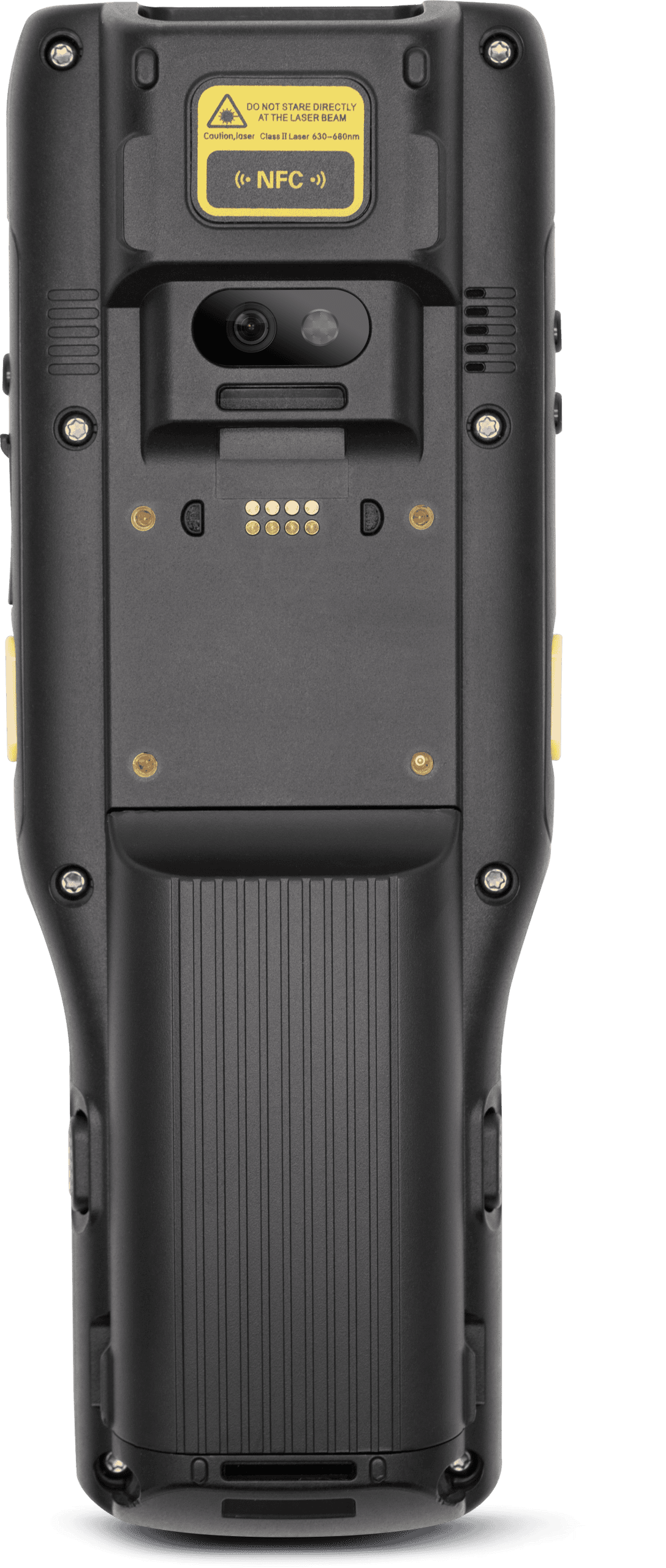

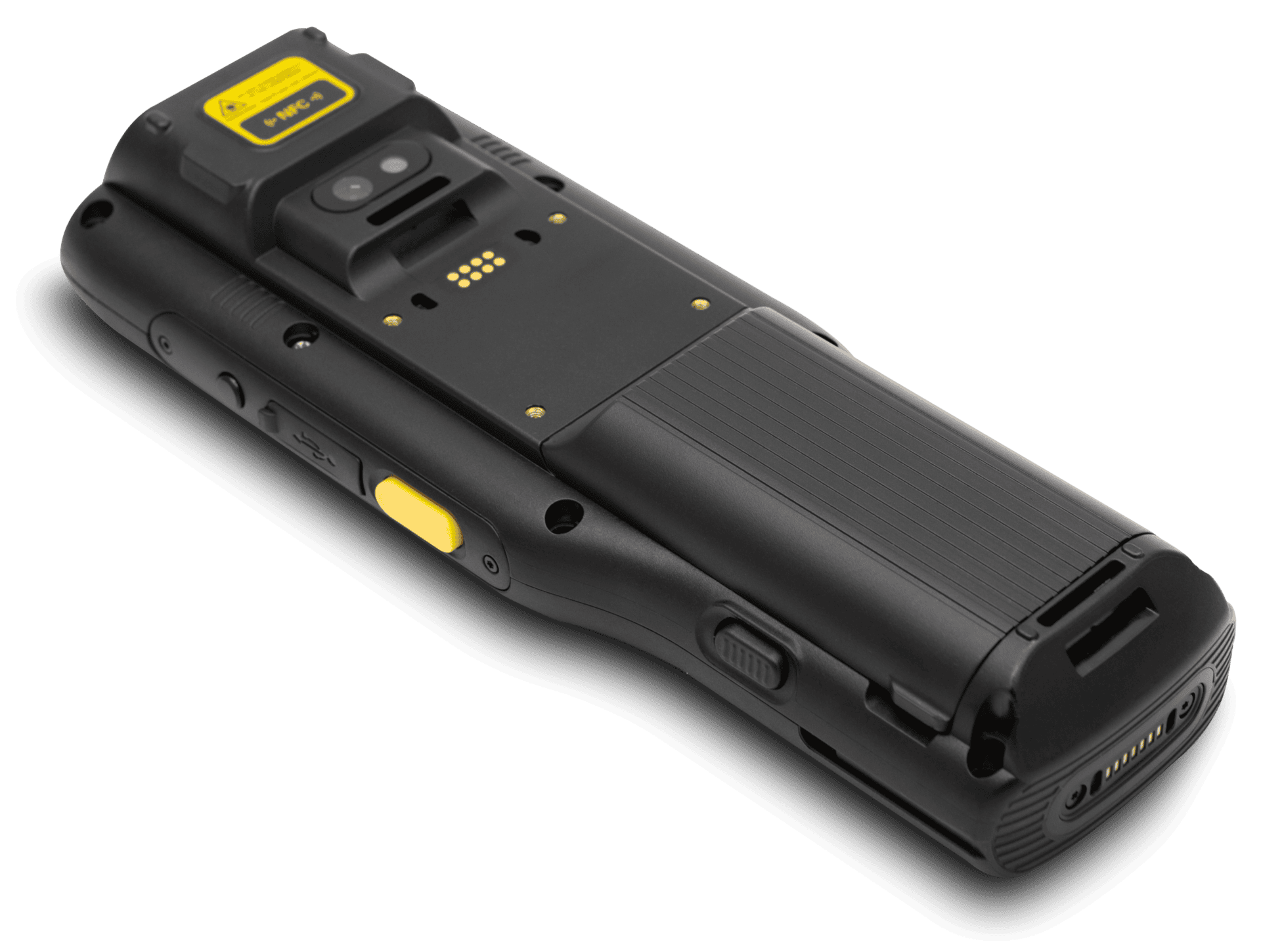

NFC and Rear High-Resolution Camera

SPECIFICATIONS

Physical Characteristics

Dimensions

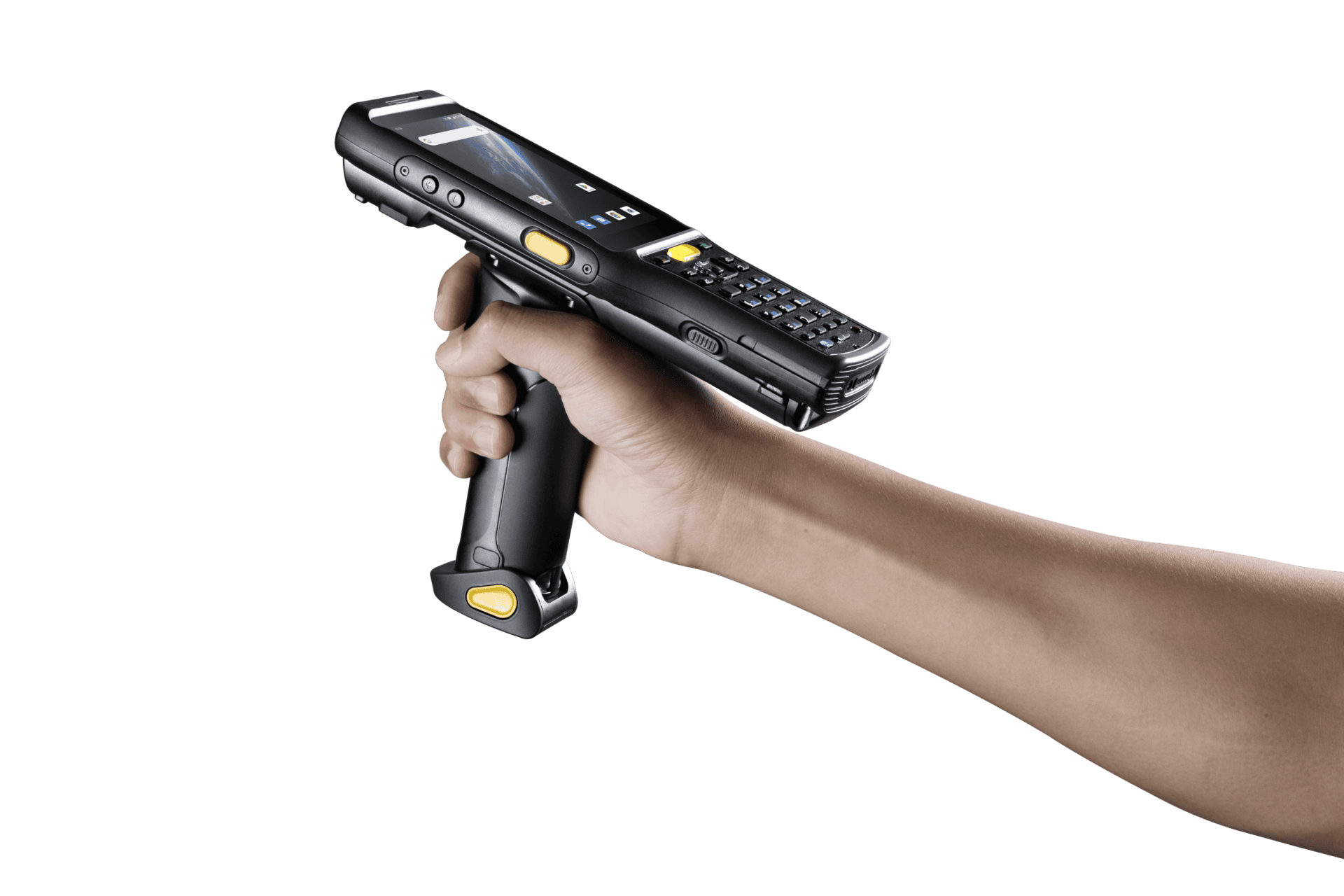

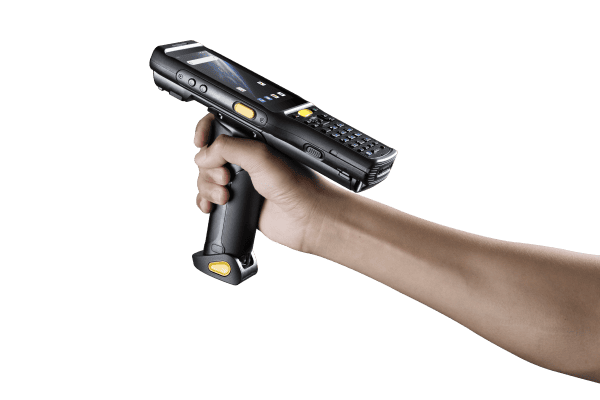

203.50 x 72.8 x 160 mm / 8.01 x 2.87 x 6.30in. (with pistol)
203.50 x 72.8 x 34.8 mm / 8.01 x 2.87 x 1.37in. (without pistol)

Weight

385g / 13.58oz. (device with battery)
571g / 20.14oz. (device with pistol and battery)

Display

4-inch high definition display, 800*480

Battery

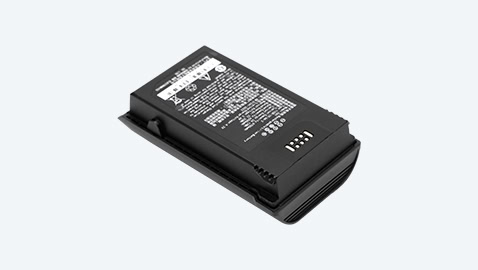

Battery: 6700 mAh removable main battery, 5000 mAh optional pistol battery, supports QC3.0 and RTC; built-in 50mAh backup battery, pistol battery with meter; supports battery hot swap, improving reliability and ensuring user data security
Standby: up to 680 hours (only main battery; WiFi: up to 560h; 4G: up to 560h)
Continuous Use: over 12 hours (depending on user environment)

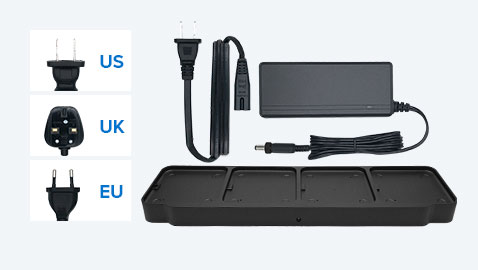

Charging Time: 3.5 hours (charge device by standard adaptor and USB cable)

Touch Panel

Multi-touch panel, gloves and wet hands supported

Notification

Sound, LED indicator, vibrator

Interfaces

USB Type-C, USB 3.1, OTG, extended thimble

Card slot

1 slot for Micro SIM card, 1 slot for TF card

Audio

1 microphone for noise cancellation; 1 speaker; 1 receiver

Keypad

Main keyboard (Optional) : 27 keys / 37 keys / 47 keys;
Side keys: 2 scan keys + 2 volume keys + 1 user-defined key

Sensors

Accelerometer sensor, light sensor, proximity sensor, gravity sensor

Communication

WLAN

Wireless Standard: 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPv4, IPv6, 5G PA
Fast Roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK (TKIP and AES), WAPI-PSK, EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, etc.

WWAN

2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0, WCDMA: 850/900/1700/1900/2100 MHz, TD-SCDMA: A/F (B34/B39)
4G: B1/B2/B3/B4/B5/B7/B8/B12/B13/ B17/B20/B28/B38/B39/B40/B41

*C63 models being manufactured for Turkish Market do not include WWAN and SIM slot option.

Bluetooth

Bluetooth 5.1

Vo-LTE

Support Vo-LTE HD video voice call

GNSS

Support Vo-LTE HD video voice call

Developing Environment

Operating System

Android 13

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.0 GHz

RAM+ROM

UFS, 4GB + 64GB

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp.

-4℉to 122℉ / -20℃ to 50℃

Storage Temp.

-40℉ to 158℉ / -40℃ to 70℃

Humidity

5% RH to 95% RH (non condensing)

Drop Specification

Multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP67 per IEC sealing specifications

ESD

±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanning

2D Scanner

Zebra: SE4710/SE4750/SE4850/SE55/SE58 Honeywell: N6603/N6703/N6803FR; CM60

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

* This function is optional
