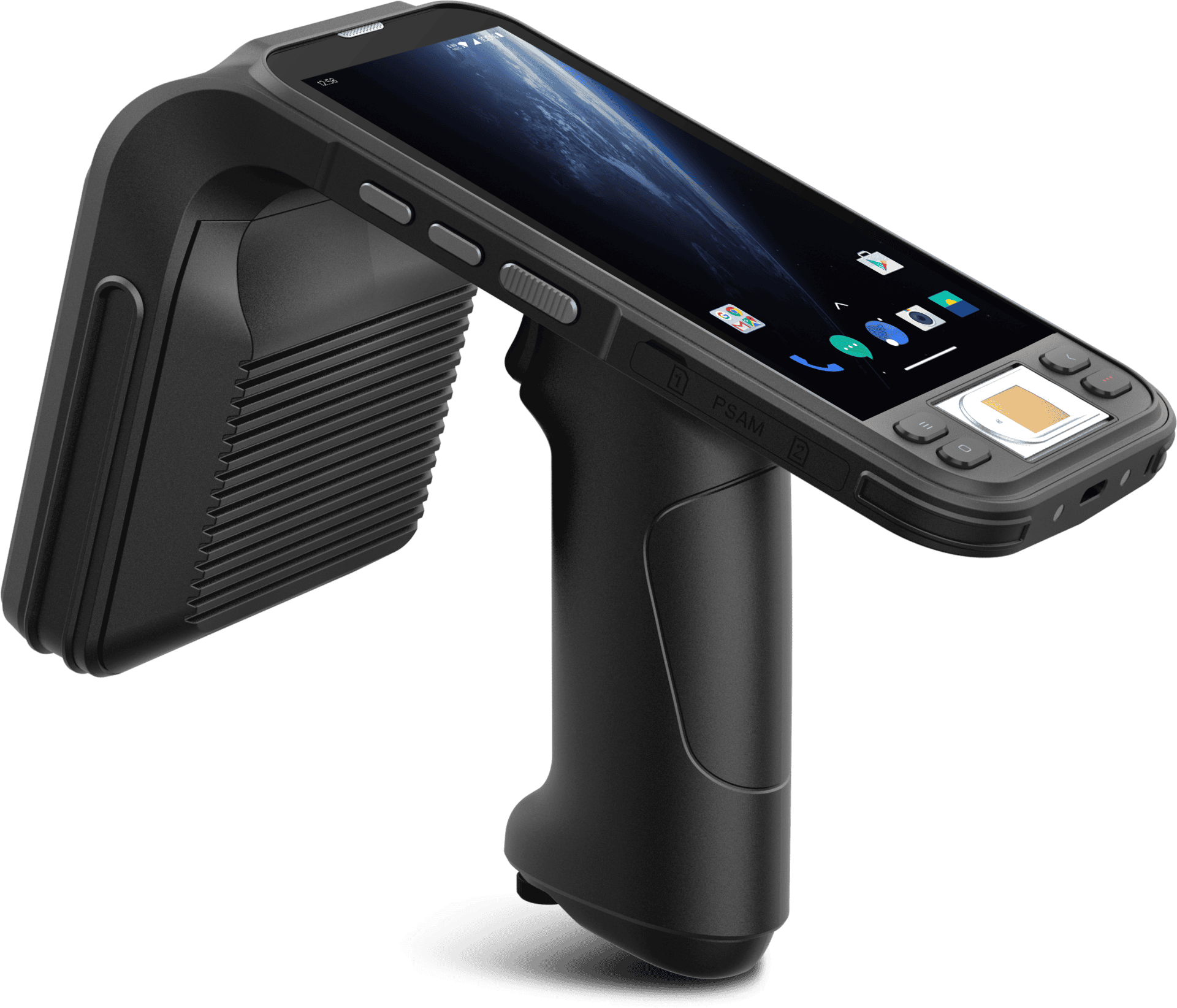

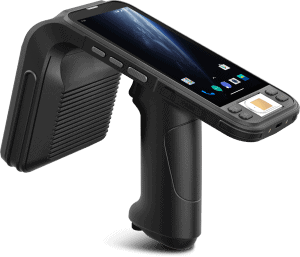

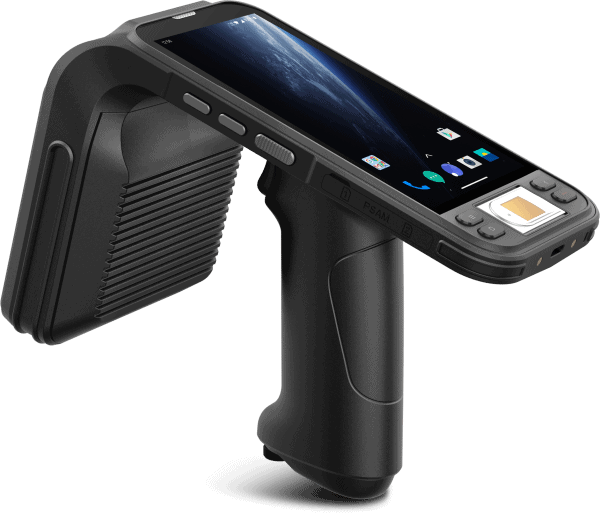

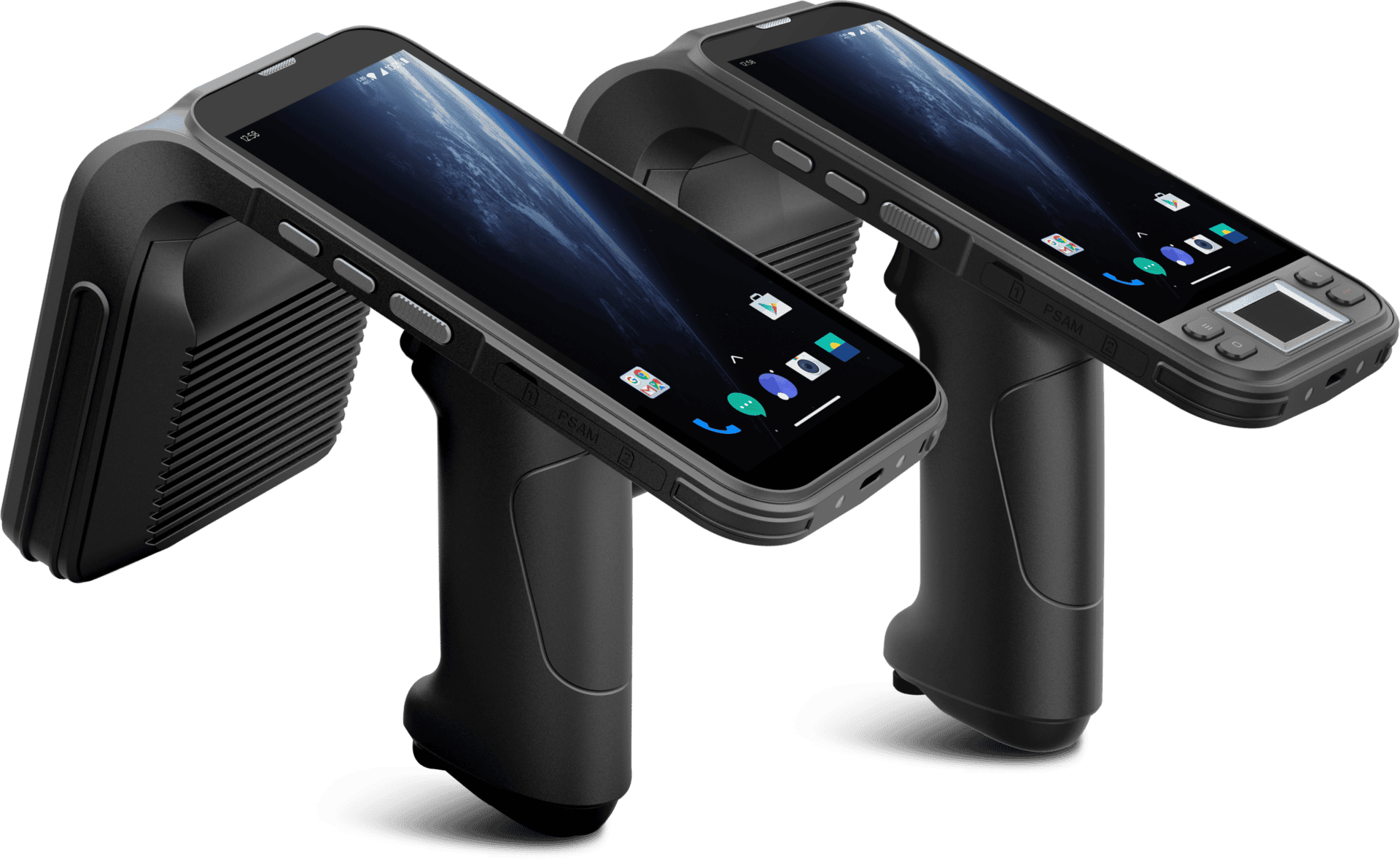

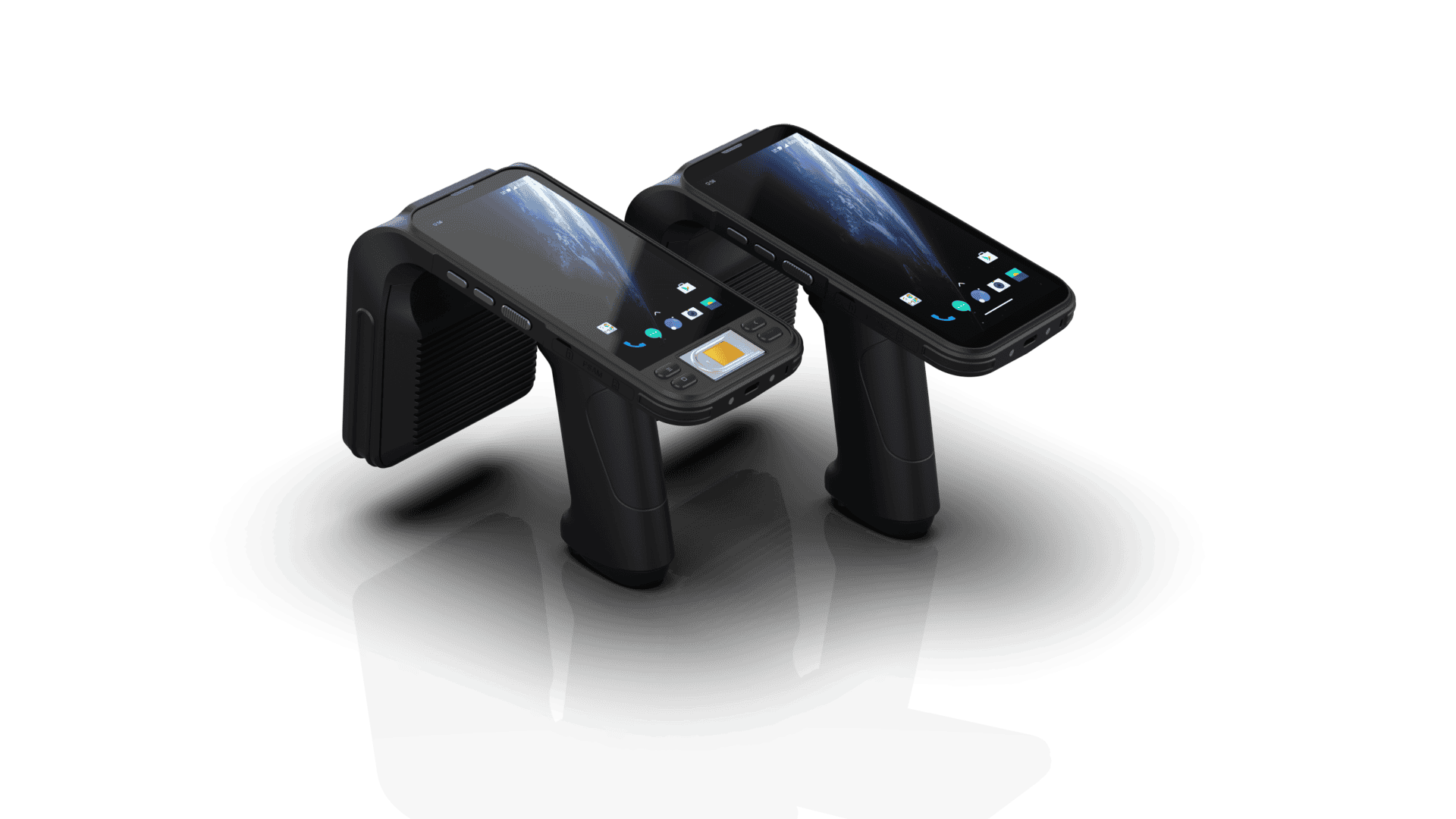

Stronger UHF Performance, Higher Security and Reliability
Features

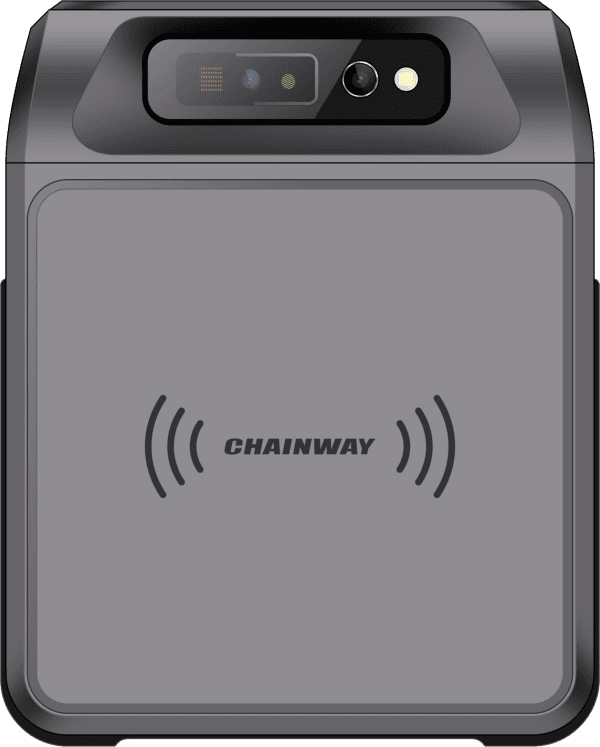

Integrated UHF Design

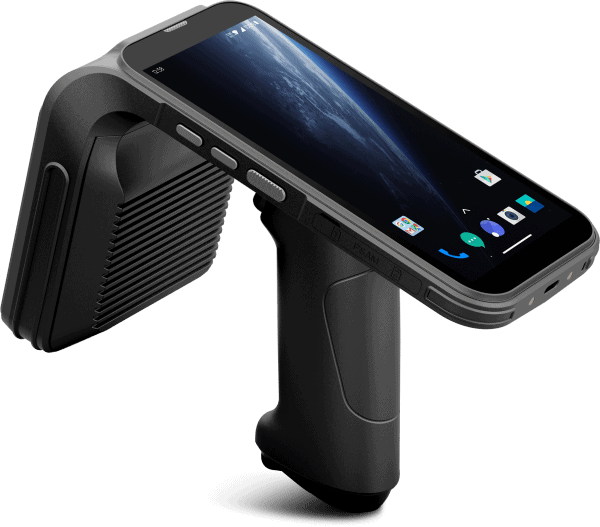

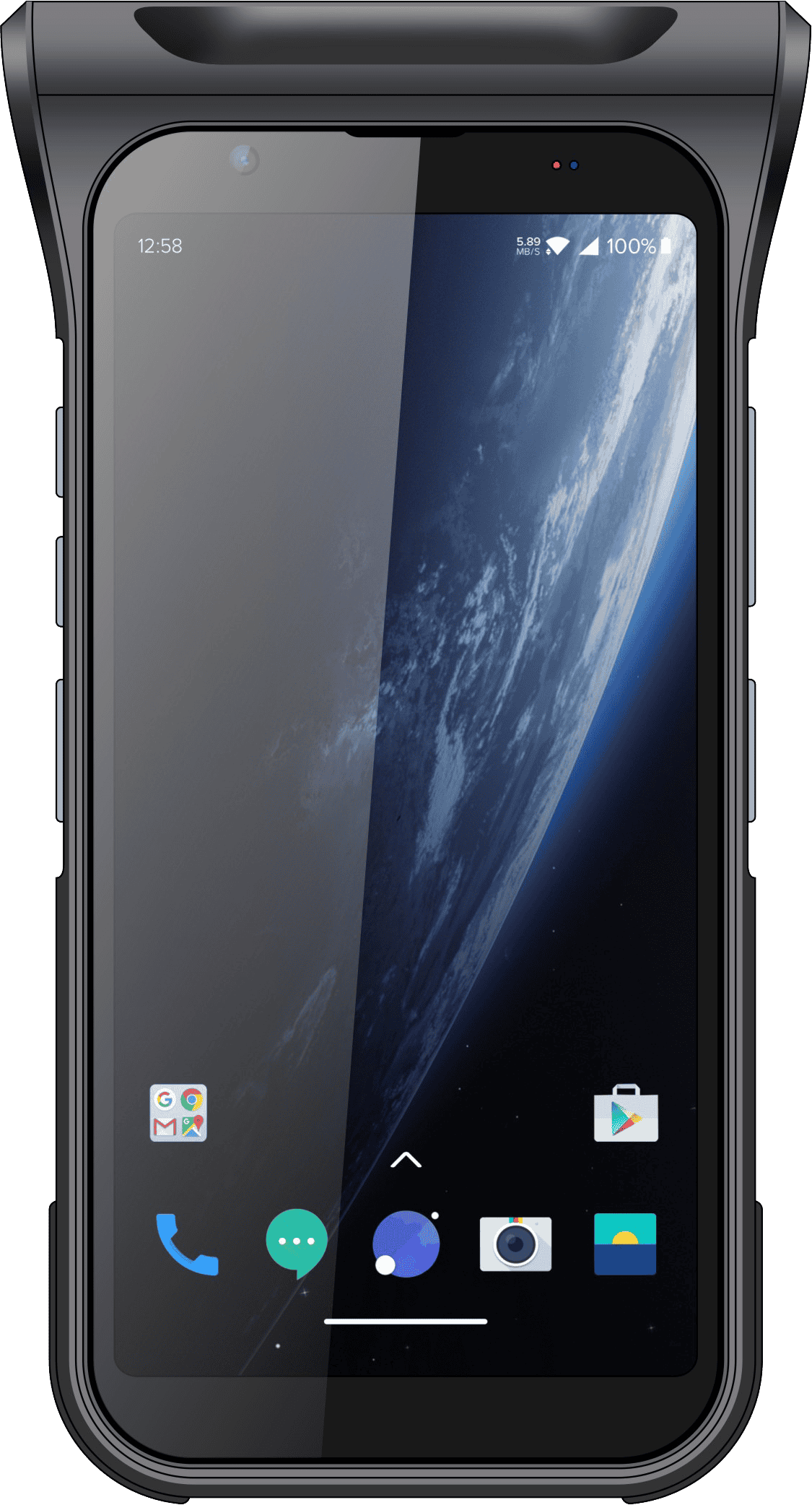

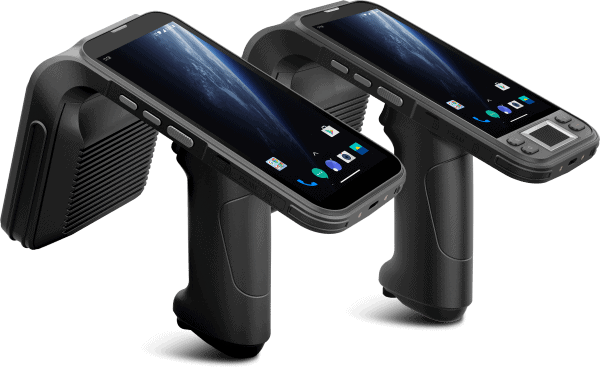

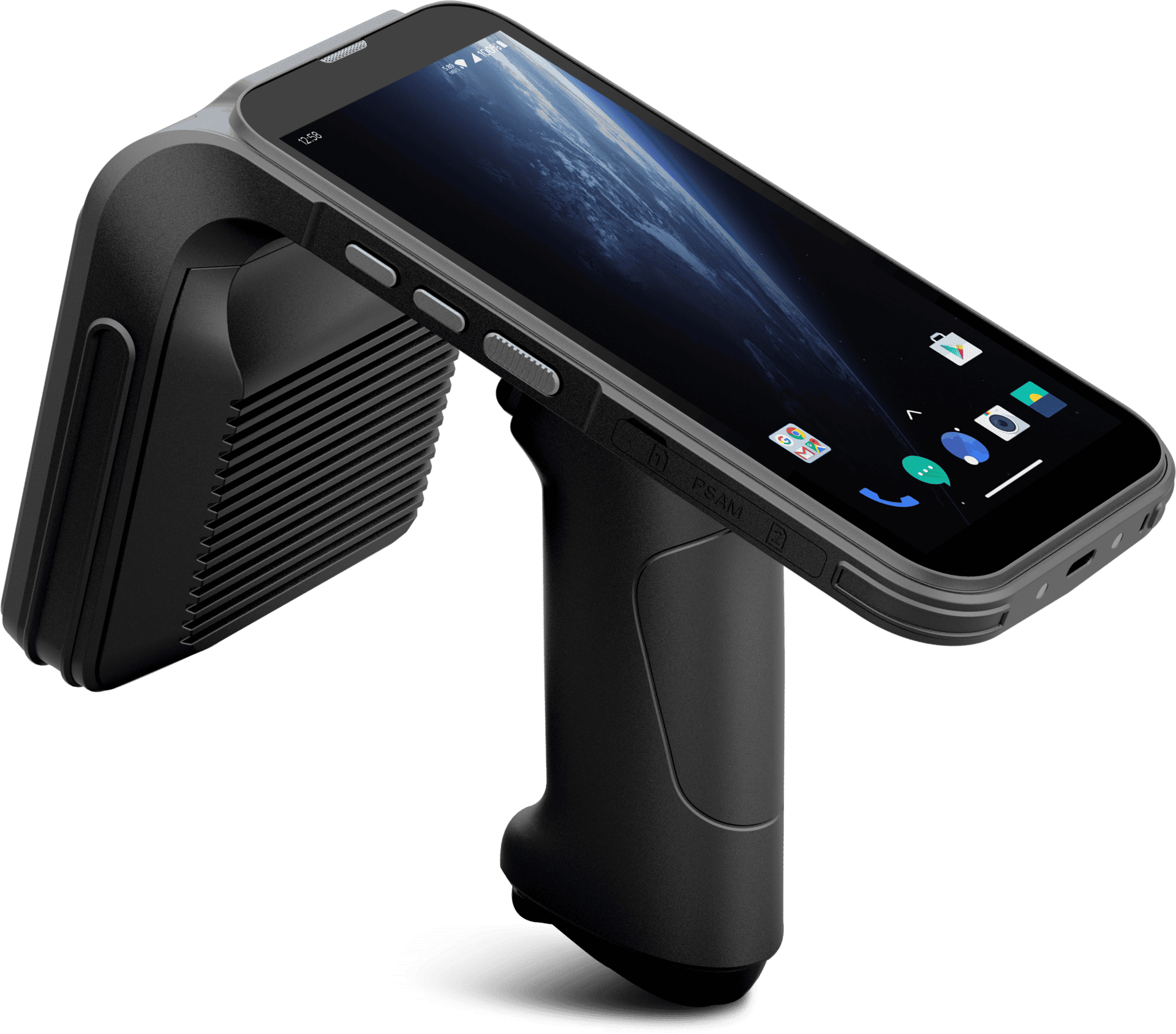

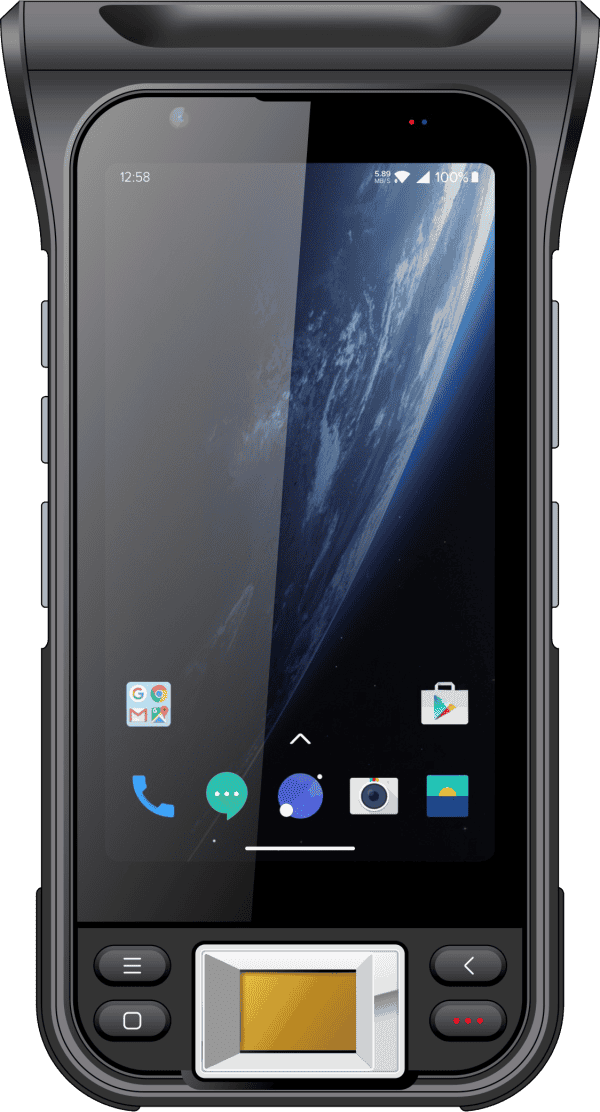

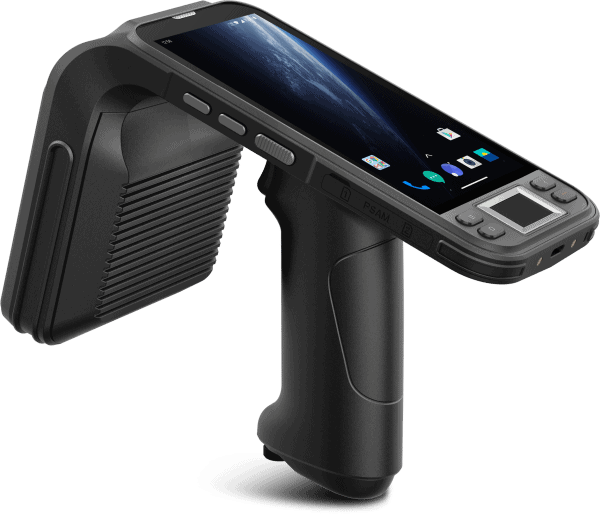

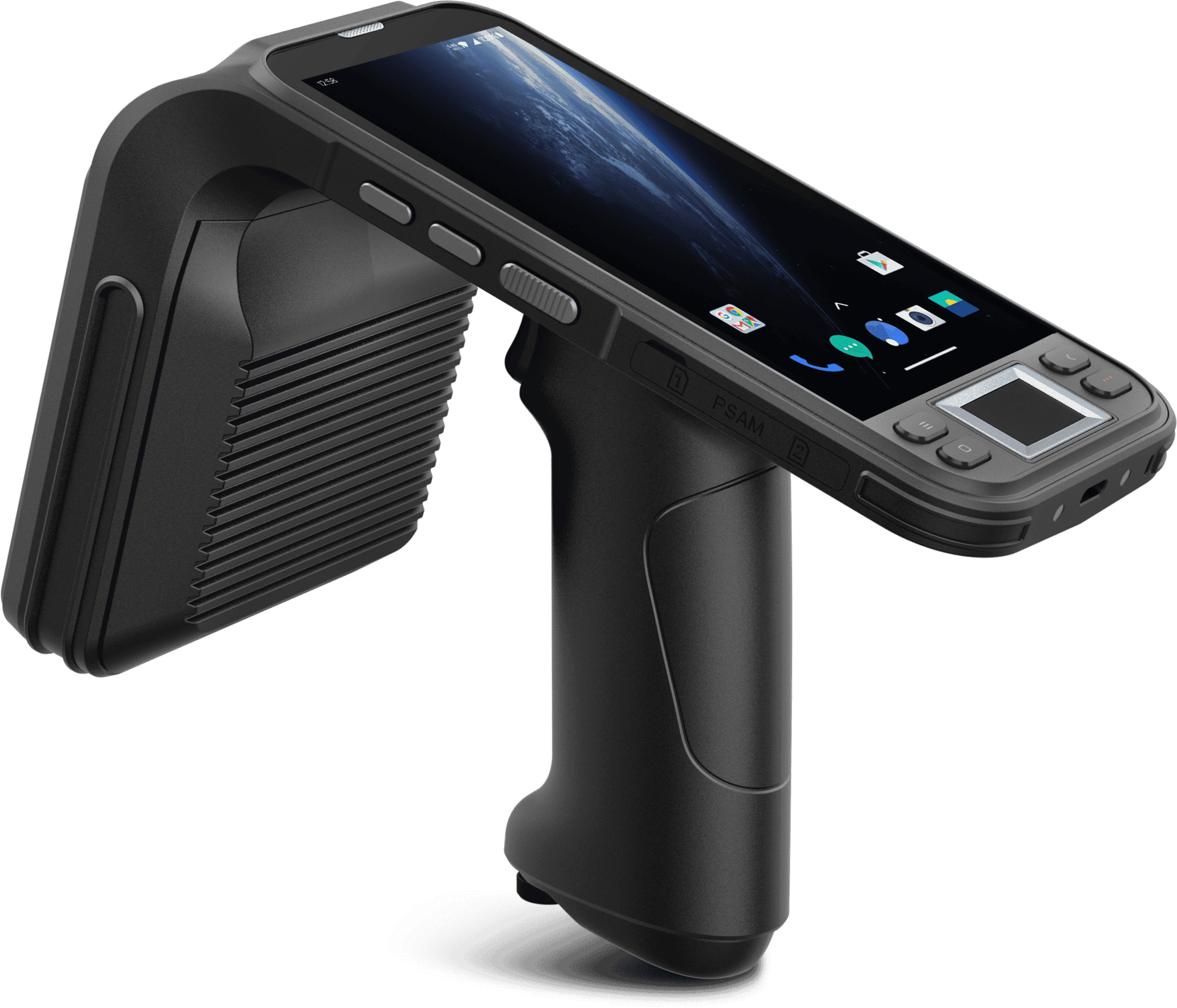

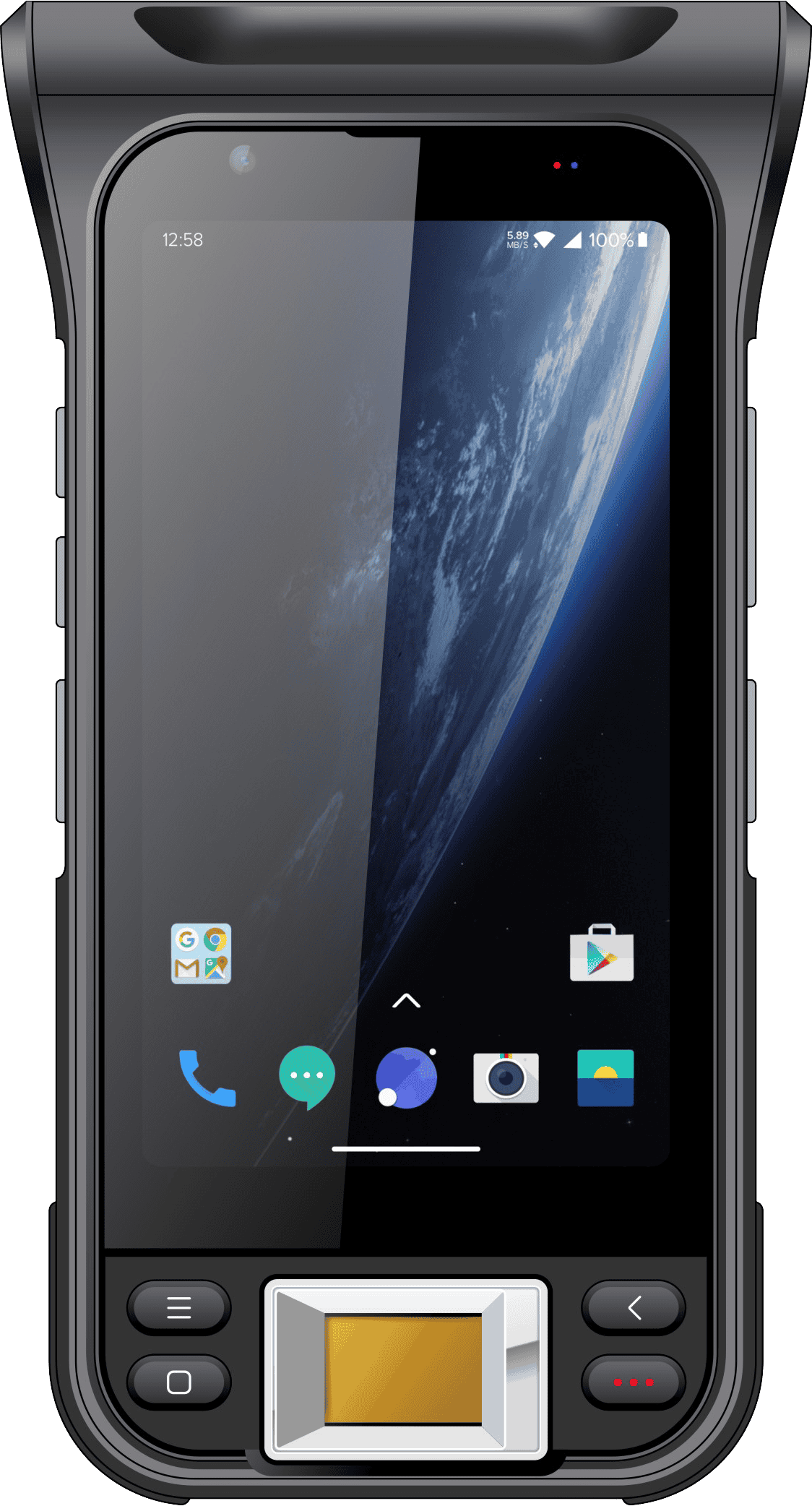

5" Fingerprint & 6" Large Screen Options
IP65 & 1.5m / 5ft. Drop
Octa-Core 2.3GHz

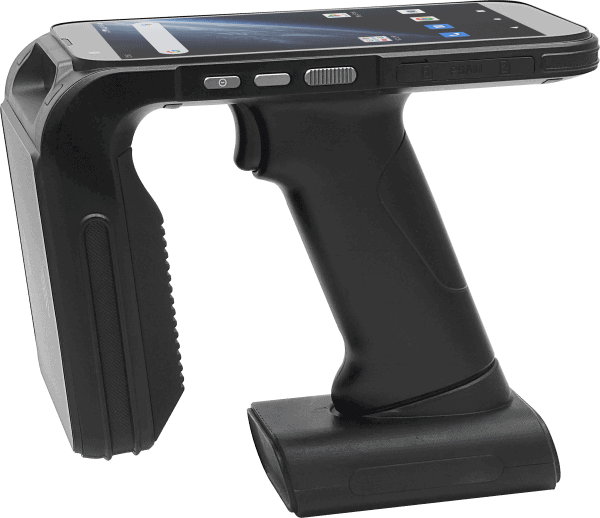

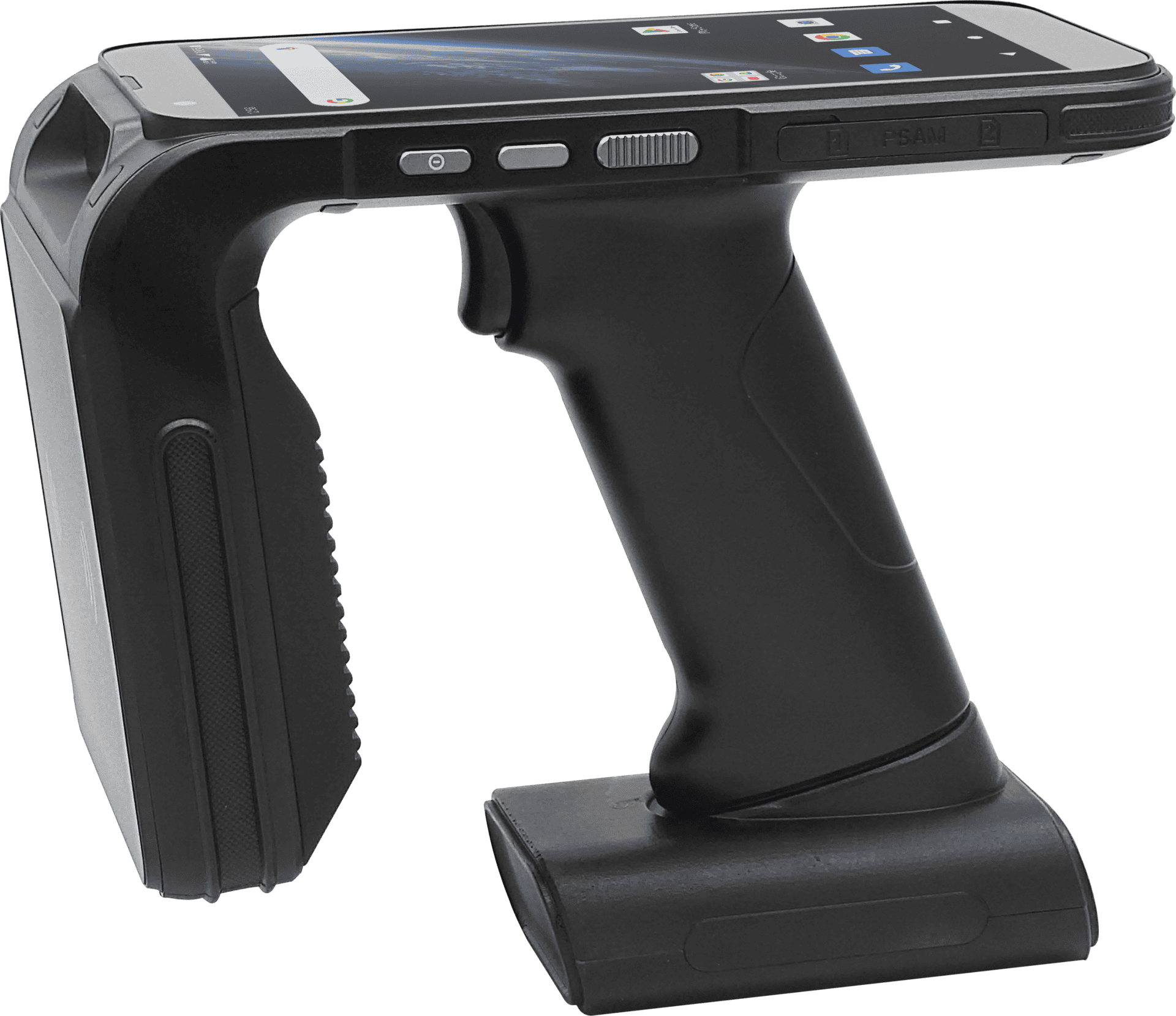

7000mAh / 13,400mAh Removable Battery
Functions
Self-Developed UHF Module Based on Impinj E Series chips
1300+ Tags/s Read Rate
Barcode Scanning, NFC, PSAM, and More
Impinj Gen2X for Enhanced UHF Performance
30m+ / 100ft.+ Read Range
Supports Precise RFID Tag Positioning
SPECIFICATIONS

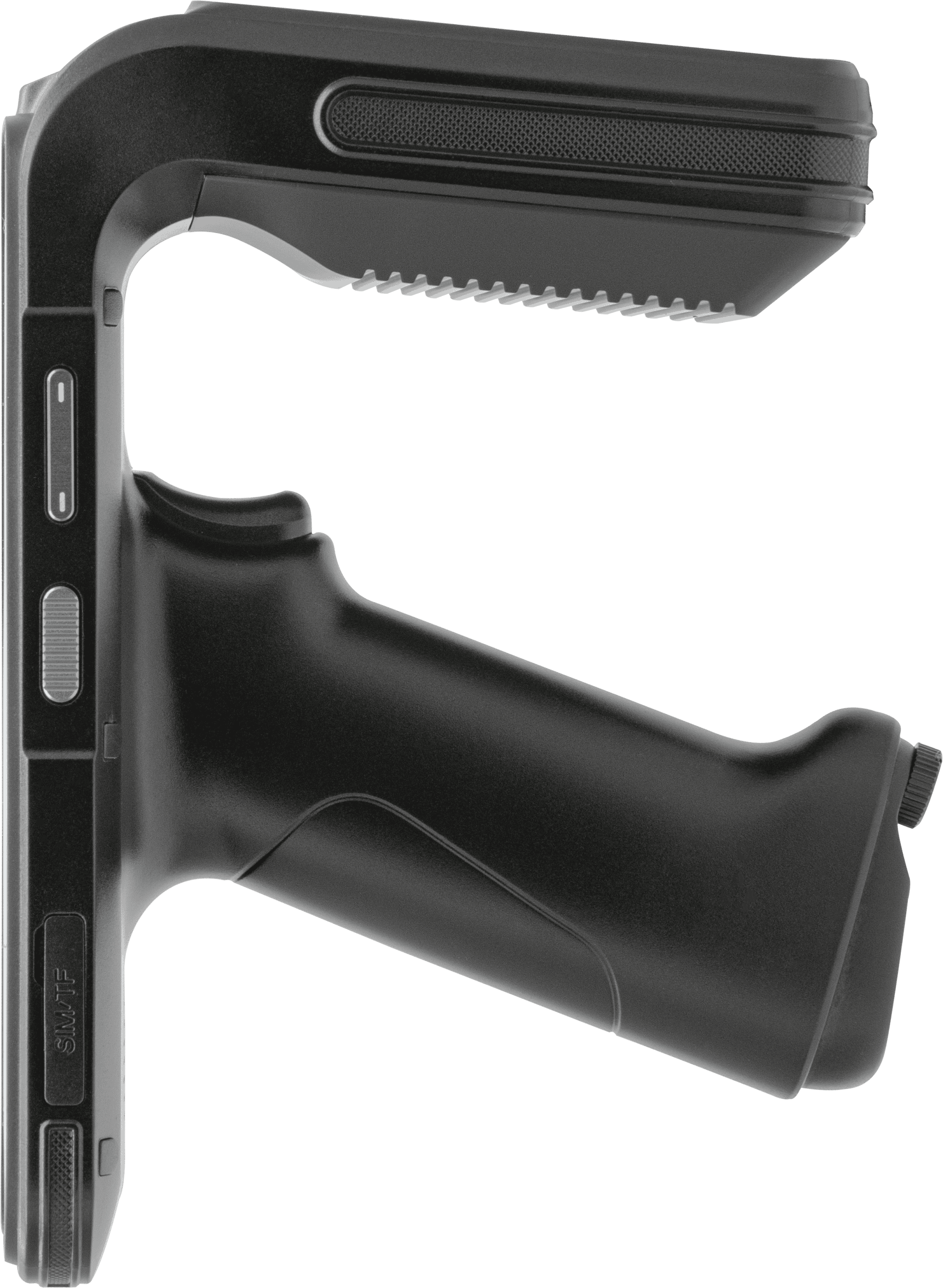

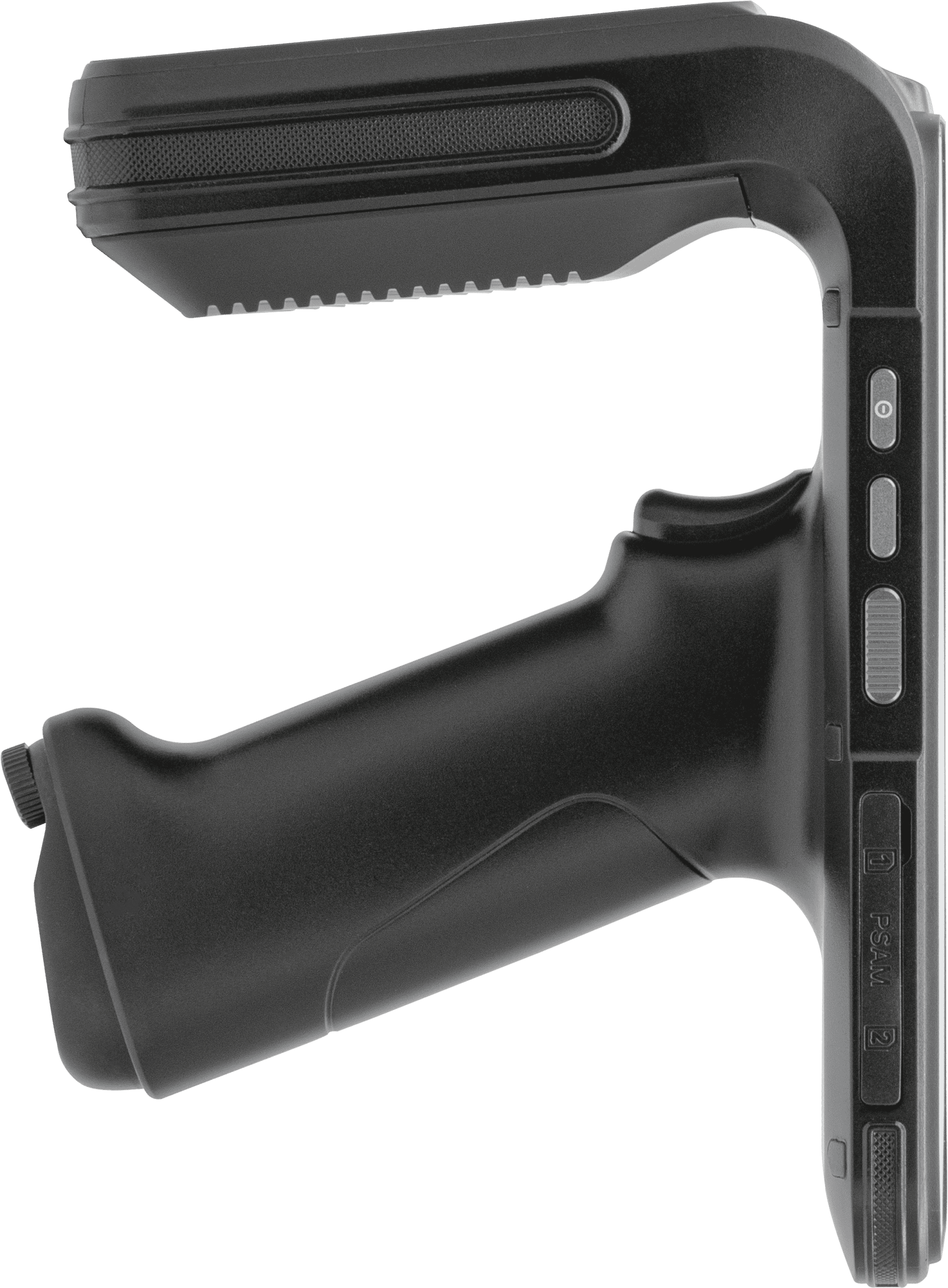

Physical Characteristics
Dimensions
178.8 x 96.5 x 128.4mm / 7.03 x 3.80 x 5.06in
Weight
626g / 22.08oz. (device with battery)
Display
5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080
Battery
Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass
Touch Panel
7000mAh / 13400mAh removable pistol battery
Built in 100mAh backup battery, supporting battery hot swap
Notification
Sound, LED indicator, vibrator

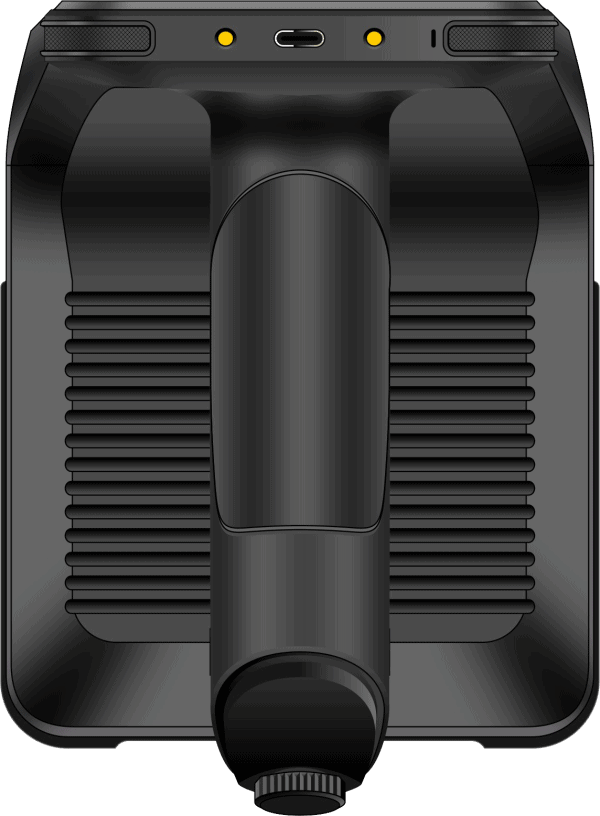

Interfaces

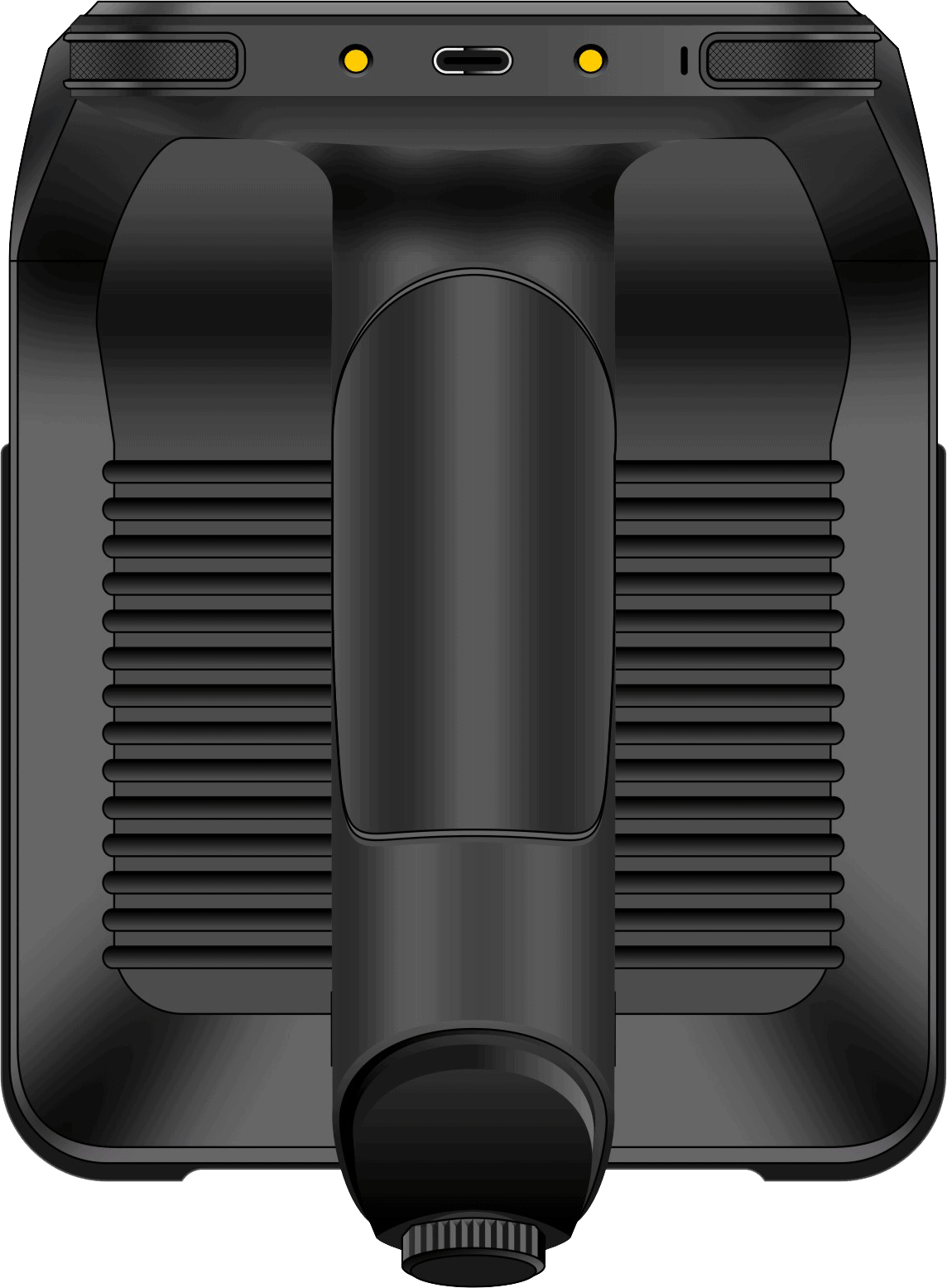

USB 2.0 Type-C, OTG, Type-C headphones supported
Card slot

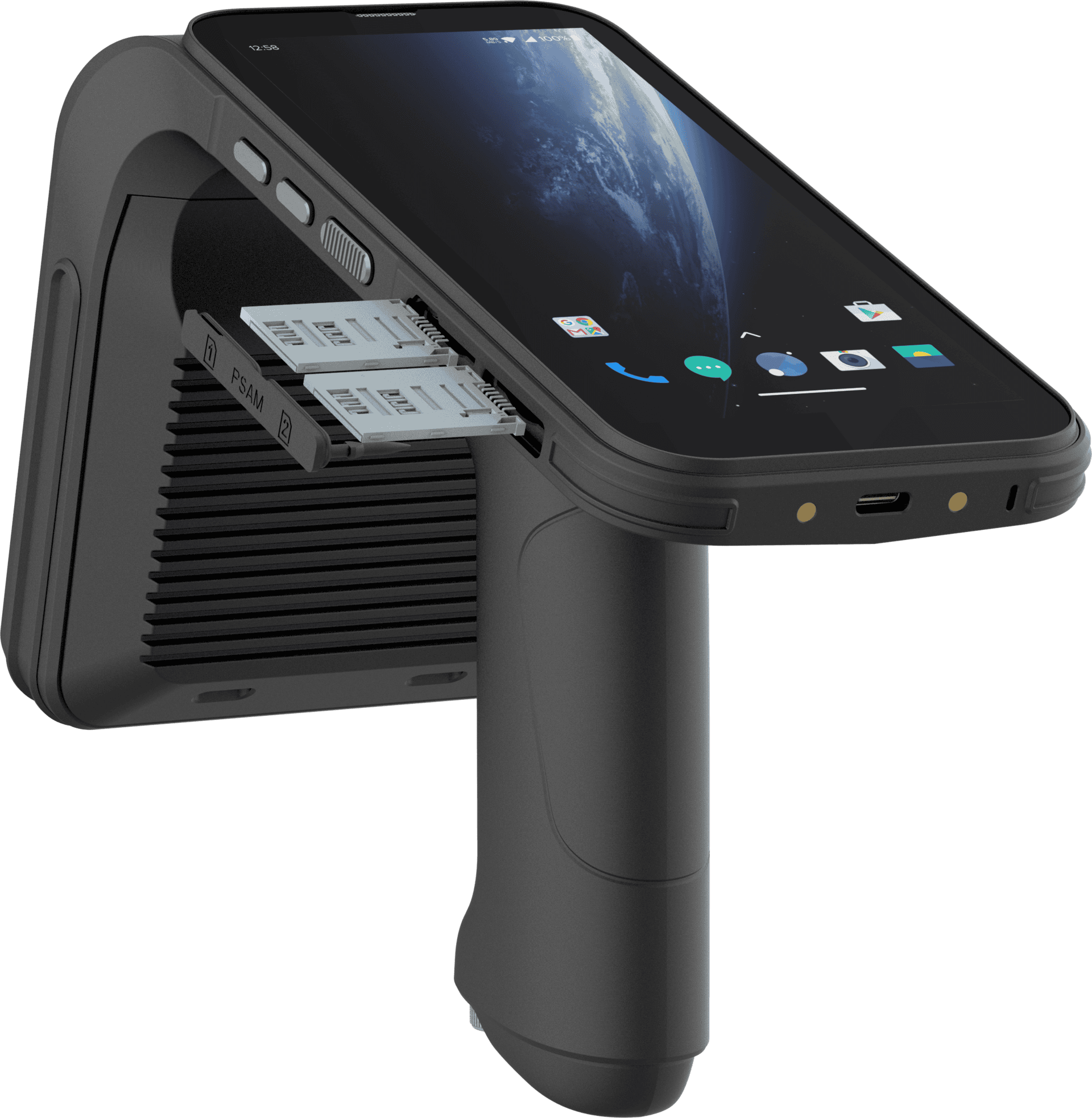

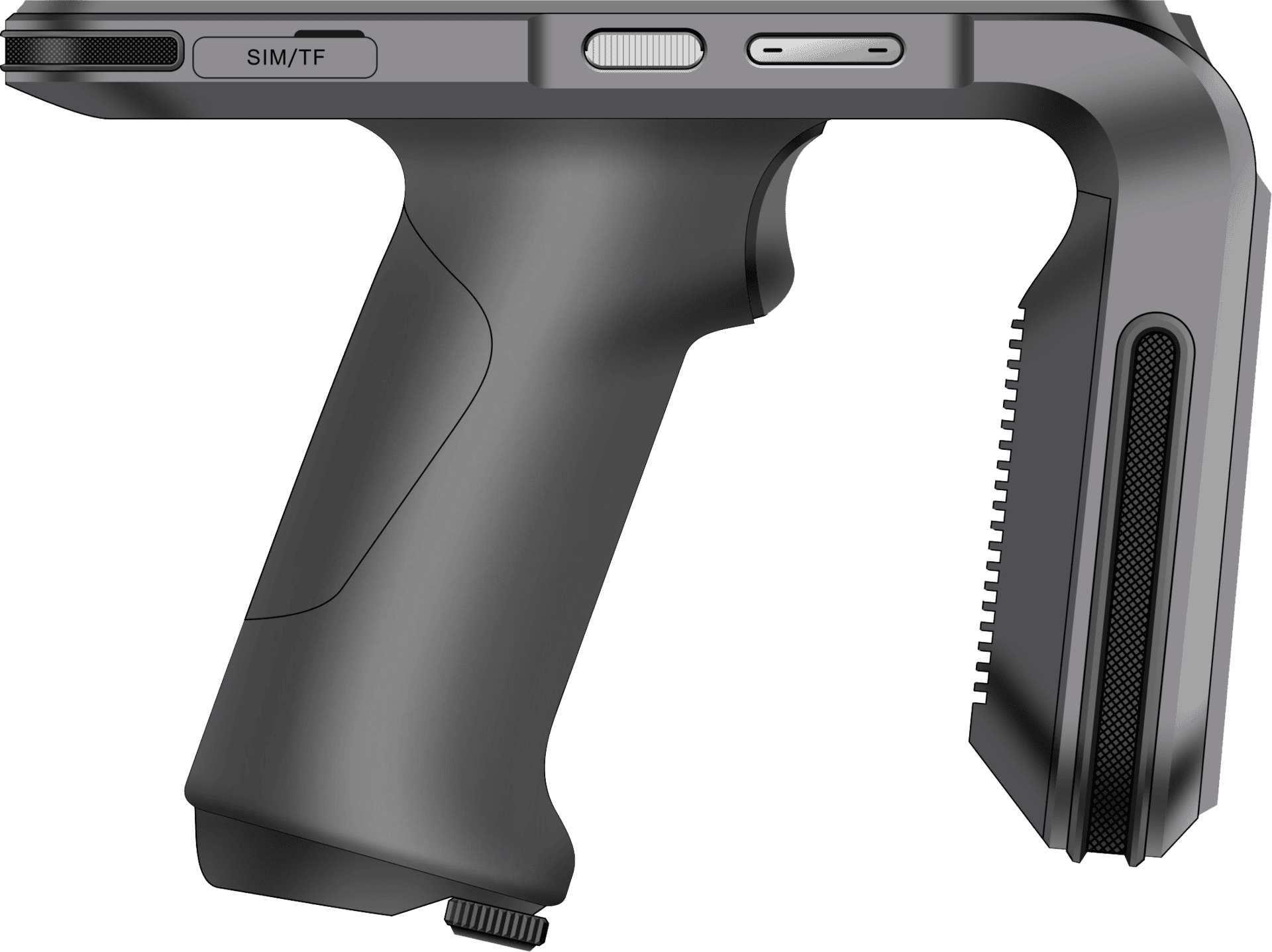

2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio
1 microphone; 1 speaker; 1 receiver
Keypad
1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)
Sensors
Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional)
Communication
WLAN
802.11 a / b / g / n / ac, 2.4G / 5G dual-band, 2*2 MIMO antennas (Optional)
WWAN
- 2G: GSM (B2 / B3 / B5 / B8)
- 3G: WCDMA (B1 / B2 / B4 / B5 / B8)
CDMA2000 ECDO: BC0 - 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41
Bluetooth
Bluetooth 5.1
Vo-LTE
Support
GNSS
GPS / AGPS, GLONASS, BeiDou, Galileo
Developing Environment
Operating System
Android 11/13, upgradable to Android 16.
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.3GHz
RAM+ROM
4GB + 128GB
4GB + 64GB (Optional)
Expansion
Supports up to 512GB Micro SD (TF) card
User Environment
Operating Temp.
-20 °C to 50 °C / 4 °F to 122 °F
Storage Temp.
-40 °C to 70 °C / -40 °F to 158 °F
Humidity
5% RH – 95% RH (non condensing)
Drop Specification
Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5m / 1.64 ft. falls at room temperature
Sealing
IP65 per IEC sealing specifications
ESD
±15KV air discharge, ±8KV conductive discharge
Barcode Scanning
2D Imager Scanner
CM60; Zebra: SE4710
1D Symbologies
UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.
Note
* This function is optional
UHF RFID
Engine
Based on Impinj E Series chips
Frequency
865-868MHz / 920-925MHz / 902-928MHz
Impinj Gen2X
Supported
Protocol
EPCglobal Gen 2 (ISO18000-6C)
Output Power
1W (30dBm, +5dBm to +30dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate
1300+ tags / sec (Circular Polarized)
Max Read Range
30m (Impinj MR6 tag, size 70 x 15mm)
32m (Impinj M750 tag, size 70 x 15mm)
33m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note
* Ranges and rates depend on tags and environment
Fingerprint Recognition
Fingerprint
TLK1NC02
Note
* This function is optional

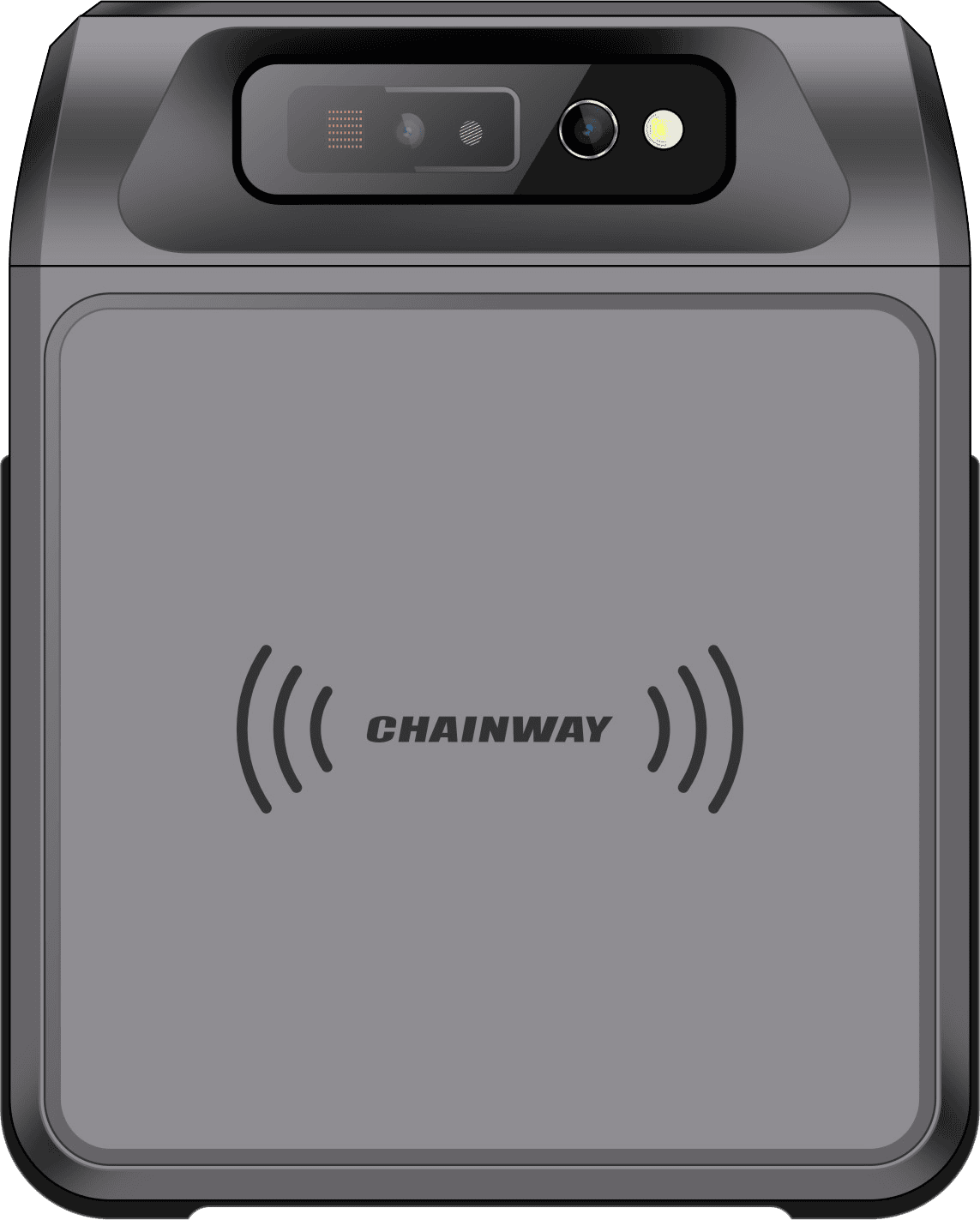

Camera
Front Camera
5MP
Rear Camera
Rear 13MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A / B, ISO15693, NFC-IP1, NFC-IP2, Impinj Prtoected Mode Supported etc.
Chips
M1 card (S50, S70), CPU card, NFC tags etc.
Range
2-4 cm
Note
* This function is optional
SUPPORT & DOWNLOADS
Documents & Manuals
Accessories

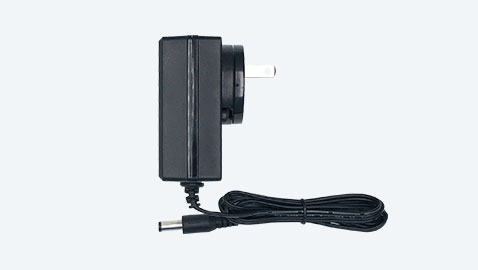

Adapter-CN
PWR-C63-5V2A-CN

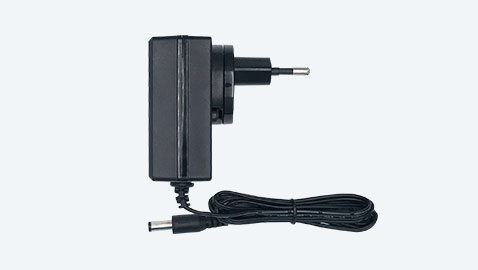

Adapter-EU
PWR-C63-5V2A-EU
Adapter-UK
PWR-C63-5V2A-UK
Adapter-US
PWR-C63-5V2A-US
USB Cable
DC-BK-TypeC

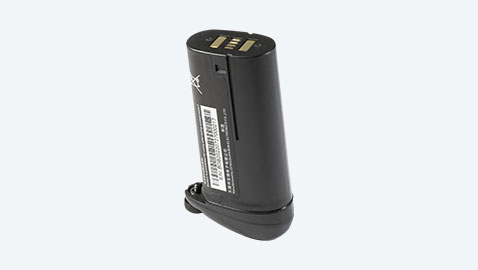

Pistol Battery
BTRY-C5-67MA

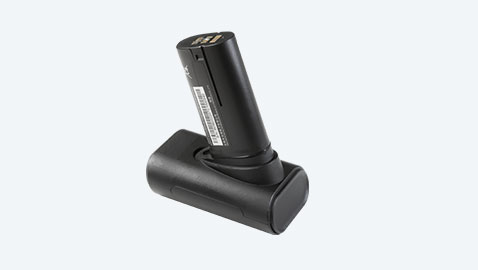

Pistol Battery (Optional)
BTRY-C5-134MA

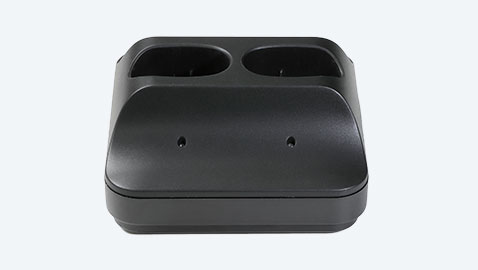

Charging Cradles (Optional)
CRD-C63-PBC
Charging Cradle for Device (Optional)
CRD-C5-DC
DC Adapter-CN (Optional)
DCPWR-12V2A-CN

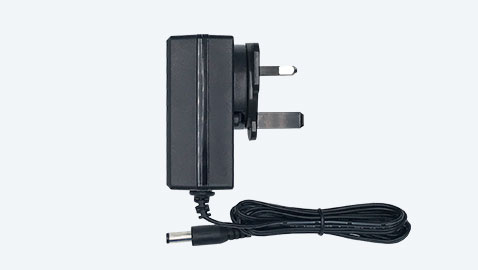

DC Adapter-UK (Optional)
DCPWR-12V2A-UK
DC Adapter-EU (Optional)
DCPWR-12V2A-EU
DC Adapter-US (Optional)
DCPWR-12V2A-US
