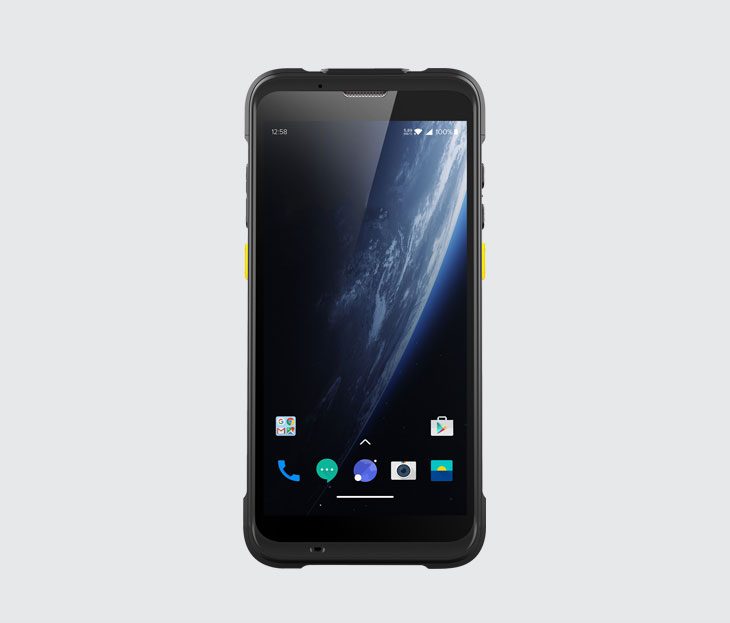

C66

Mobile Barcode Device (Android 11/13)

Perangkat Industrial dengan layar 5,5 inch “Andalan di Kelasnya” Chainway C66 merupakan perangkat barkode yang dirancang untuk kebutuhan operasional yang dinamis. Ditenagai prosesor octa-core dan layar 5.5 inci HD, perangkat ini mampu menjalankan berbagai aplikasi bisnis dengan stabil. Dilengkapi barkode scanning dan NFC, serta tersedia pilihan fitur tambahan seperti UHF dan fingerprint, C66 dapat disesuaikan dengan kebutuhan operasional. Cocok digunakan untuk operasional “indoor dan outdoor” di sektor logistik, warehouse, manufaktur, dan retail yang membutuhkan perangkat lebih fleksibel dan siap digunakan di berbagai kondisi kerja. Dilengkapi dengan fitur GSM, pemrosesan data bisa didapatkan secara aktual dan real-time.

More Powerful, More Extensible, More Advanced in Every Way

Features

Qualcomm Octa-Core 2.0GHz

Wi-Fi 6-Ready

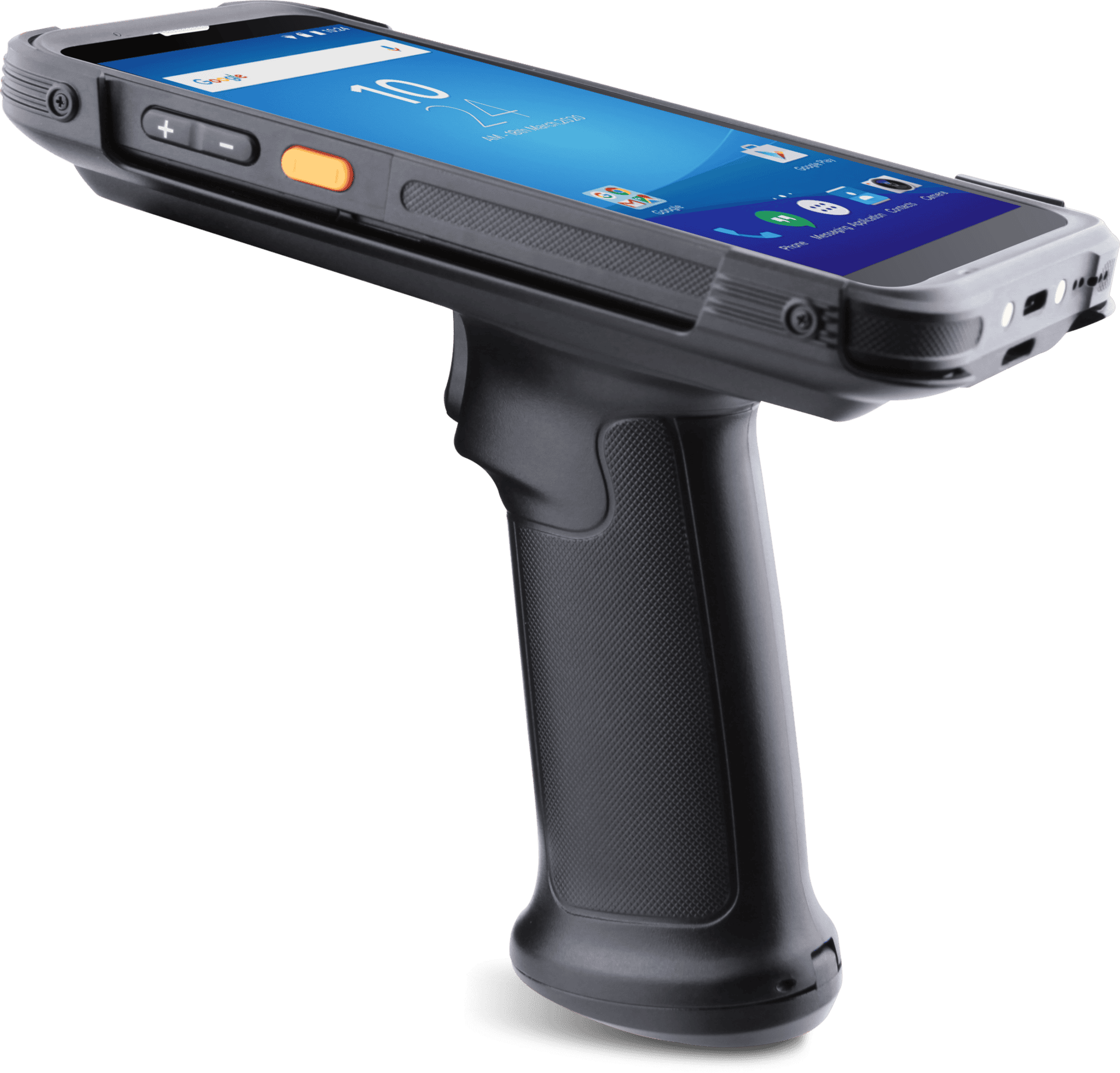

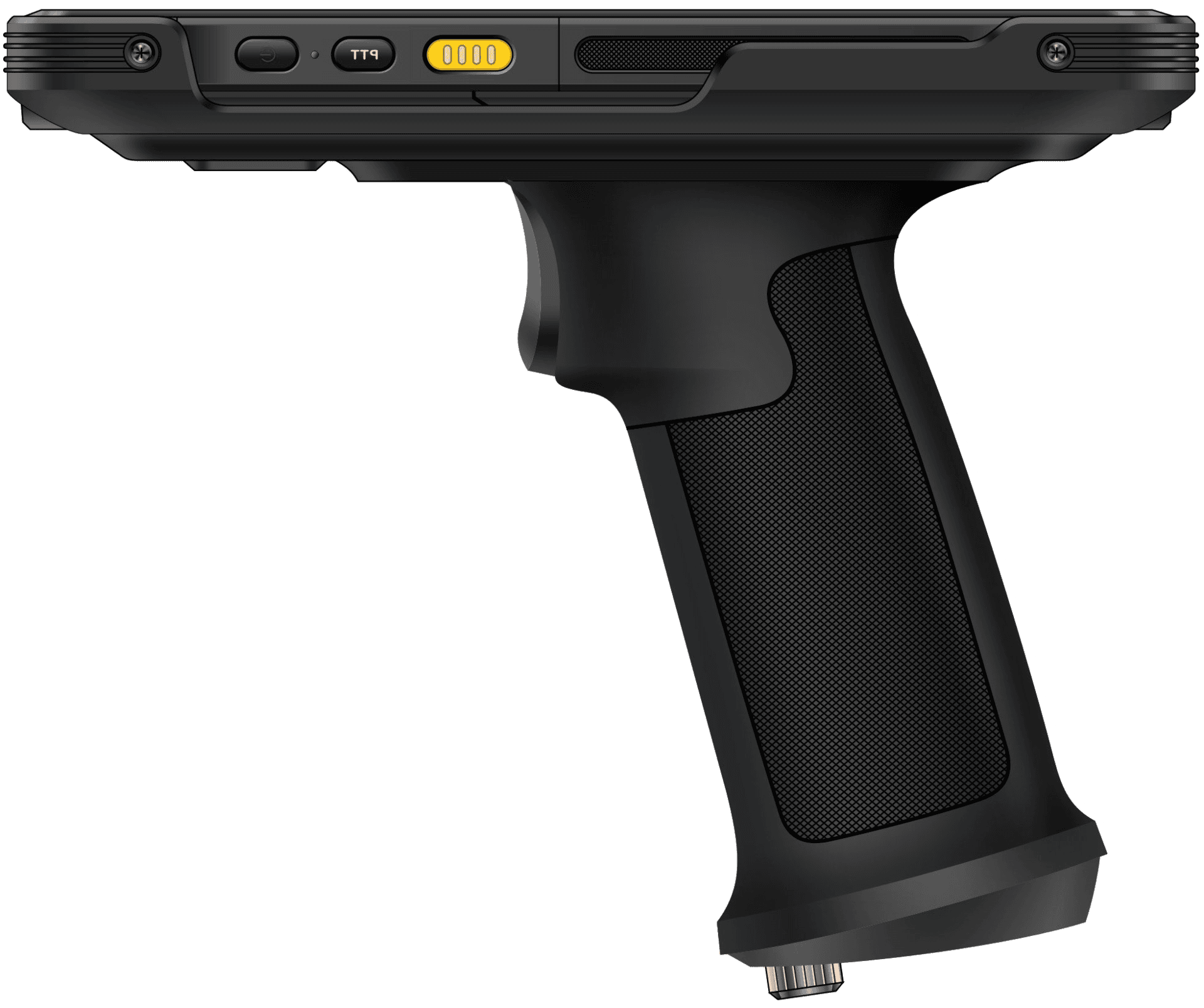

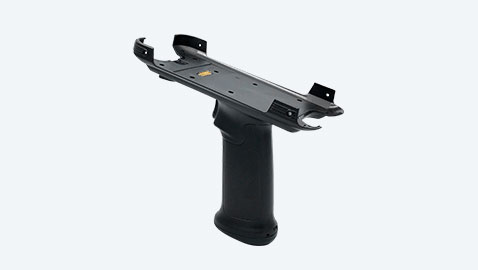

Optional Handle & 5200mAh Handle Battery

5.5” HD Display

Standard 4420mAh / 5200mAh Removable Main Battery with Fast Charging

IP65 & 1.8m / 6ft. Drop

Functions

Barcode Scanning, NFC, and camera

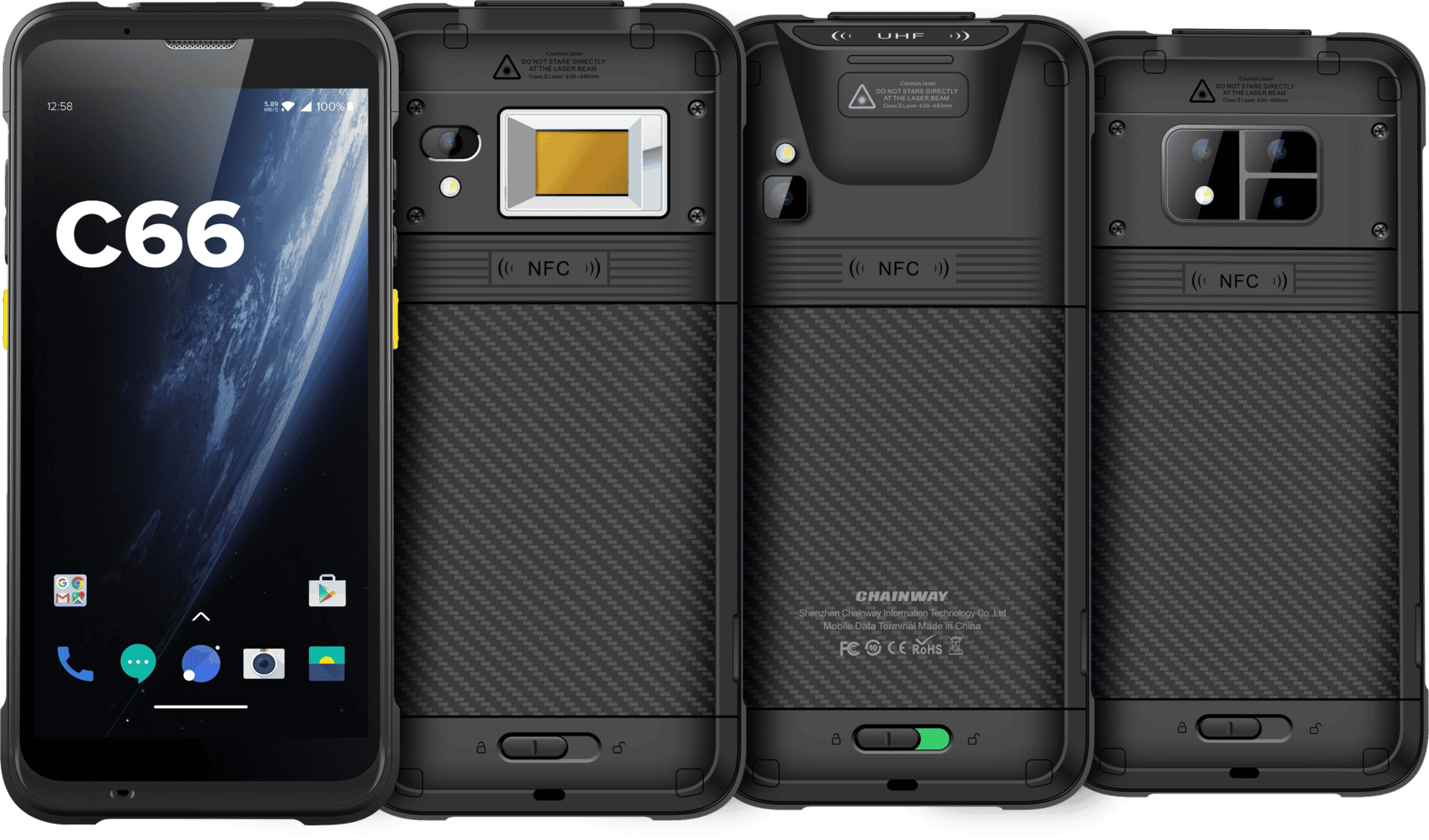

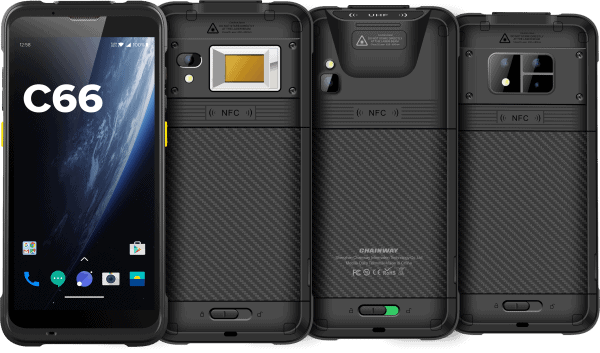

Built-In UHF & Fingerprint Options

Compatible with UHF back clip and R6 UHF Sled

SPECIFICATIONS

Physical Characteristics

Dimensions

160.0 x 76.0 x 15.5 / 17.0mm / 6.3 x 2.99 x 0.61 / 0.67 in.

Weight

287 g / 10.12 oz. (device with battery);
297 g / 10.47 oz. (device with battery, Fingerprint / Built-in UHF)

Display

5.5-inch high definition full display (18:9) , IPS 1440 x 720

Battery

Removable main battery (normal version:4420 mAh ; With fingerprint / built-in UHF version: 5200mAh )

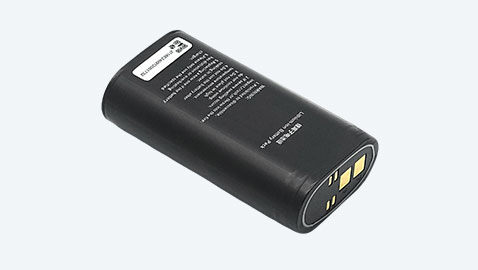

5200 mAh optional pistol battery, support QC 3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)

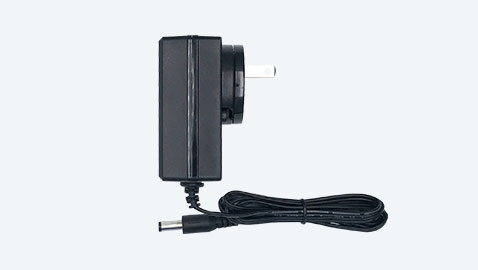

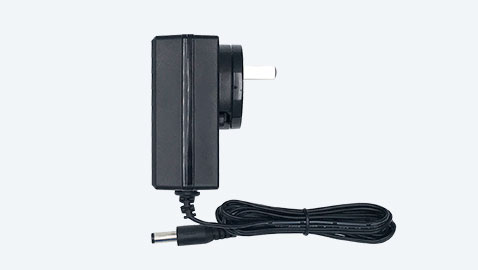

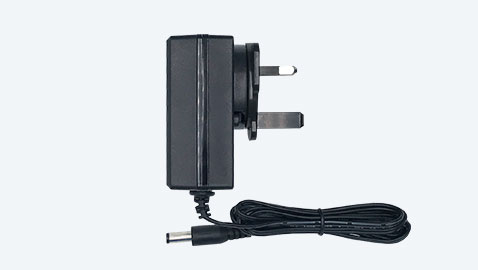

Charging time: 2.5 hours (charge device by standard adaptor and USB cable)

Touch Panel

Multi-touch panel, gloves and wet hands supported

Notification

Sound, LED indicator, vibrator

Interfaces

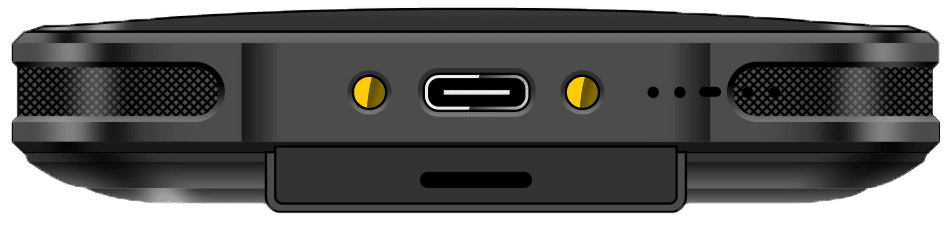

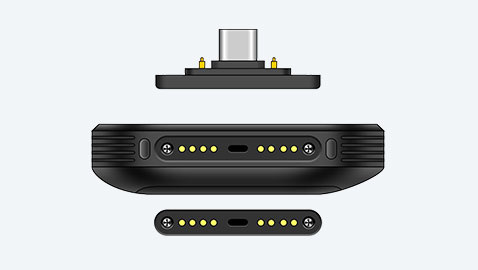

USB Type-C, USB 3.1, OTG, extended thimble

Card slot

1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Audio

2 microphones，1 for noise cancellation；1 speaker；receiver

Keypad

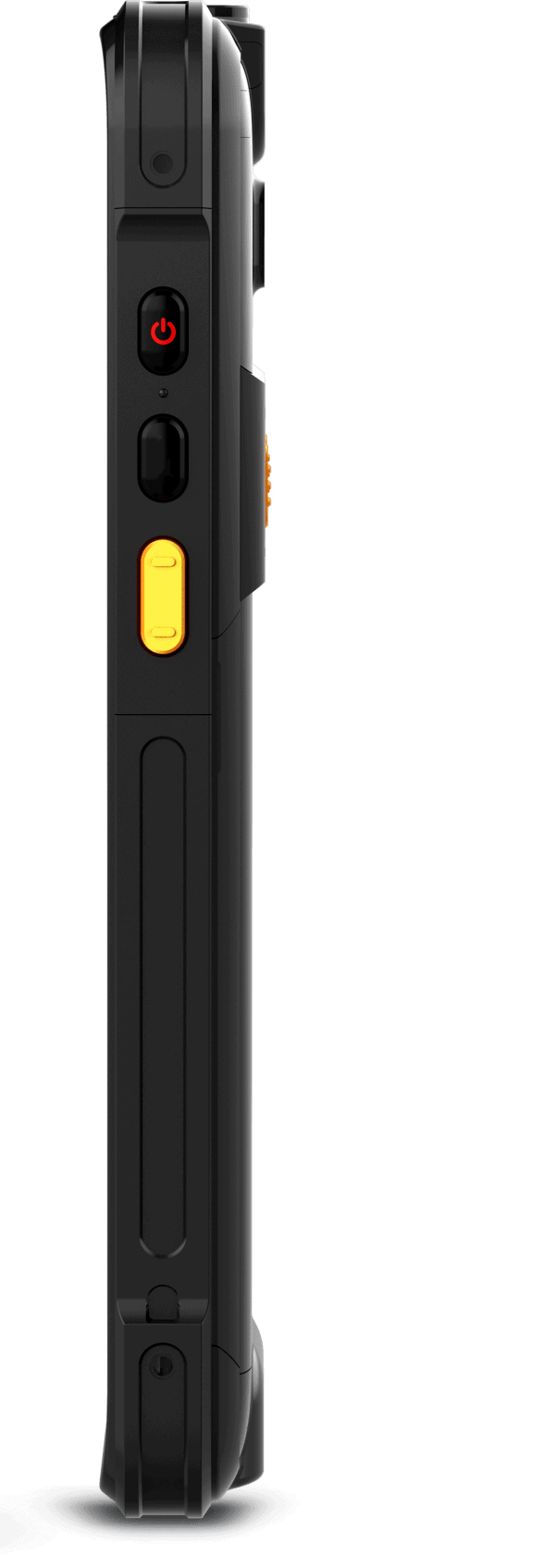

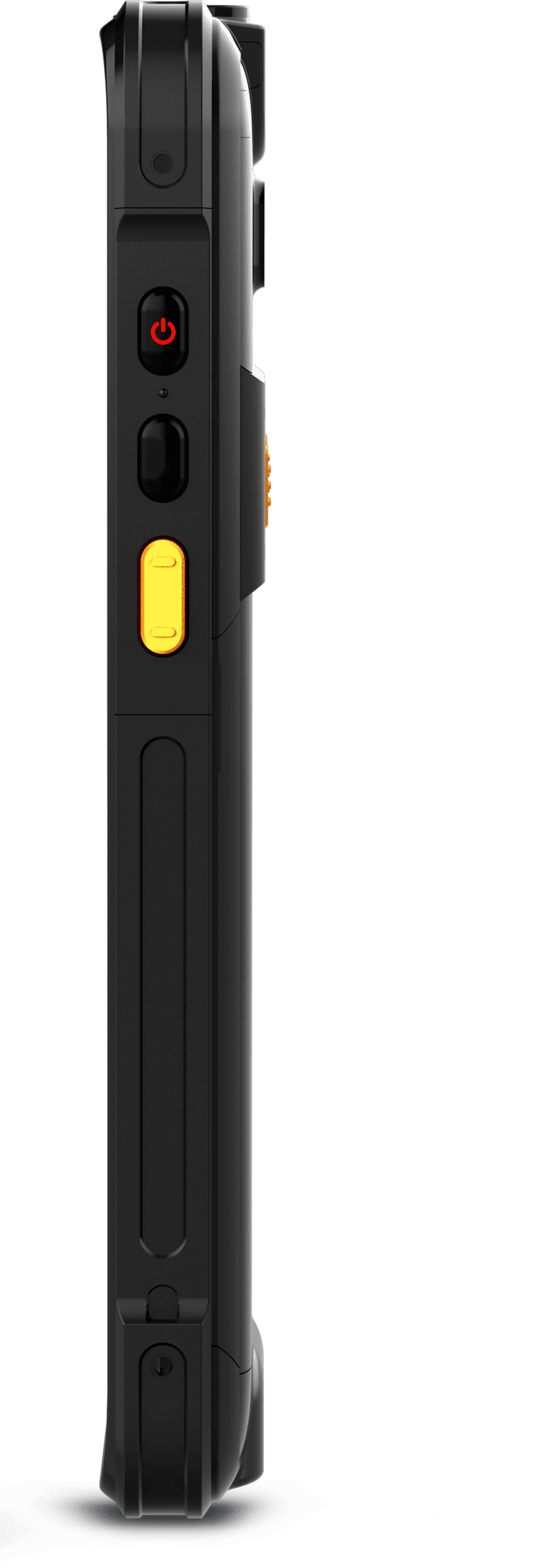

1 power key, 2 scan keys, 2 volume keys

Sensors

Accelerometer sensor, light sensor, proximity sensor
gravity sensor, gyroscope sensor(optional)
geomagnetic sensor(optional),

Communication

WLAN

Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;
Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, WPA3-Enterprise,etc.

WWAN (Europe, Asia)

2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41

WWAN (America)

2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38

Bluetooth

Bluetooth 5.1

Vo-LTE

Support Vo-LTE HD video voice call

GNSS

GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna

Note

* C66 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Developing Environment

Operating System

Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.0 GHz

RAM+ROM

3GB + 32GB / 4GB + 64GB / 6GB + 64GB / 6GB + 128GB

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp.

-20 ℃~+50 ℃

Storage Temp.

-40 ℃~+70 ℃

Humidity

5% RH – 95% RH non condensing

Drop Specification

Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range;

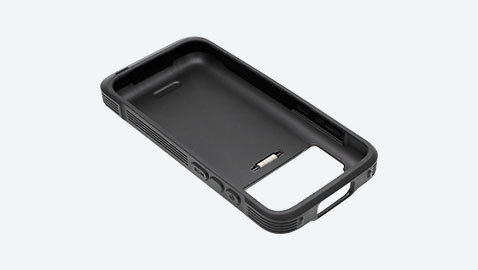

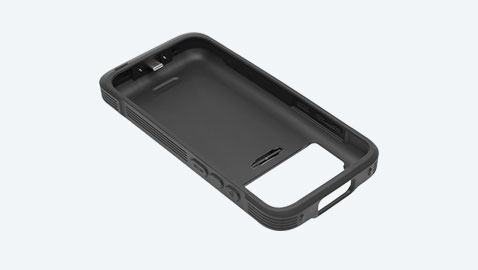

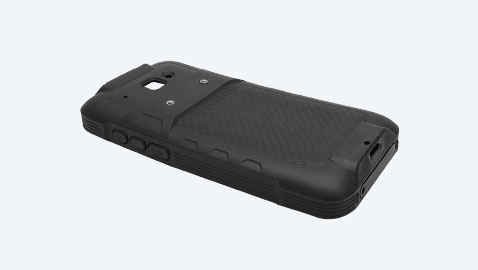

Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
MIL-STD-810H(SGS Test): Multiple 1.22 M drops (at least 20 times) to the plate across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP65 per IEC sealing specifications, IP67 optional

ESD

±15 KV air discharge, ±8 KV conductive discharge

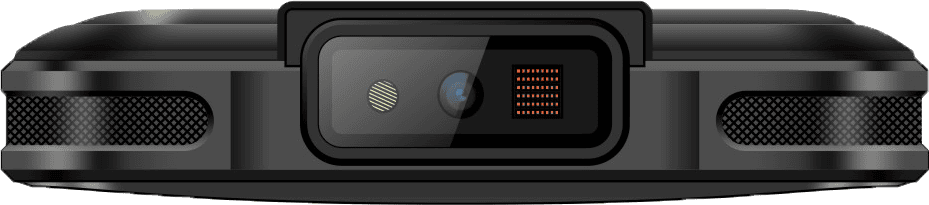

Barcode Scanning

2D Scanner

Zebra: SE4710/SE4100;
Honeywell: N6603/N6703/6803FR/HS7;
IA166S; CM60

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

Note

* This function is optional

UHF1

Engine

Based on Impinj E Series chips

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Impinj Gen2X

Supported

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Circular Polarized Antenna

Power

1W (30dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)

Max Read Range

28m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
32m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Fastest Read Rate

1300+ tags/sec

Communication Mode

Pin Connector

Note

* C66 UHF (Back Clip)
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.;
* This function is optional

UHF2

Engine

Based on Impinj E Series chips

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol

EPC C1 GEN2 / ISO18000-6C
Supports Impinj Gen2X

Antenna

Linear Polarized Antenna

Power

1 W (+5 dBm to +30 dBm adjustable)

Max Read Range

2.4m (Impinj MR6 tag, size 70 x 15mm)
2.6m (Impinj M750 tag, size 70 x 15mm)
2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Note

* C66 UHF (Built-in)
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* Optional; This version does not support pistol
