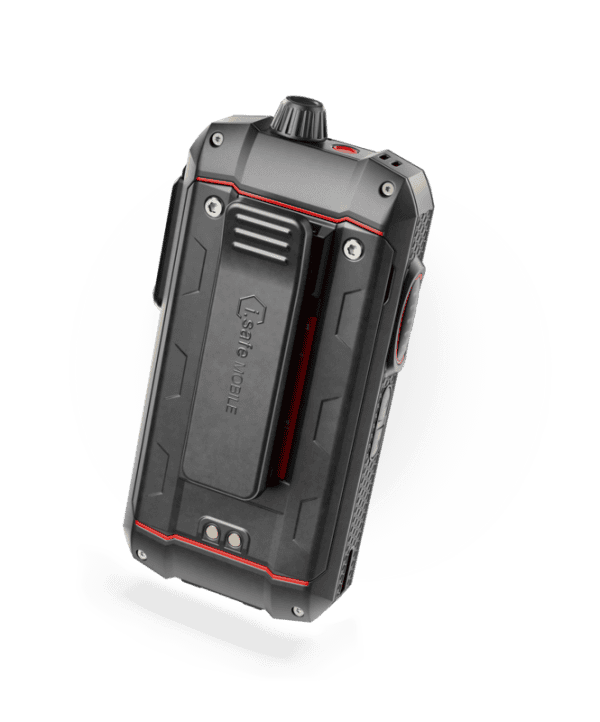

IS440.1 - Gambar 3

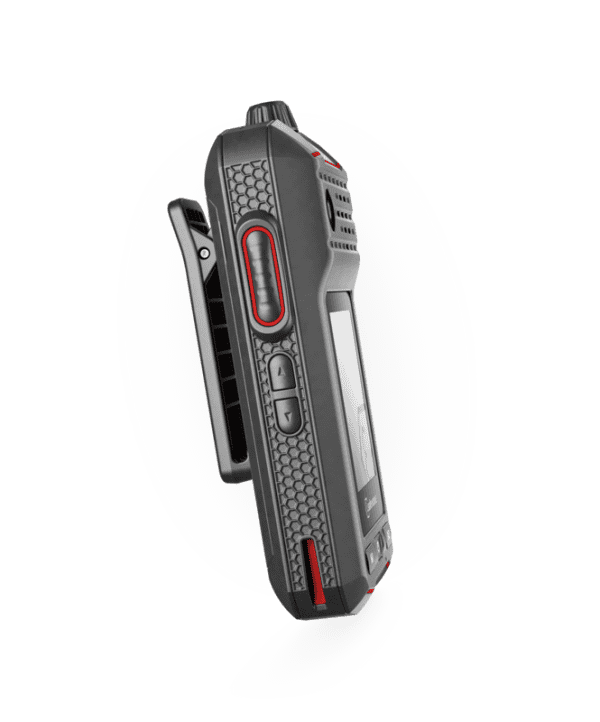

IS440.1 - Gambar 4

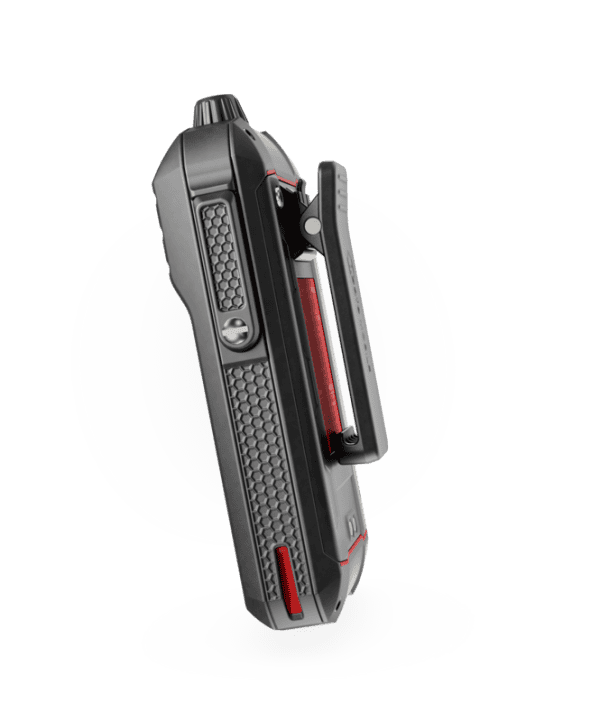

IS440.1 - Gambar 5
IS440.1 - Gambar 6

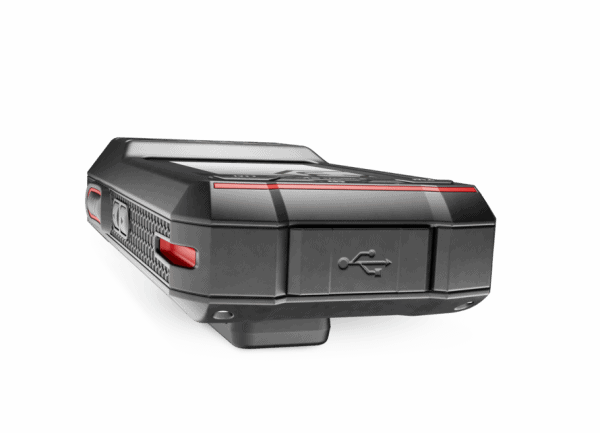

IS440.1 - Gambar 7

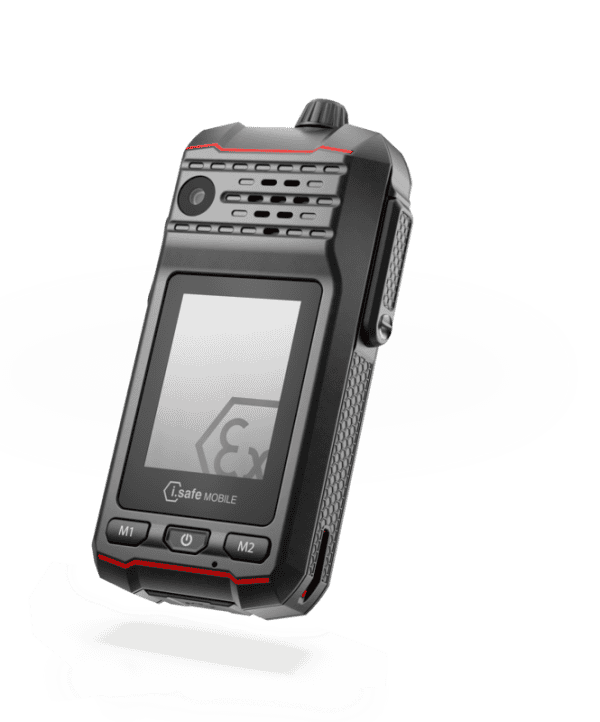

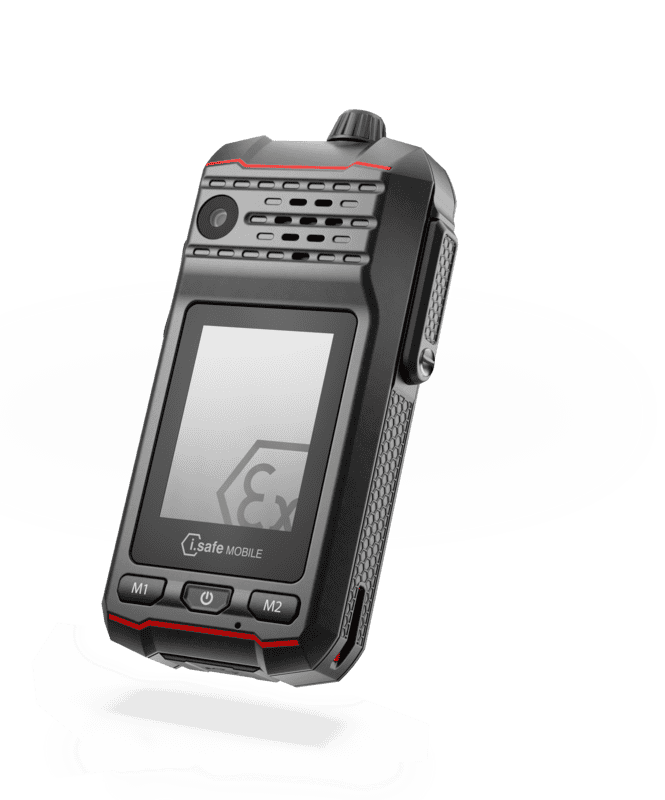

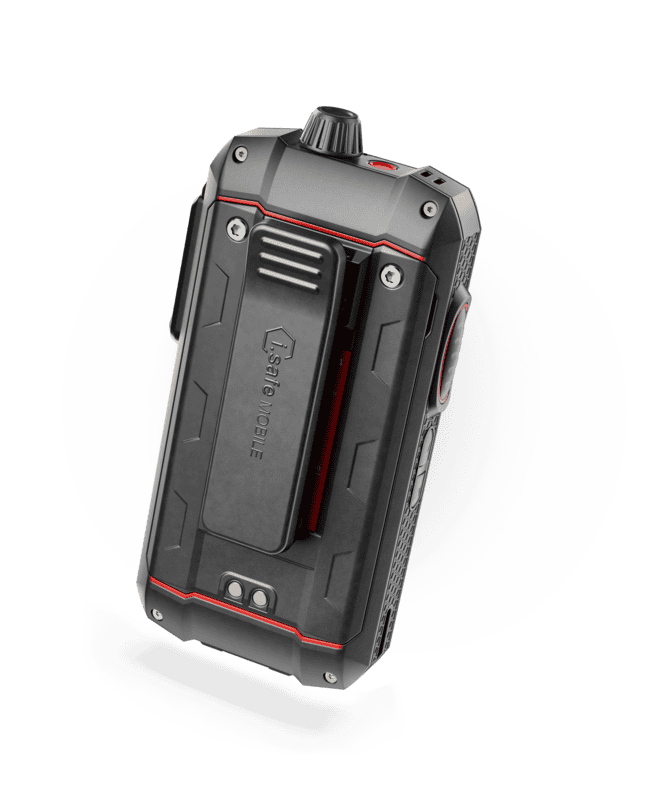

IS440.1

5G Radio Zone 1/21
Radio 5G yang memastikan komunikasi PoC yang aman dan bebas gangguan melalui jaringan publik atau kampus (4G/5G) atau Wi-Fi® di Zona Ex 1/21. Sebuah gateway membuat IS440.1 dapat beroperasi dengan teknologi radio sebelumnya dan memungkinkan integrasi mulus ke dalam sistem yang ada. Radio 5G ini menawarkan tampilan dan pengalaman pengguna yang ramah, baterai yang dapat diganti, tombol besar untuk PTT, SOS, pemilihan talkgroup, speaker depan bertenaga, antarmuka ISM, serta klip pengait yang fungsional. Anda dapat mengunduh aplikasi pilihan yang kompatibel langsung dari App World yang sudah terpasang dan memperbaruinya secara berkala. App World berisi aplikasi terkait produk, solusi push-to-talk, dan MDM terpilih.
informasi pemesanan
Request Demo
Datasheet IS945.1
Datasheet IS-DC440.1
Datasheet IS-MC440.1
Operating Manual IS440.1
Safety Instructions IS440.1
Operating Manual EN-KO IS440.1
Safety Instructions EN-KO IS440.1
FCC Statement IS440.x
IC Statement IS440.x
Operating Manual IS-DC440.1
Safety Instructions IS-DC440.1
Operating Manual IS-MC440.1
Safety Instructions IS-MC440.1
ATEX IS440.1
IECEx IS440.1
NEC IS440.1
IA South Africa (MTEx) IS440.1
INMETRO IS440.1
PCEC IS440.1
DoC IS440.1
KCs IS440.1
KCs IS440.1

Fitur Unggulan

Tombol Push-To-Talk, siap PTT (membutuhkan aplikasi pihak ketiga, berdasarkan persetujuan khusus tiap negara)
Tombol fungsi merah (tombol fungsi dapat ditetapkan untuk berbagai aplikasi pihak ketiga; misalnya perlindungan pekerja tunggal)
Pengeras Suara
Sensor Akselerometer, Giroskop, Magnetik, dan Tekanan
Dual-SIM (Nano-SIM + eSIM)
USB-C, Pengisi daya desktop, Pengisi daya multi (Multi Charger)
Download Datasheet

Keunggulan Produk

  • Pemilih kanal, misalnya untuk aplikasi PTT
  • Tombol merah yang dapat diprogram (misalnya untuk perlindungan pekerja tunggal/SOS)
  • Tombol samping yang dapat diprogram (misalnya untuk PoC/PTT)
  • Tombol tambahan yang dapat diprogram, M1 & M2, dapat diatur melalui Aplikasi Button
  • Antarmuka ISM 8-pin untuk aksesori audio opsional
  • Baterai 4800 mAh yang kuat untuk waktu pakai ekstrem sebagai aksesori opsional
  • Speaker yang diperkuat untuk lingkungan kerja yang bising
  • Klip sabuk terintegrasi untuk membawa dengan aman

Persetujuan & Sertifikasi

csm_LOG_ZUL_ATEX__SALL__AIN__V1_5c46efd86d
ATEX (Europe)
Approved

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

csm_LOG_ZUL_IECEx-Zulassung__SALL__AIN__V1_d87ccdfa51
IECEx (International)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

csm_LOG_ZUL_QPS-Zulassung__SALL__AIN__V1_f3369244dd
NEC500 (North America)
approved

Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135 °C
Class III

csm_LOG_ZUL_i
IA (South Africa)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
csm_LOG_ZUL_PCEC_logo__SALL__AIN__V1_78ecb2c115
PCEC (China)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
csm_LOG_ZUL_INMETRO-Zulassung-Brasilien__SALL__AIN__V1_42452a948b
INMETRO (Brazil)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
csm_LOG_ZUL_CSA-Group_Logo__SALL__AIN__V1_647c15a407
Japan-Ex (Japan)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

Aksesoris Produk

csm_PHO_PRO_COMP_BPIS440A
Batteries

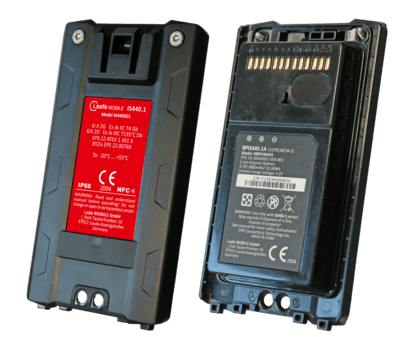

BPIS440A.1A Battery
IS440.1 Li-Polymer Battery 2800 mAh, Typ BPIS440A.1A, Size: 104,4 x 60,7 x 14,4 mm (L x B x H)
csm_PHO_PRO_COMP_IS-DC440
Charging system
IS-DC440.1 Desktop Charger Set
Desktop charger for the IS440.x devices with a second charging slot for spare battery. Size: 103,83 x 95,62 x 45,54 mm (L x W x H)
Datasheet IS-DC440.1
Operating Manual IS-DC440.1
Safety Instructions IS-DC440.1
csm_PHO_PRO_FRO_IS-MC540
Charging system

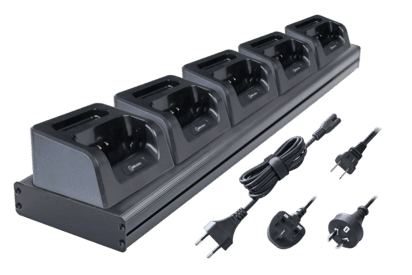

IS-MC440.1 Multi Charger Set
Multi charger for up to six devices, each with a second charging slot for spare batteries as well as power cable AU-C7, EU-C7, UK-C7 and US-C7. Size: 593 x 113 x 79 mm (L x W x H). Compatible with IS440.1, IS440.M1, IS440.2 and IS440.RG.
Datasheet IS-MC440.1
Operating Manual IS-MC440.1
Safety Instructions IS-MC440.1
csm_PHO_PRO_FRO_X0200100_i.safe_PROTECTOR_2
Charging system

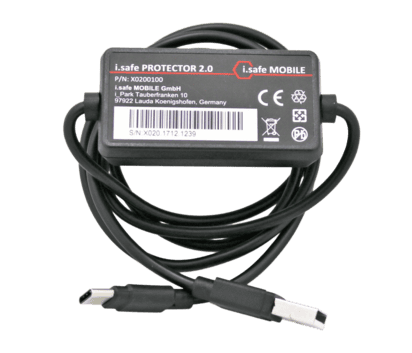

i.safe PROTECTOR 2.0 USB-C Cable
For safe charging of the device via the type USB-C port.
csm_PHO_PRO_COMP_IS-HDHS1B
Headset

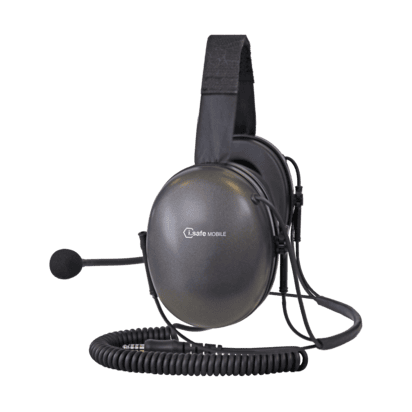

IS-HDHS1B.1 Headset Set (Neckband)
Comfortable, noise-insulating headset with outstanding features such as a pleasant wearing comfort thanks to the soft ear pads, first-class audio components, approx. 27 dB sound attenuation and a microphone with excellent noise cancellation. The robust design is also suitable for difficult environments and the textile headband allows helmets and bump caps to be worn.
Datasheet IS-HDHS1x.1/IS-PTTBxA.1
Safety Instructions IS-HDHS1x.1
Operating Manual IS-HDHS1x.1/IS-PTTBxA.1
csm_PHO_PRO_COMP_IS-HDHS1x
Headset

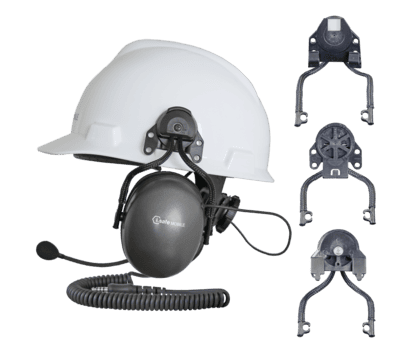

IS-HDHS1C.1 Headset Set (Helm Mount)
Comfortable, noise-insulating headset with outstanding features such as a comfortable fit thanks to the soft ear pads, first-class audio components, approx. 27 dB sound attenuation and a microphone with excellent noise cancellation. The helmet attachment can be selected depending on the helmet type.
Datasheet IS-HDHS1x.1/IS-PTTBxA.1
Safety Instructions IS-HDHS1x.1
Operating Manual IS-HDHS1x.1/IS-PTTBxA.1
csm_PHO_PRO_COMP_IS-PTTBxA
Headset

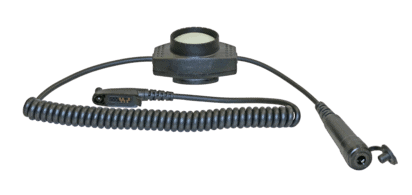

IS-PTTB2A.1 PTT Button Set (8-pin)
8-pin Headset, suitable for all 8 ISM interfaces.
Datasheet IS-HDHS1x.1/IS-PTTBxA.1
Operating Manual IS-HDHS1x.1/IS-PTTBxA.1
Safety Instructions IS-PTTBxA.1
csm_PHO_PRO_FRO_IS-HS2A
Headset
IS-HS3A.1 Headset Set
8-pin Headset, suitable for all 8 ISM interfaces.
Datasheet IS-HS3A.1
Operating Manual IS-HS3A.1
Safety Instructions IS-HS3A.1
csm_PHO_PRO_FRO_Schallschlauch_01-00101091-2002-010__SALL__AIN__V1_7cd3d1b262
Other
Acoustic Tube IS-HSx.x
Acoustic Tube for replacement when the headset is worn out. Suitable for IS-HS1.1 (13-pin), IS-HS2A.1 (16-pin), and IS-HS3A.1 (8-pin) Packaging unit 10 pieces.
csm_PHO_PRO_COMP_Adapter_Composing__SALL__AIN__V1_880c13fbf8
Carrying system
Klick Fast Connector IS440.x

The Klick Fast Connector, when attached to the IS440.x, slides and locks easily into any Klick Fast Dock. Once docked, the IS440.x can be rotated to any of seven ratcheted positions. It is undocked quickly and easily by rotating to its inverted position and sliding it free. Suitable for the devices of the IS440.x series.

Download
csm_PHO_PRO_FRO_IS440
Display protection foils
Display Protection Foil IS440.x (10 pcs)
Rugged plastic foil for an extended protection of the display.
Download
csm_PHO_PRO_FRO_Datenblatt__SALL__AIN__V1_1828471f58
Service

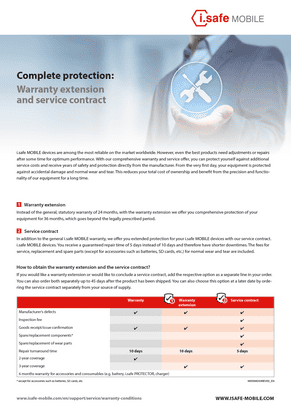

Warranty Extension
With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.
Download

Termasuk Dalam Paket

  • 5G Radio
  • Battery
  • i.safe PROTECTOR 2.0
  • Power Adapter universal
  • Safety Instructions
  • Screwdriver
  • Belt Clip
  • Display Protection Foil

Spesifikasi Perangkat​

Operating system

ISM-OS 14

Processor

Qualcomm®

QCM6490 Octa Core

Memory

4 GB RAM

64 GB internal memory

Frequencies

4G LTE-FDD:
B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 MFBI / B13 / B14 / B17 / B20 / B25 / B26 / B28 / B29 / B30 / B66 / B71 / B68

4G LTE-TDD:
B38 / B39 / B40 / B41 / B42 / B43 / B48

5G NR:
n1 / n2 / n3 / n5 / n7 / n8 / n12 / n14 / n20 / n25 / n28 / n30 / n38 / n40 / n41 / n48 / n66 / n71 / n77 / n78 / n79

Dimensions

Size: 136,6 x 70 x 32 mm

Weight: 307 g

Display

2,4″ (6,096 cm) Corning® Gorilla® Glass V3

Battery

2400 mAh

replaceable

Camera

8 MP AF front

Connectivity

Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot

Bluetooth® 5.2

GPS, A-GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS

Near Field Communication

Types of protection

IP68 dust-/waterproof

MIL-STD 810H

Usable from -20 °C to +55 °C

Interfaces

USB-C

charging contacts

ISM interface
