Keunggulan Produk
- Mikrofon digital dengan peredam bising aktif untuk lingkungan kerja yang berisik
- Pengoperasian yang jelas dan tertata melalui mikrodisplay beresolusi tinggi
- Kamera 48 MP yang kuat dengan kualitas perekaman luar biasa untuk dokumentasi optimal pada gambar diam maupun bergerak
- Modul Kamera Termal Teledyne FLIR untuk foto radiometrik, terintegrasi langsung ke dalam gambar.
Persetujuan & Sertifikasi
ATEX (Europe)
Approved
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
IECEx (International)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
UKEX (United Kingdom)
approved
I M1 Ex ia I Ma
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T200°C Db
NEC500 (North America)
approved
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135 °C
Class III
IA (South Africa)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Ex ib IIIC T135°C Db
INMETRO (Brazil)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Ex ib IIIC T135°C Db
PCEC (China)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Ex ib IIIC T135°C Db
TIIS (Japan)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T200°C Db
KCs (South Korea)
approved
Ex ib IIC T4 Gb
Ex ib IIC T200°C Db
Aksesoris Produk
Charging systems
i.safe PROTECTOR 2.0 USB-C Cable
For safe charging of the device via the type USB-C port.
Headsets

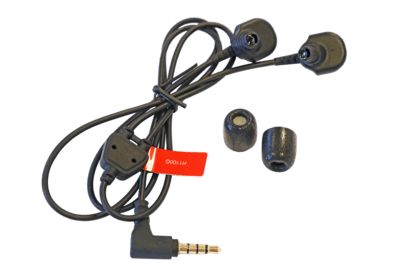

Ear Bud Hearing Protection Set HMT-1Z1/NAV Z1
The headphones with ear protection (model H1100G) are specially designed for an optimal hands-free experience with the HMT-1Z1/REALWEAR NAVIGATOR Z1 and are highly recommended for the HMT-1Z1/REALWEAR NAVIGATOR Z1 in noisy environments. The headphones have interchangeable earpieces made of premium memory foam. Each headphone comes with three pairs of foam earpieces in sizes small, medium, large.
Others

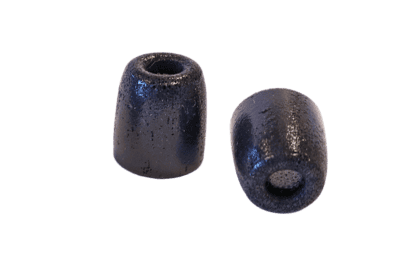

Ear Bud Foam Tips L HMT-1Z1/NAVZ1
Ear moulds for replacement in case of wear on the headphones with hearing protection. Available in three sizes: small, medium, large. Packaging unit 10 pair.
Others
Ear Bud Foam Tips S HMT-1Z1/NAVZ1
Ear moulds for replacement in case of wear on the headphones with hearing protection. Available in three sizes: small, medium, large. Packaging unit 10 pair.
Others
Ear Bud Foam Tips M HMT-1Z1/NAVZ1
Ear moulds for replacement in case of wear on the headphones with hearing protection. Available in three sizes: small, medium, large. Packaging unit 10 pair.
Spesifikasi Perangkat
Dimension
Weight: 383 g
Sampling rate
8,7 Hz
Interfaces
earphone jack
USB-C
Battery
2550 mAh, 3,7 V
replaceable
Operating system
Android™ 12 (AOSP) + WearHF™ hands-free interface
Camera
48 MP AF front
Processor
Qualcomm® QCS6490
Types of protection
IP66
MIL-STD 810H
Usable from -20 °C to +55 °C
Sensor type
FLIR Lepton® 3.5
Field of view (DFOV) °
71
Field of view (HFOV) °
57
Memory
8 GB RAM
128 GB internal memory
Spectral range
8 – 14
Temperature detection from (°C)
-10
Temperature detection up to (°C)
400
Temperature accuracy
±5 °C oder 5 % (typisch)
±10 °C oder 10 % (typisch)
Thermal resolution
160 x 120
Thermal Sensitivity
<50 mK
Connectivity
Bluetooth® 5.2
GPS, Glonass, Beidou,
Galileo, NavIC, QZSS, SBAS
Video (pixel & bitrate)
1080 p @ 60 fps
Anschlussmöglichkeiten (Kopfhörer, USB, Zubehör, ...)
earphone jack
