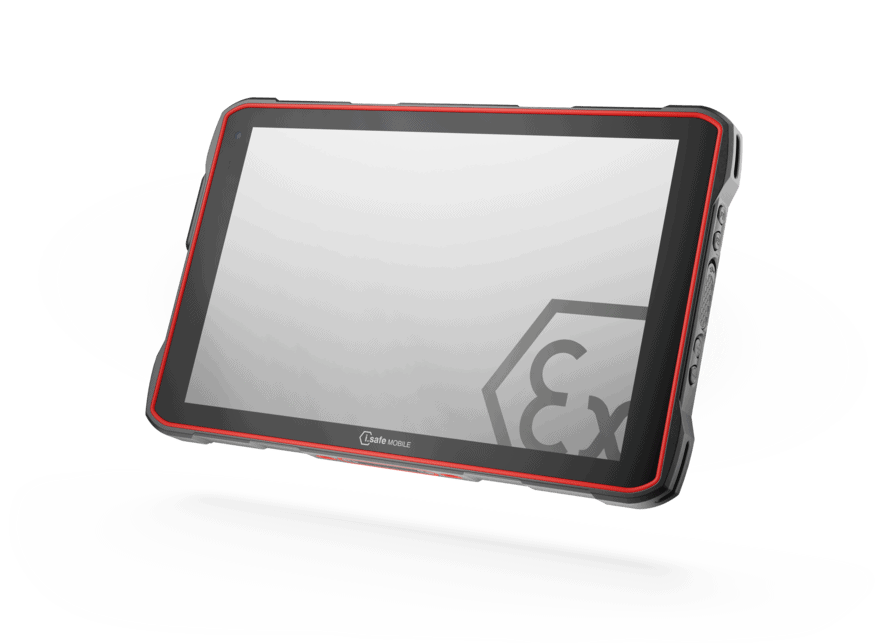

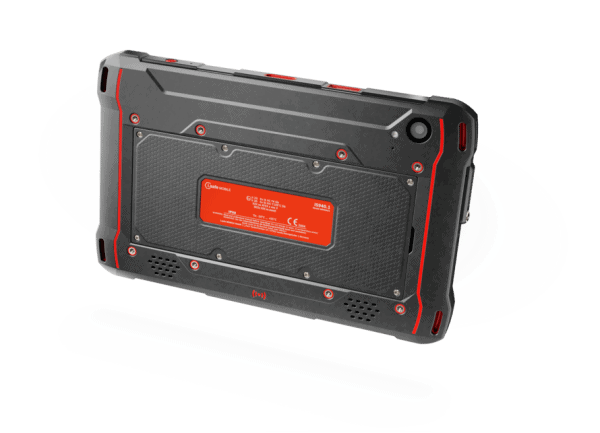

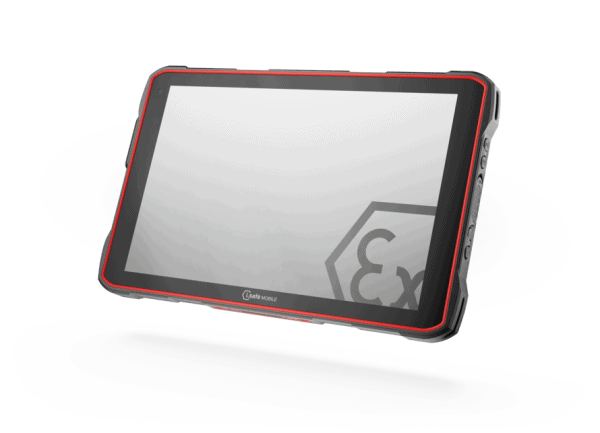

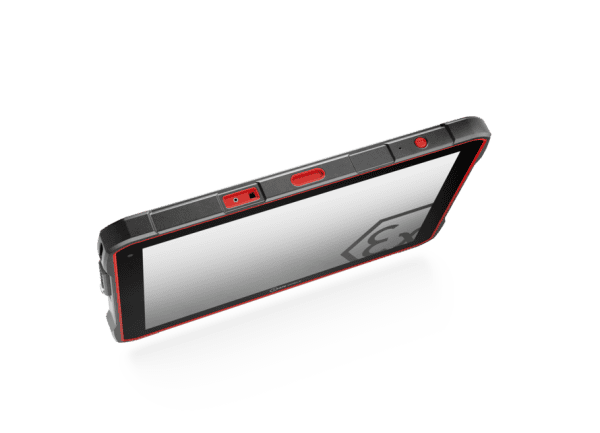

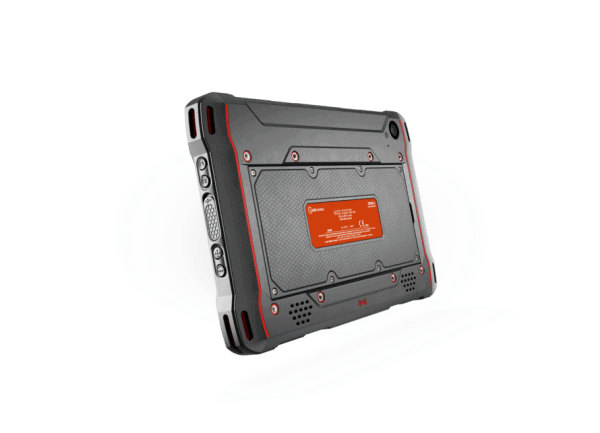

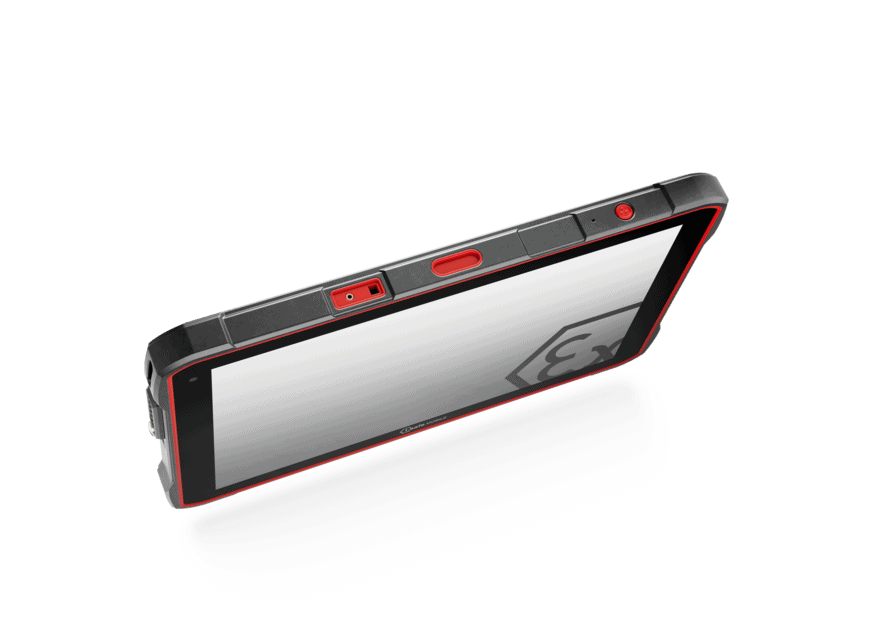

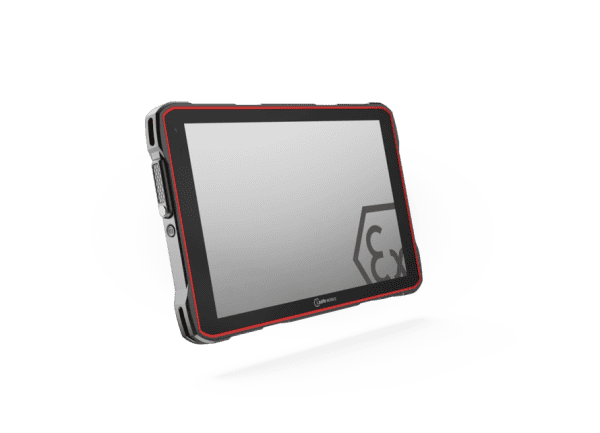

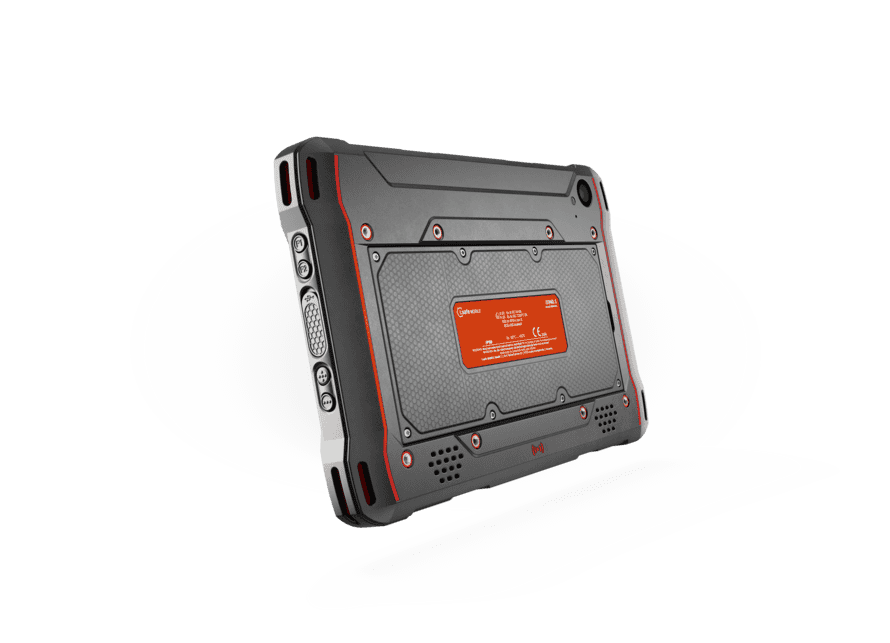

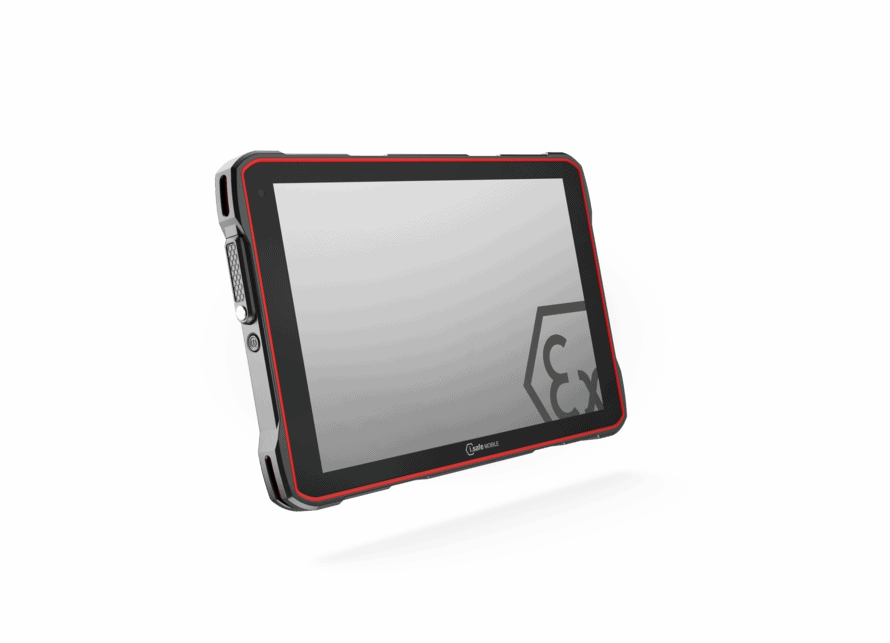

IS940.1 - Tech Solutions

Fitur Unggulan

Keunggulan Produk

Persetujuan & Sertifikasi

csm_LOG_ZUL_ATEX__SALL__AIN__V1_5c46efd86d
ATEX (Europe)
Approved

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

csm_LOG_ZUL_IECEx-Zulassung__SALL__AIN__V1_d87ccdfa51
IECEx (International)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

csm_LOG_ZUL_QPS-Zulassung__SALL__AIN__V1_f3369244dd
NEC500 (North America)
approved

Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T155 °C
Class III

csm_LOG_ZUL_i
IA (South Africa)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
csm_LOG_ZUL_PCEC_logo__SALL__AIN__V1_78ecb2c115
PCEC (China)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
csm_LOG_ZUL_INMETRO-Zulassung-Brasilien__SALL__AIN__V1_42452a948b
INMETRO (Brazil)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
csm_LOG_ZUL_CSA-Group_Logo__SALL__AIN__V1_647c15a407
Japan-Ex (Japan)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
csm_LOG_ZUL_Peso-Zulassung-Alternative__SALL__AIN__V1_b2897fe7da
PESO (India)
approved

Ex ib IIC T4 Gb

Aksesoris Produk

csm_PHO_PRO_COMP_MC930
Charging systems
IS-MC930.1 Multi Charger Set
Multi Charger for six devices. Size: 600 x 250 x 115 mm (L x W x H). Compatible for IS930.x, IS940.x, IS945.x and IS910.x.
Quick Start Manual
csm_PHO_PRO_FRO_X0200100_i.safe_PROTECTOR_2
Charging systems
i.safe PROTECTOR 2.0 USB-C Cable
For safe charging of the device via the type USB-C port.
csm_PHO_PRO_COMP_Leather_case_IS940
Leather Cases
Leather Case black IS940.x/IS945.x
Made of high quality leather, black. With adjustable Shoulder Strap and holder for a stylus. Suitable for the devices IS940.x and IS945.x.
csm_PHO_PRO_FRO_IS930
Leather Cases
Shoulder Strap 30 mm for Leather Case tablet
Made of durable blended fabric, adjustable.
csm_PHO_PRO_FRO_IS930
Leather Cases
4-point Harness System tablet
The carrying strap system, made of Teflon impregnated Cordura®, is designed for use with the new Leather Cases of the IS910.x, IS930.x, IS940.x and IS945.x devices. It ensures safe carrying in front of the body and consists of an ergonomic back harness with extra large contact areas on the shoulders. The strap adjustment options allow the working height and angle of inclination to be adjusted as required.
csm_PHO_PRO_FRO_IS-Stylus__SALL__AIN__V2_ee48c6f929
Others
IS-Stylus Set
Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.
csm_PHO_PRO_FRO_PanzerGlass_IS940x-IS945x__SALL__AIN__V1_d8f584dee3
Display protection foils
PanzerGlass™ IS940.x/IS945.x
Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.
csm_PHO_PRO_FRO_Datenblatt__SALL__AIN__V1_1828471f58
Service
Warranty Extension
With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.
Product information warranty extension
csm_PHO_PRO_COMP_IS-HDHS1B
Headsets
IS-HDHS1B.1 Headset Set (Neckband)
Comfortable, noise-insulating headset with outstanding features such as a comfortable fit thanks to the soft ear pads, first-class audio components, approx. 27 dB sound attenuation and a microphone with excellent noise cancellation. The helmet attachment can be selected depending on the helmet type.
Datasheet IS-HDHS1x.1-IS-PTTBxA.1
Safety Instructions IS-HDHS1x.1
Operating Manual IS-HDHS1x.1/IS-PTTBxA.1
csm_PHO_PRO_COMP_IS-HDHS1x
Headset
IS-HDHS1C.1 Headset Set (Helm Mount)
Comfortable, noise-insulating headset with outstanding features such as a comfortable fit thanks to the soft ear pads, first-class audio components, approx. 27 dB sound attenuation and a microphone with excellent noise cancellation. The helmet attachment can be selected depending on the helmet type.
Datasheet IS-HDHS1x.1, IS-PTTBxA.1
Safety Instructions IS-HDHS1x.1
Operating Manual IS-HDHS1x.1/IS-PTTBxA.1
csm_PHO_PRO_COMP_IS-PTTBxA
Item Title
IS-PTTB1A.1 PTT Button Set (16-pin)
The housing of the PTT button is made of impact-resistant, fibreglass-reinforced plastic and is ideally suited for robust use. Thanks to the splash water protection, it can also be used in a damp environment or in daily use in outdoor areas without any worries. There is a fastening clip on the back for attachment. The large, fluorescent transmit button allows safe operation even in hectic situations and the additional mountable protective ring prevents the button from being pressed accidentally.
Datasheet IS-HDHS1x.1/IS-PTTBxA.1
Operating Manual IS-HDHS1x.1/IS-PTTBxA.1
Safety Instructions IS-PTTBxA.1
csm_PHO_PRO_COMP_Leather_case_IS940
Leather Case

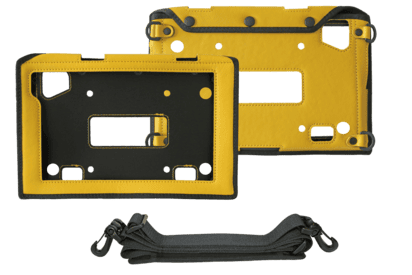

Leather Case yellow IS940.x/IS945.x
Made of high quality leather, yellow. With adjustable neck strap and holder for a stylus. Suitable for the devices IS940.x and IS945.x.
csm_PHO_PRO_COMP_Composing_vehicle_mount__SALL__AIN__V1_e5186b0a31
Carrying Sistems
Vehicle mount IS930.x/IS910.x/IS94x.x

The extremely stable and robust vehicle mount for the tablets of the IS940.x, IS945.x, IS930.x and IS910.x series  designed for the rough industrial use „heavy duty". With the two connecting arms of different lengths, it can be adapted to the different vehicle interiors.

Product information Vehicle Mount

Termasuk Dalam Paket

Spesifikasi Perangkat​

Operating system

Android™ 14

Processor

Qualcomm® QCM6490 Octa Core

Memory

8 GB RAM

128 GB internal memory

microSD card supported

Frequencies

4G LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 MFBI / B13 / B14 / B17 / B20 / B25 / B26 / B28A / B28B / B29 / B30 / B66 / B71 / B68

4G LTE-TDD: B38 / B39 / B40 / B41 / B42 / B43 / B48

5G NR: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n14 / n20 / n25 / n28 / n30 / n38 / n40 / n41 / n48 / n66 / n71 / n77 / n78 / n79

Dimensions

Size: 266,17 x 168,46 x 19,82 mm

Weight: 1059 g

Display

10,1″ (25,654 cm) Corning® Gorilla® Glass V3
usable with gloves

Battery

8160 mAh, 3,7 V
replaceable

Camera

50 MP AF rear

5 MP FF front

Connectivity

Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot

Bluetooth® 5.2

GPS, A-GPS, Glonass, Beidou, Galileo

Near Field Communication

Types of protection

IP68 dust-/waterproof\

MIL-STD 810H

Usable from -20 °C to +55 °C

Interfaces

USB-C

ISM interface

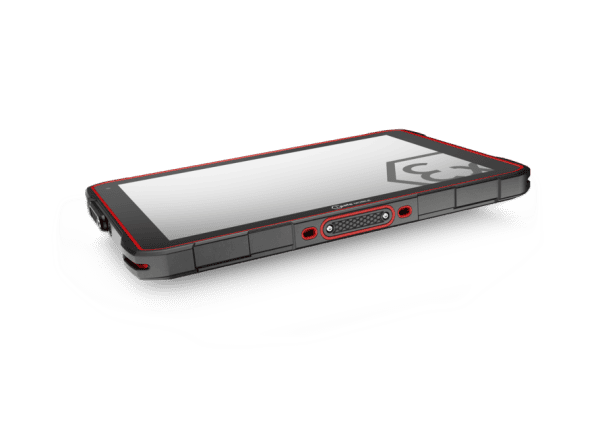

12-pin docking interface
