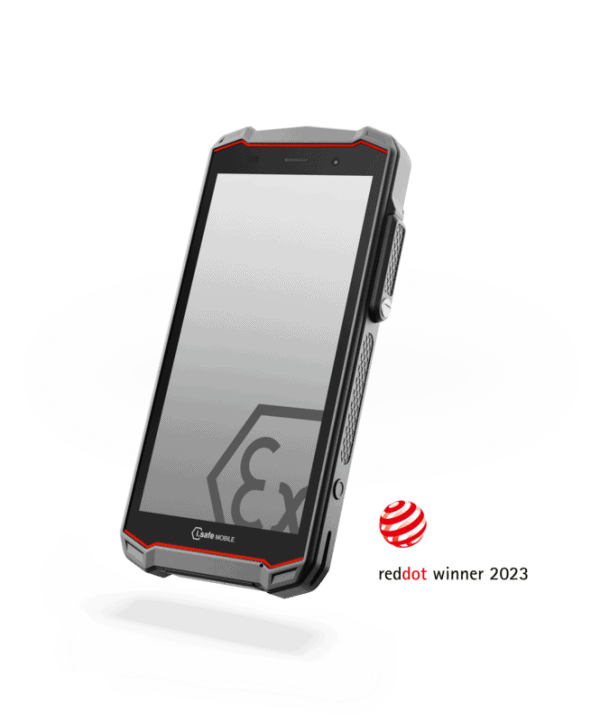

IS540.1 - Tech Solutions

Fitur Unggulan

Keunggulan Produk

Persetujuan & Sertifikasi

csm_LOG_ZUL_ATEX__SALL__AIN__V1_5c46efd86d
ATEX (Europe)
Approved

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

csm_LOG_ZUL_IECEx-Zulassung__SALL__AIN__V1_d87ccdfa51
IECEx (International)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

csm_LOG_ZUL_QPS-Zulassung__SALL__AIN__V1_f3369244dd
NEC500 (North America)
approved

Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135 °C
Class III

csm_LOG_ZUL_KCs-Security-Zulassung-Korea__SALL__AIN__V2_768e232214
KCs (South Korea)
approved

Ex ib IIC T4
Ex ib IIIC T135°C

csm_LOG_ZUL_INMETRO-Zulassung-Brasilien__SALL__AIN__V1_42452a948b
INMETRO (Brazil)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
csm_LOG_ZUL_TIIS-Logo__SALL__AIN__V1_11d38aeb27
TIIS (Japan)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
csm_LOG_ZUL_SABS_South_Africa_Zulassung__SALL__AIN__V1_7387d9ed86
IA (South Africa)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

csm_LOG_ZUL_Peso-Zulassung-Alternative__SALL__AIN__V1_b2897fe7da
PESO (India)
approved
Ex ib IIC T4 Gb

Aksesoris Produk

csm_PHO_PRO_COMP_IS540
Batteries

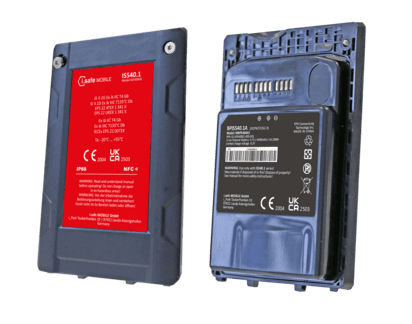

BPIS540.1A Battery

IS540.1 Li-ion battery 4400 mAh, Type BPIS540.1A, Size: 103,5 x 75,0 x 14,0 mm (L x W x H)

csm_PHO_PRO_COMP_IS-DC880
Charger Systems

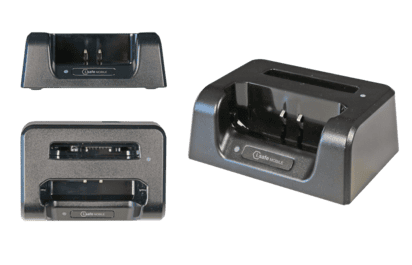

IS-DC540.1 Desktop Charger Set

Desktop charger for the IS540.x devices with a second charging slot for spare battery. Size: 114 x 80 x 54 mm (L x W x H)

Product information IS-DC440.1
Operating Manual/Safety Instructions IS-DC540.1
csm_PHO_PRO_COMP_IS-MC440
Charger Systems

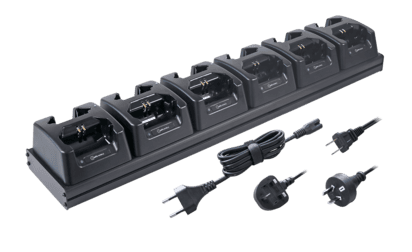

IS-MC540.1 Multi Charger Set

Multi charger for five devices, each with a second charging slot for spare batteries as well as power cable AU-C7, EU-C7, UK-C7 and US-C7. Size: 595 x 113 x 90 mm (L x W x H). Compatible for IS540.1 and IS540.2.

Product information IS-MC540.1
Operating Manual/Safety Instructions IS-MC540.x
csm_PHO_PRO_FRO_X0200100_i.safe_PROTECTOR_2
Charger Systems

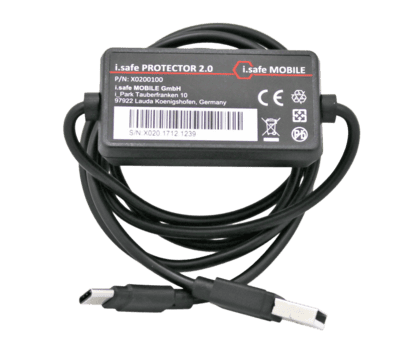

i.safe PROTECTOR 2.0 USB-C Cable

For safe charging of the device via the type USB-C port.

csm_PHO_PRO_COMP_IS-HDHS1B
Headsets

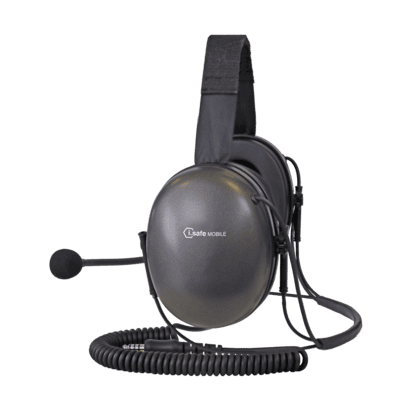

IS-HDHS1B.1 Headset Set (Neckband)

Comfortable, noise-insulating headset with outstanding features such as a pleasant wearing comfort thanks to the soft ear pads, first-class audio components, approx. 27 dB sound attenuation and a microphone with excellent noise cancellation. The robust design is also suitable for difficult environments and the textile headband allows helmets and bump caps to be worn.

Datasheet IS-HDHS1x.1/IS-PTTBxA.1
Safety Instructions IS-HDHS1x.1
Operating Manual IS-HDHS1x.1/IS-PTTBxA.1
csm_PHO_PRO_COMP_IS-HDHS1x
Headsets

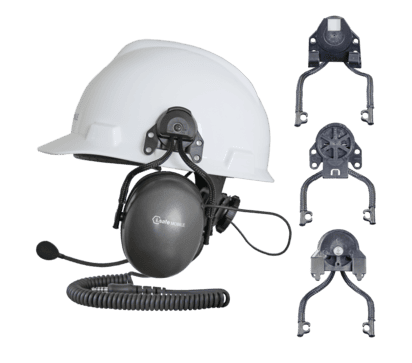

IS-HDHS1C.1 Headset Set (Helm Mount)

Comfortable, noise-insulating headset with outstanding features such as a comfortable fit thanks to the soft ear pads, first-class audio components, approx. 27 dB sound attenuation and a microphone with excellent noise cancellation. The helmet attachment can be selected depending on the helmet type.

Datasheet IS-HDHS1x.1/IS-PTTBxA.1
Safety Instructions IS-HDHS1x.1
Operating Manual IS-HDHS1x.1/IS-PTTBxA.1
csm_PHO_PRO_COMP_IS-PTTBxA
Headsets

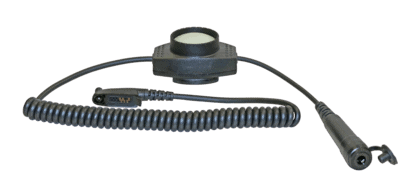

IS-PTTB1A.1 PTT Button Set (16-pin)

The housing of the PTT button is made of impact-resistant, fibreglass-reinforced plastic and is ideally suited for robust use. Thanks to the splash water protection, it can also be used in a damp environment or in daily use in outdoor areas without any worries. There is a fastening clip on the back for attachment. The large, fluorescent transmit button allows safe operation even in hectic situations and the additional mountable protective ring prevents the button from being pressed accidentally.

Datasheet IS-HDHS1x.1/IS-PTTBxA.1
Operating Manual IS-HDHS1x.1/IS-PTTBxA.1
Safety Instructions IS-PTTBxA.1
csm_PHO_PRO_FRO_Schallschlauch_01-00101091-2002-010__SALL__AIN__V1_7cd3d1b262
Others

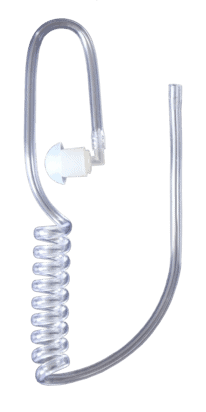

Acoustic Tube IS-HSx.x

Acoustic Tube for replacement when the headset is worn out. Suitable for IS-HS1.1 (13-pin), IS-HS2A.1 (16-pin), and IS-HS3A.1 (8-pin) Packaging unit 10 pieces.

csm_PHO_PRO_COMP_IS540
Carrying Systems
Belt Clip IS540.x

Plastic black, for a quick and safe attachment to the belt.

csm_PHO_PRO_COMP_IS540
Leather Cases

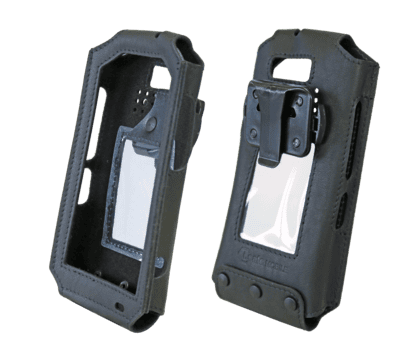

Leather Case black IS540.x

Made of high quality leather, black. With locking clip for quick attachment to the belt.

csm_PHO_PRO_COMP_IS540
Leather Cases
Leather Case yellow IS540.x

Made of high quality leather, yellow. With locking clip for quick attachment to the belt.

csm_PHO_PRO_COMP_Universaltasche_IS530.x-IS880
Leather Cases

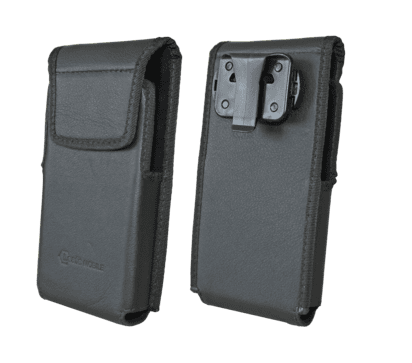

Leather Case universal IS540.x

Made of high quality leather, black with a durable Cordura lining. The leather bag has a magnetic closure. With locking clip for quick attachment to the belt. Suitable for the devices IS540.x.

csm_PHO_PRO_COMP_Belt_loop_composing__SALL__AIN__V1_2fd161a9b5
Leather Cases

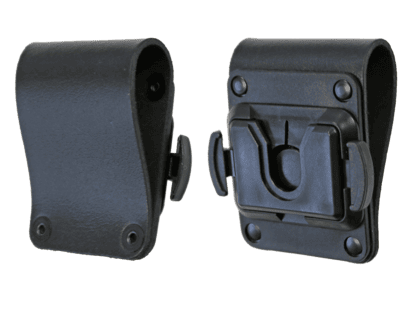

Leather Belt Loop for Leather Case

For an even more secure attachment of the leather case (e.g. offshore) to a toolbelt.

csm_PHO_PRO_FRO_Handschlaufe-Lanyard__SALL__AIN__V2_f1126e386d
Carrying Systems
Lanyard/Hand Strap Set

The set consists of the system adapter/fastening loop with push button connection (approx. 16 cm) as well as the tear-resistant, length-adjustable lanyard (adjustable approx. 48 to 66 cm) and the hand strap (adjustable approx. 20 to 25 cm). The hand strap and the lanyard can be easily detached from the system adapter and reattached by means of a pressure lock. The antistatic strap prevents the danger of electrostatic discharge and ignition of the explosive atmosphere. In addition, the lanyard is equipped with a safety lock at the neck, which opens as soon as it is pulled. The Lanyard/Handstrap Set is compatible with the following device series: IS120.x, IS320.1, IS330.x, IS530.x, IS540.x, IS725.2, IS-MP.x and IS-RSM1.1. Furthermore, the lanyard can be attached to the D-ring of the Leather Case.

csm_PHO_PRO_FRO_IS-Stylus__SALL__AIN__V2_ee48c6f929
Others
IS-Stylus Set

Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.

csm_PHO_PRO_FRO_Displayschutzfolie__SALL__AIN__V1_0209548ea3
Display Protection Foils

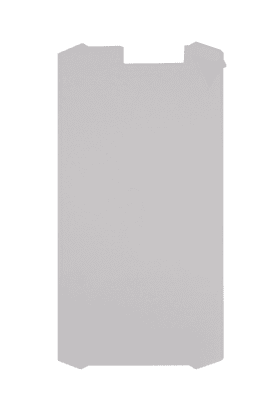

Display Protection Foil IS540.x (10 pcs)
Rugged plastic foil for an extended protection of the display.
csm_PHO_PRO_FRO_PanzerGlass_880
Display Protection Foils
PanzerGlassâ„¢ IS540.x
PanzerGlass® foil for an extended protection of the display. Suitable for the devices IS540.1, IS540.2, IS540.M1.
csm_PHO_PRO_FRO_Datenblatt__SALL__AIN__V1_1828471f58
Service

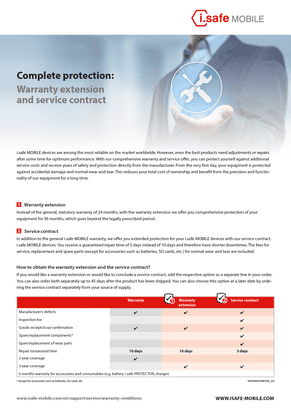

Warranty Extension
With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.
Product information warranty extension

Termasuk Dalam Paket

Spesifikasi Perangkat​

Operating system

Androidâ„¢ 14

Processor

Qualcomm® QCM6490 Octa Core

Memory

8 GB RAM

128 GB internal memory

microSD card supported

Frequencies

2G:

GSM 850 / 900 / 1800 / 1900 MHz

3G:

WCDMA B1 / B2 / B4 / B5 / B8

4G LTE-FDD:

B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 MFBI / B13 / B14 / B17 / B20 / B25 / B26 / B28 / B29 / B30 / B66 / B71

4G LTE-TDD:

B38 / B39 / B40 / B41 / B42 / B43 / B48

5G NR:

n1 / n2 / n3 / n5 / n7 / n8 / n12 / n14 / n20 / n25 / n28 / n30 / n38 / n40 / n41 / n48 / n66 / n71 / n77 / n78 / n79

Dimensions

Size: 180,0 x 84,9 x 20,6 mm

Weight: 422,0 g

Display

6,0″ (15,24 cm) Corning® Gorilla® Glass V3
usable with gloves

Battery

4400 mAh, 3,7 V
replaceable

Camera

48 MP AF rear

5 MP FF front

Connectivity

Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot

Bluetooth® 5.2

GPS, A-GPS, Glonass, Beidou, Galileo

Near Field Communication

Types of protection

IP68 dust-/waterproof

MIL-STD 810H

Usable from -20 °C to +55 °C

Interfaces

USB-C

charging contacts

ISM interface
