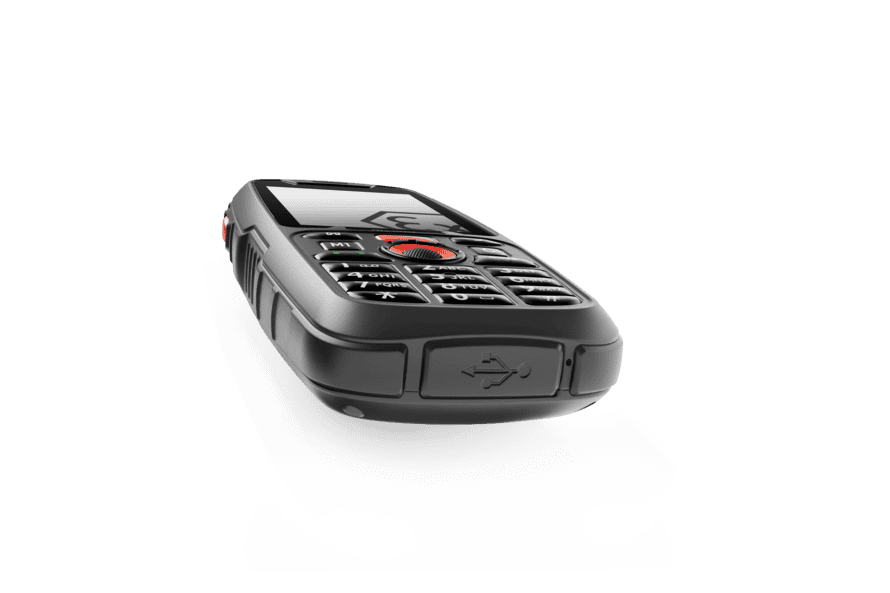

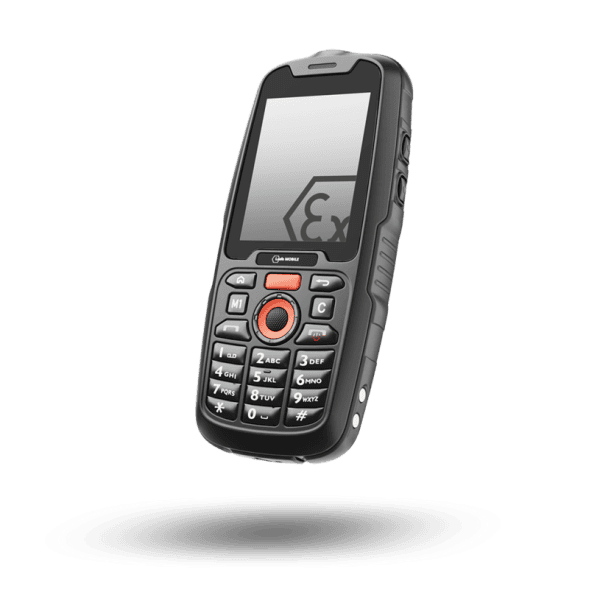

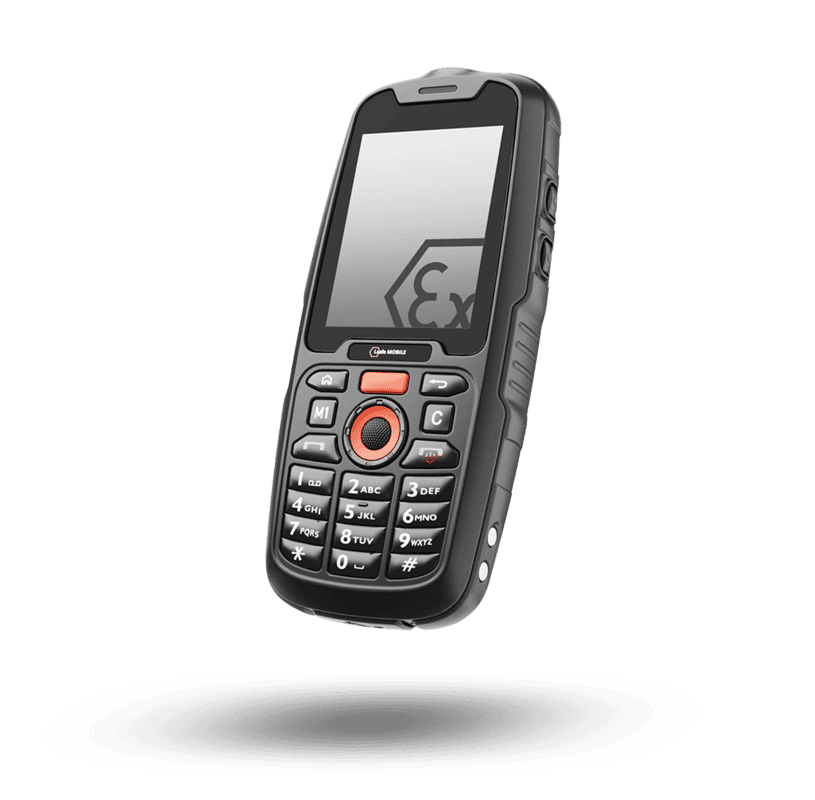

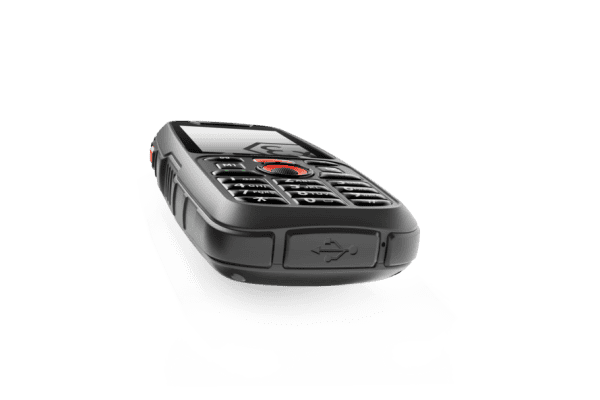

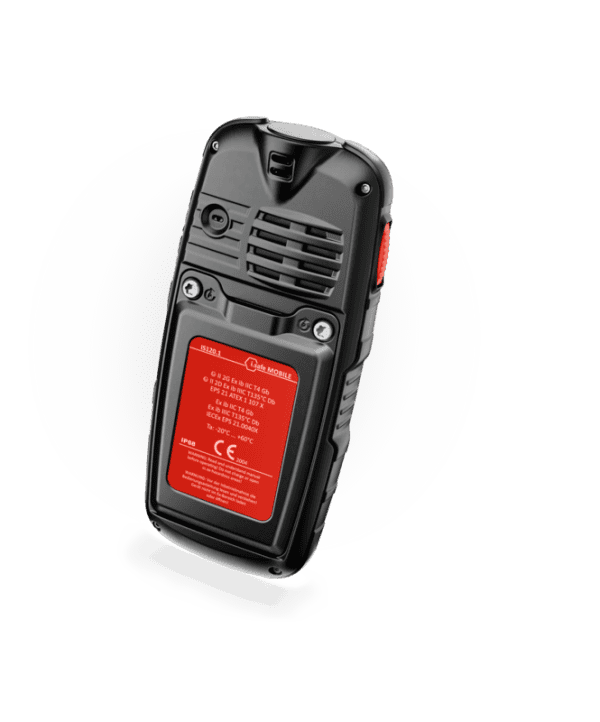

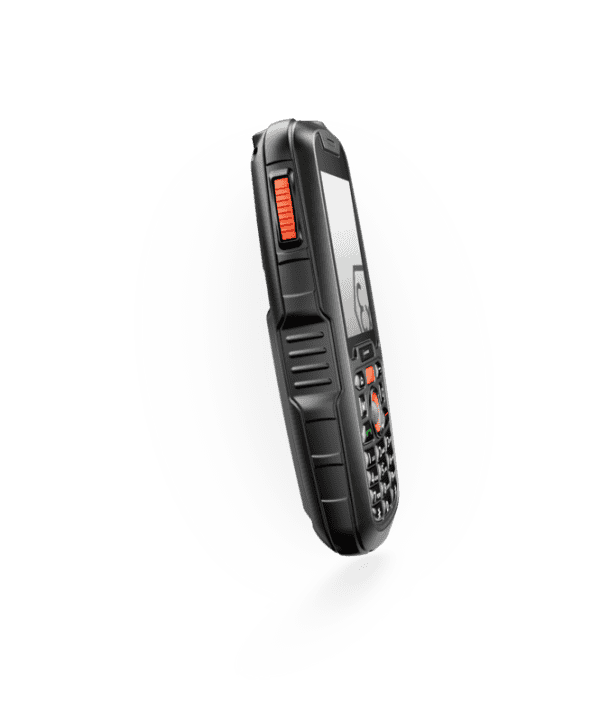

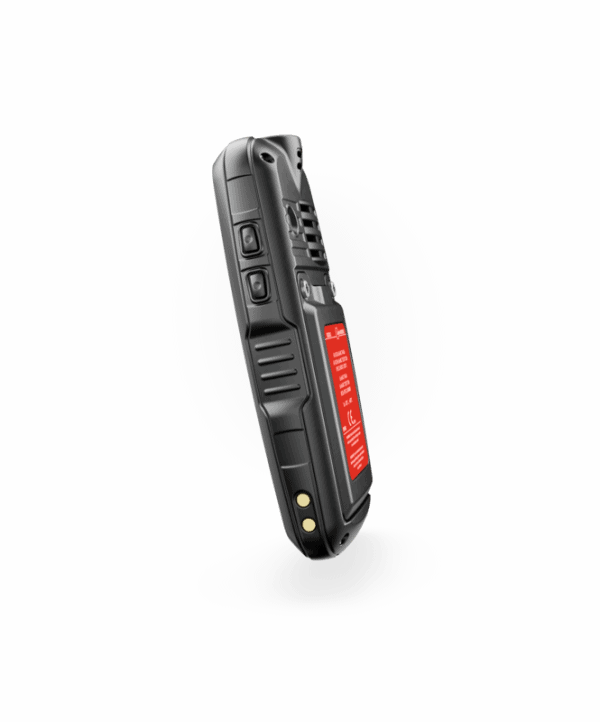

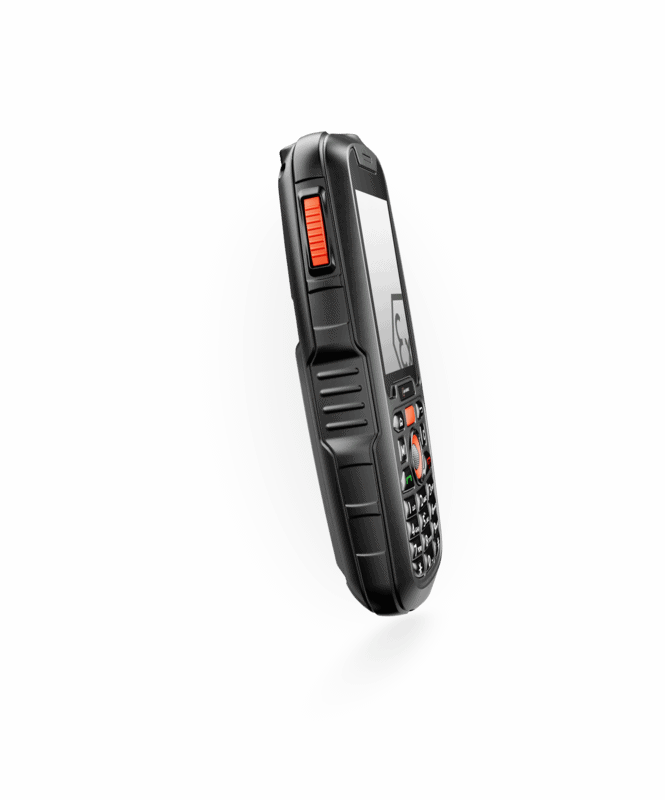

IS120.1 - Tech Solutions

Fitur Unggulan

Keunggulan Produk

Persetujuan & Sertifikasi

csm_LOG_ZUL_ATEX__SALL__AIN__V1_5c46efd86d
ATEX (Europe)
Approved

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

csm_LOG_ZUL_UKCA__SALL__AIN__V1_44aa236928
UKEX (United Kingdom)
approved
II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db
csm_LOG_ZUL_IECEx-Zulassung__SALL__AIN__V1_d87ccdfa51
IECEx (International)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

csm_LOG_ZUL_INMETRO-Zulassung-Brasilien__SALL__AIN__V1_42452a948b
INMETRO (Brazil)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

Aksesoris Produk

csm_PHO_PRO_COMP_IS120
Batteries

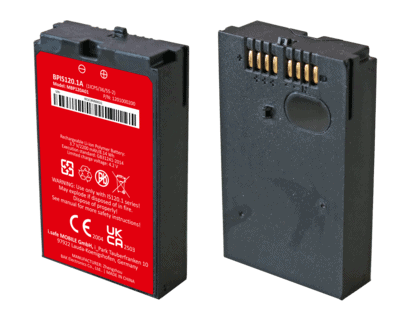

BPIS120.1A Battery
IS120.1 Li-ion battery 2200 mAh, Typ BPIS120.1A, Size 65 x 40,0 x 13,5 mm (L x W x H)
csm_PHO_PRO_COMP_DC120
Charging Systems

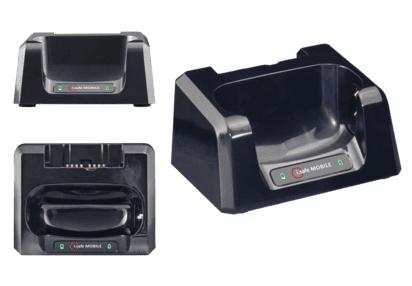

IS-DC120.1 Desktop Charger Set

Desktop charger for IS120.1 and IS120.2 with a second charging slot for spare battery. Size: 79,82 x 62,13 x 40,73 mm (L x W x H)

Operating Manual/Safety Instructions IS-DC120.1
csm_PHO_PRO_FRO_X0200100_i.safe_PROTECTOR_2
Charging Systems

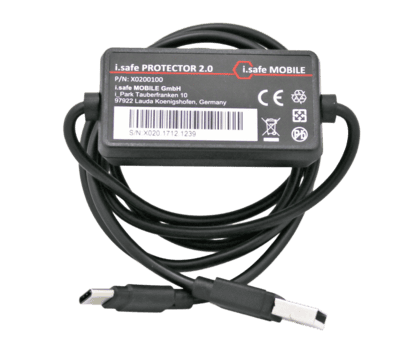

i.safe PROTECTOR 2.0 USB-C Cable
For safe charging of the device via the type USB-C port.
csm_PHO_PRO_COMP_IS310-320-beltclip-composing__SALL__AIN__V1_b64dbbb301
Carrying Systems
Belt Clip IS120.1/IS320.1/IS310.2
Plastic black, for a quick and safe attachment to the belt. Suitable for the devices IS120.x, IS320.1 and IS310.2.
csm_PHO_PRO_COMP_IS120

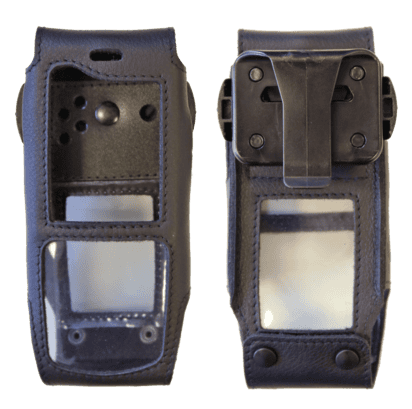

Leather Cases
Leather Case black IS120.x

Made of high quality leather, black. With locking clip for quick attachment to the belt.

csm_PHO_PRO_COMP_IS120
Leather Cases

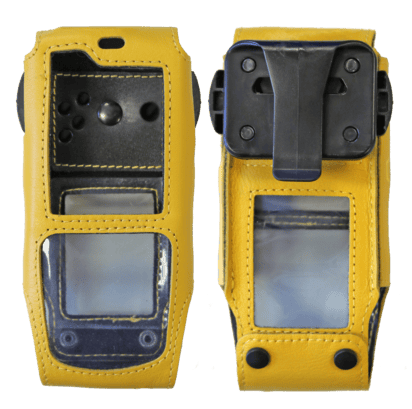

Leather Case yellow IS120.x

Made of high quality leather, yellow. With locking clip for quick attachment to the belt.

csm_PHO_PRO_COMP_Universaltasche_IS540
Leather Cases
Leather Case univ IS120.x/IS360.2/IS725.2
Made of high quality leather, black with a durable Cordura lining. The leather bag has a magnetic closure. With locking clip for quick attachment to the belt. Suitable for the devices IS120.x/IS360.2/IS725.2.
csm_PHO_PRO_COMP_Belt_loop_composing__SALL__AIN__V1_2fd161a9b5
Leather Cases
Leather Belt Loop for Leather Case
For an even more secure attachment of the leather case (e.g. offshore) to a toolbelt.
csm_PHO_PRO_FRO_Handschlaufe-Lanyard__SALL__AIN__V2_f1126e386d
Carrying Systems
Lanyard/Hand Strap Set
The set consists of the system adapter/fastening loop with push button connection (approx. 16 cm) as well as the tear-resistant, length-adjustable lanyard (adjustable approx. 48 to 66 cm) and the hand strap (adjustable approx. 20 to 25 cm). The hand strap and the lanyard can be easily detached from the system adapter and reattached by means of a pressure lock. The antistatic strap prevents the danger of electrostatic discharge and ignition of the explosive atmosphere. In addition, the lanyard is equipped with a safety lock at the neck, which opens as soon as it is pulled. The Lanyard/Handstrap Set is compatible with the following device series: IS120.x, IS320.1, IS330.x, IS530.x, IS540.x, IS725.2, IS-MP.x and IS-RSM1.1. Furthermore, the lanyard can be attached to the D-ring of the Leather Case.
csm_PHO_PRO_FRO_IS310-IS320-Schutzfolie__SALL__AIN__V3_94e63c5b5c
Display Protection Foils
Display Protection Foil IS120.x/IS380.x (10 pcs)
Rugged plastic foil for an extended protection of the display. Suitable for the devices IS120.x, IS320.1 and IS310.2.
csm_PHO_PRO_FRO_Datenblatt__SALL__AIN__V1_1828471f58
Service
Warranty Extension
With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.
Product information warranty extension

Spesifikasi Perangkat​

Operating system

ISM-OS 11

Processor

Mediatek MT6761D

Quad Core

Memory

2 GB RAM

16 GB internal memory

Frequencies

2G GSM 850/900/1800/1900 MHz

3G WCDMA B1/2/4/5/8

4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28

4G LTE-TDD: B39/B40/B41

4G LTE-TD: B34/B38

Dimensions

Size: 139,2 x 63,2 x 25,7 mm

Weight: 214,0 g

Display

2,4″ (6,096 cm)

Battery

2200 mAh, 3,7 V
replaceable

Connectivity

Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac with hotspot

Bluetooth® 5

Types of protection

IP68 dust-/waterproof

MIL-STD 810H

Usable from -20 °C to +60 °C

Interfaces

USB-C

charging contacts
