Keunggulan Produk

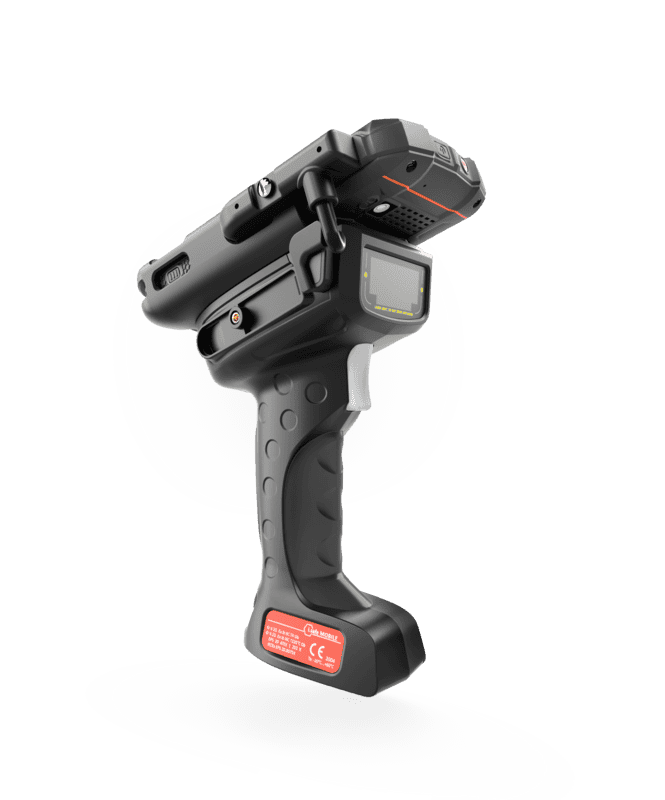

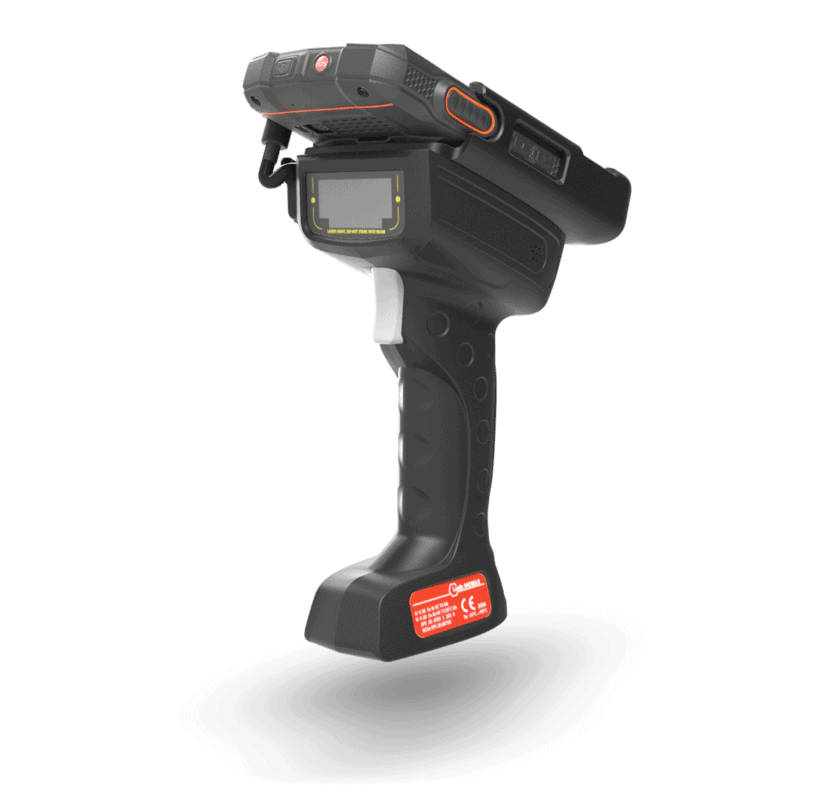

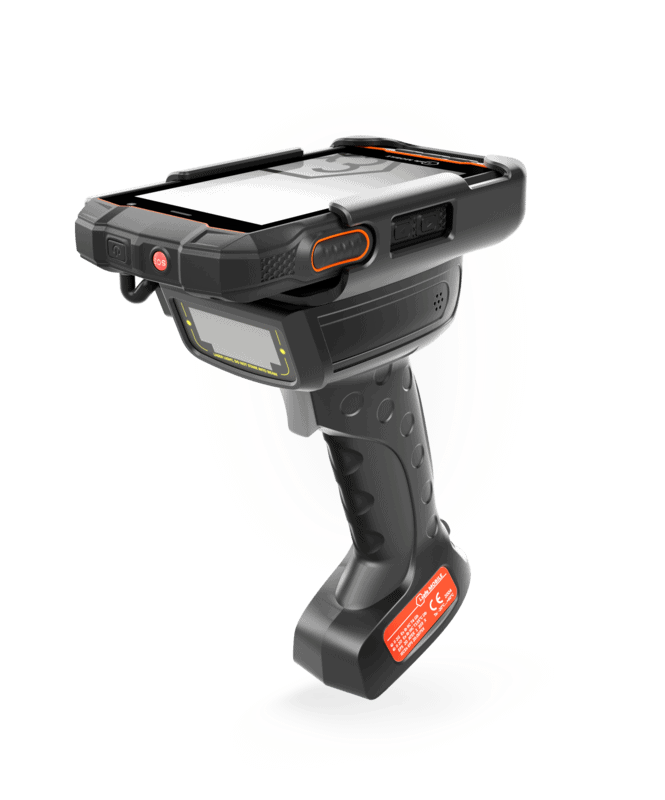

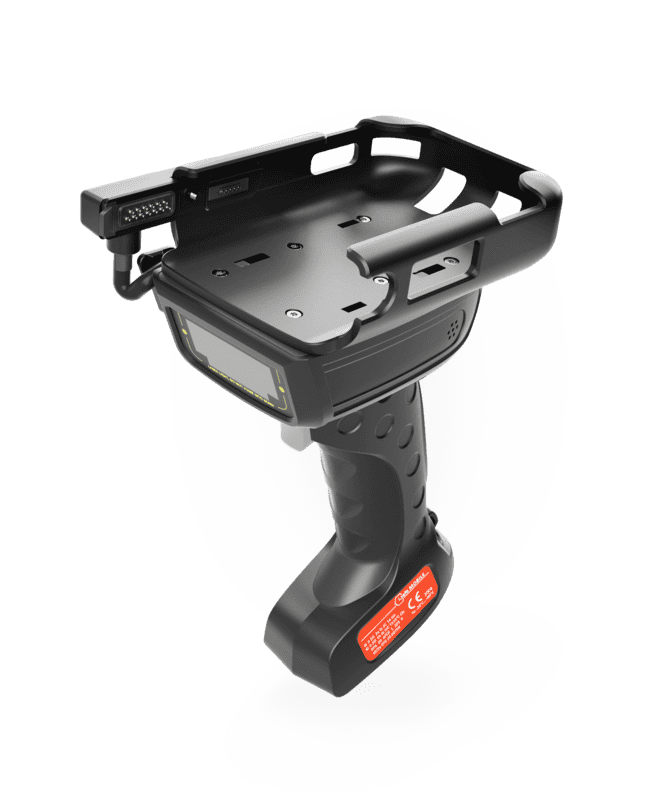

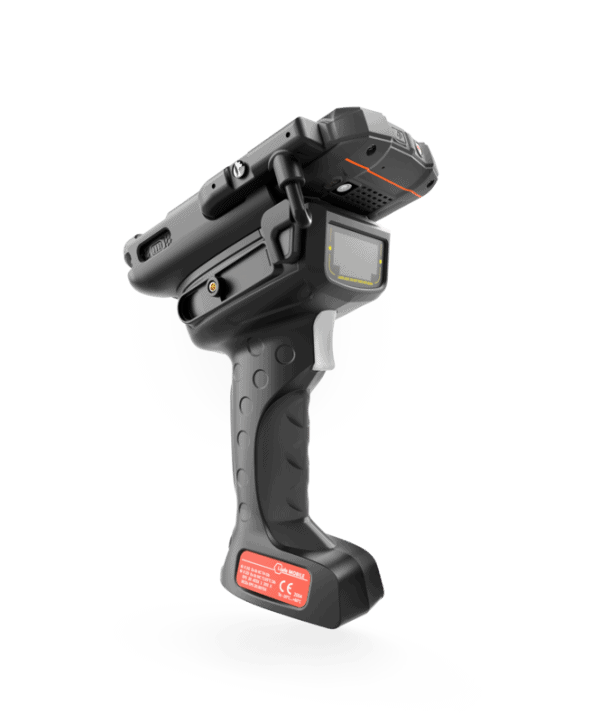

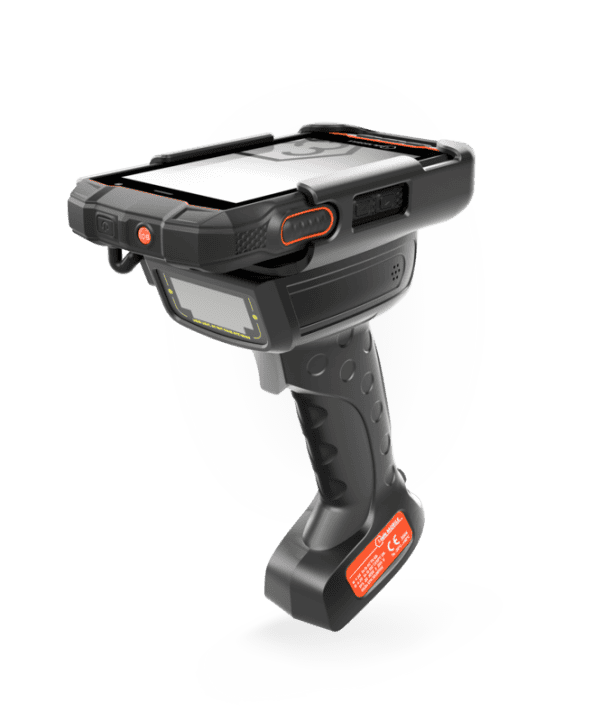

- IS-TH2ER.1 memungkinkan pemindaian hingga jarak 12 meter, ideal untuk aplikasi di gudang tinggi dan area produksi besar.
- Teknologi PRZM Intelligent Imaging dan penunjuk hijau mengoptimalkan pemindaian barcode bahkan di lingkungan yang sulit.
- Transfer data langsung melalui antarmuka multifungsi (ISM).
- Koneksi antarmuka langsung dengan perangkat, tanpa memerlukan Bluetooth®
- Pemasokan daya melalui perangkat yang terhubung, sehingga tidak memerlukan baterai
Persetujuan & Sertifikasi
ATEX (Europe)
Approved
II 2G Ex ib op is IIC T4 Gb
II 2D Ex ib op is IIIC T135°C Db
IECEx (International)
approved
Ex ib op is IIC T4 Gb
Ex ib op is IIIC T135°C Db
NEC500 (North America)
approved
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1
IA (South Africa)
approved
Ex ib op is IIC T4 Gb
Ex ib op is IIIC T135°C Db
Ex ib op is IIIC T135°C Db
PCEC (China)
approved
Ex ib op is IIC T4 Gb
Ex ib op is IIIC T135°C Db
Ex ib op is IIIC T135°C Db
Aksesoris Produk
Charging systems
IS-DCTH1.1 Desktop Charger Set
Charging systems
Desktop Charger for simultaneous charging of five IS530.x/IS540.x used in the Trigger Handle. This enables convenient charging without removing the smartphone from the trigger handle. The chargers have a charging indicator. Size: 654 x 165 x 90 mm (L x W x H). Compatible with IS-TH1xx.x series.
Leather Cases
Holster black for Trigger Handle IS-TH2ER.x
Service
Warranty Extension
Termasuk Dalam Paket
- Trigger Handle
- Safety Instructions
- Lanyard
- Screwdriver
Spesifikasi Perangkat
Scan type options
ER (extended range)
Scan Engine
Zebra SE 55
Working Range
~5,6 cm bis ~12 m
Dimensions
Size: 192,3 x 95,84 x 146 mm
Weight: 370 g
Types of protection
IP68 dust-/waterproof
MIL-STD 810H
Usable from -20 °C to +55 °C
Sensor resolution
2688 x 1520 pixel
Interfaces
charging contacts
