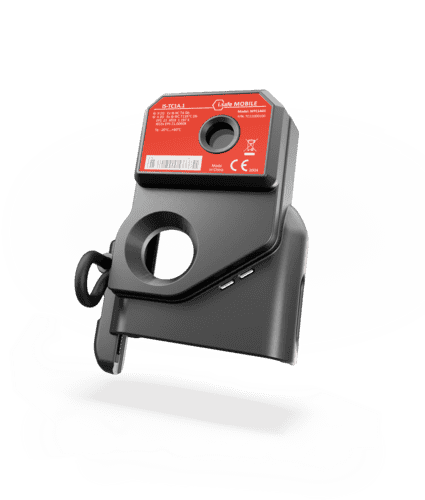

IS-TC1A.1 - Gambar 3

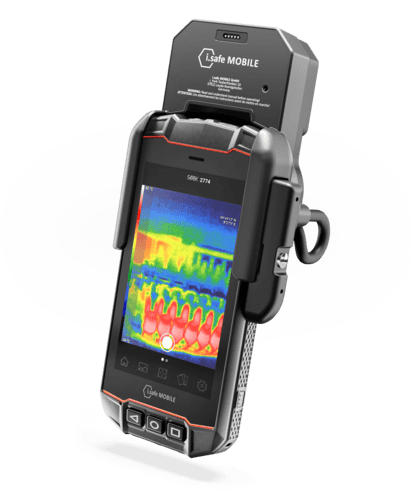

IS-TC1A.1 - Gambar 4

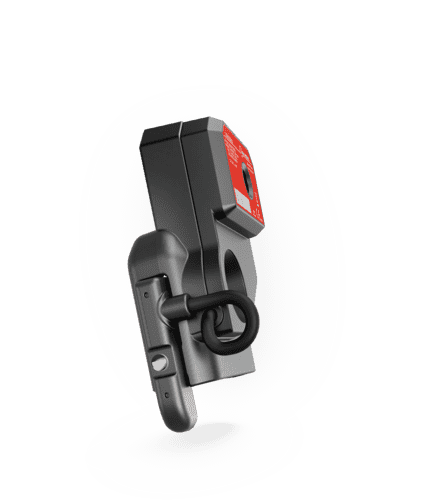

IS-TC1A.1 - Gambar 5

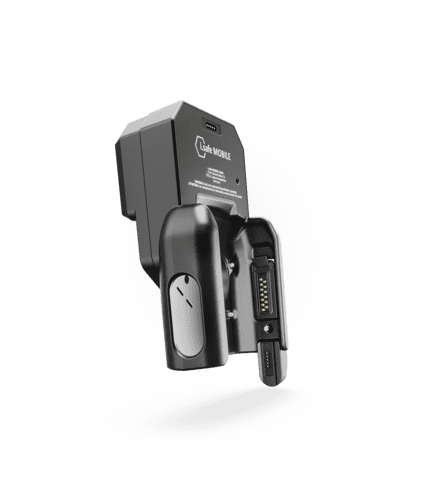

IS-TC1A.1 - Gambar 6

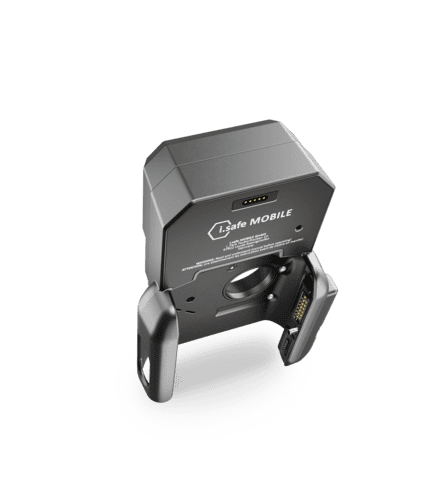

IS-TC1A.1 - Gambar 7
IS-TC1A.1 - Gambar 8

IS-TC1A.1

Add-on Zone 1/21
Kamera termal IS-TC1A.1, ketika dipasangkan dengan smartphone industri IS530.1, dapat mendeteksi suhu di area berbahaya Ex dari -40 °C hingga 330 °C hanya dalam hitungan detik melalui aplikasi Seek Thermal. Gambar dan video termal diproses serta didokumentasikan langsung melalui antarmuka ISM pada smartphone IS530
informasi pemesanan
Request Demo
Datasheet - IS-TC1A.1
Operating Manual Safety Instructions IS-TC1A.1
NEC IS-TC1A.1
INMETRO IS-TC1A.1
DoC IS-TC1A.1

Fitur Unggulan

Sumber daya listrik lewat perangkat mobile yang terhubung.
Download Datasheet

Keunggulan Produk

  • Mengambil, menganalisis, dan mendokumentasikan gambar termal
  • Transfer data langsung melalui antarmuka multifungsi (ISM)
  • Koneksi langsung ke perangkat tanpa memerlukan Bluetooth®

Persetujuan & Sertifikasi

csm_LOG_ZUL_ATEX__SALL__AIN__V1_5c46efd86d
ATEX (Europe)
Approved

II 2G Ex ib IIC T4 Gb
II 2D Ex ib  IIIC T135°C Db

csm_LOG_ZUL_IECEx-Zulassung__SALL__AIN__V1_d87ccdfa51
IECEx (International)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

csm_LOG_ZUL_CSA-Group_Logo__SALL__AIN__V1_647c15a407
NEC500 (North America) approved
approved
Class I, Div 1, Groups A,B,C,D, T4
Class II, Div 1, Groups E,F,G, T135C
Class III Div. 1
csm_LOG_ZUL_INMETRO-Zulassung-Brasilien__SALL__AIN__V1_42452a948b
INMETRO (Brazil) approved
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

Aksesoris Produk

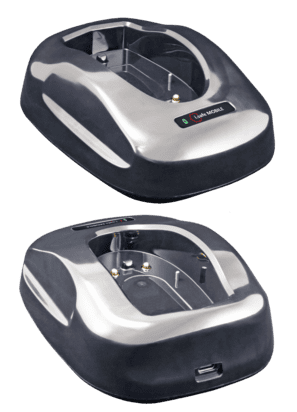

csm_PHO_PRO_COMP_IS-DCTH1
Charging systems
IS-DCTH1.1 Desktop Charger Set
Desktop charging station for charging the IS530.x and IS540.x inserted in the trigger handle. This enables convenientcharging without removing the smartphone from the trigger handle. The Desktop Charger has a charging indicator. Size: 140 x 105 x 50 mm (L x W x H).
Manual IS-DCTH1.1
Product information IS-DCTH1.1
csm_PHO_PRO_COMP_IS-MCTH1
Charging systems

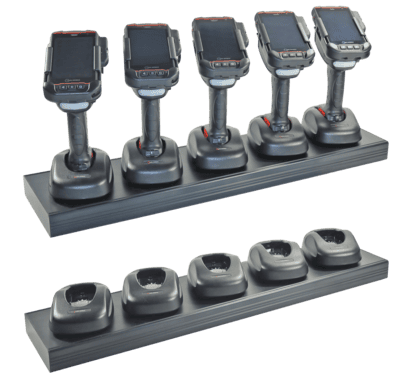

Desktop Charger for simultaneous charging of five IS530.x/IS540.x used in the Trigger Handle. This enables convenient charging without removing the smartphone from the trigger handle. The chargers have a charging indicator. Size: 654 x 165 x 90 mm (L x W x H). Compatible with IS-TH1xx.x series.
The rugged bag is made of anti-static blended fabric and has a sturdy leather belt pouch on both sides. This allows the Trigger Handle to be carried by both left- and right-handed users. It is easily and quickly attached to the belt by means of press studs. Size: 11,5 x 8 x 19,5 cm (LxWxH).
Manual IS-MCTH1.1

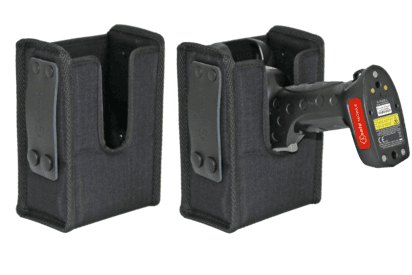

csm_PHO_PRO_COMP_IS-TH2ER
Leather Cases
Holster black for Trigger Handle IS-TH2ER.x
The rugged bag is made of anti-static blended fabric and has a sturdy leather belt pouch on both sides. This allows the Trigger Handle to be carried by both left- and right-handed users. It is easily and quickly attached to the belt by means of press studs. Size: 11,5 x 8 x 19,5 cm (LxWxH).
Product information IS-TH2ER.x holster
csm_PHO_PRO_FRO_Datenblatt__SALL__AIN__V1_1828471f58
Service
Warranty Extension
With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.
Product information IS-TH2ER.x holster

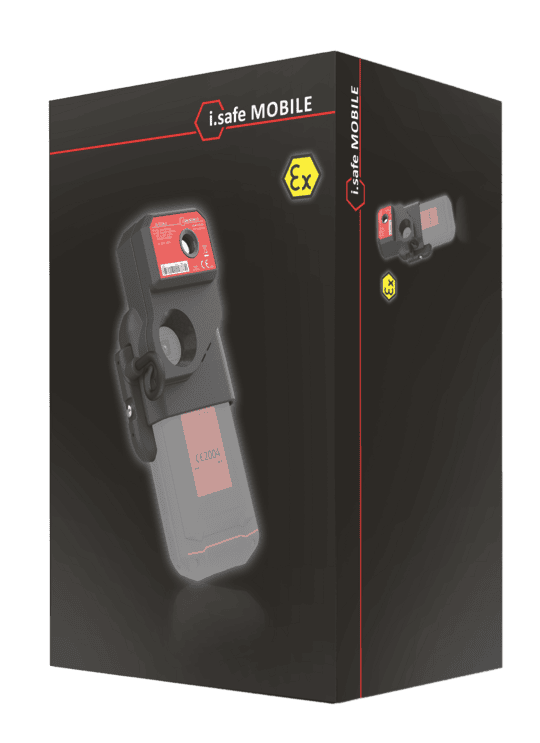

Termasuk Dalam Paket

  • Thermal camera
  • Quick Start Manual
  • Safety Instructions

Spesifikasi Perangkat​

Sensor resolution

200 (h) x 150 (v)

30000 pixel

FixFocus

Digital zoom via App

Sensor sensitivity

65 mK (typical)

Frame rate

<9 Hz bis 32 Hz

Scene dynamic range

-40 °C bis 330 °C

Temperature accuracy

±7 °C and 7 % (at 5 °C to 140 °C)

±10 °C and 10 % (at 140 °C to 330 °C)

Field of view

35° (HFOV)

26° (VFOV)

Detection range

up to 300 m

Recognition range

up to 75 m

Identification range

up to 25 m

Dimensions

Size: 112,0 x 82,0 x 50 mm

Weight: 195 g

Types of protection

IP68 dust-/waterproof

MIL-STD 810H

Usable from -20 °C to +55 °C
